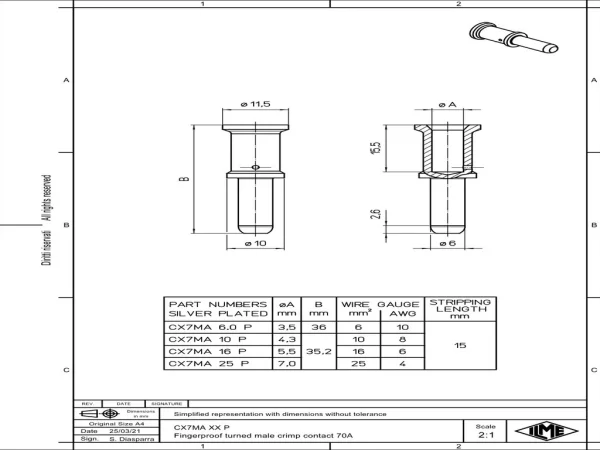

male contact, 16mm², silver, crimp, 70A, series CX7, IP2X IPXXB, for modul CX 02 7M
CX7MA 16 P
Specificaties
General characteristics
| Connection type | Turned crimp |
|---|---|
| Contact type (gender) | Male |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Min. Cross section | 16 mm² |
| Max. Cross section | 16 mm² |
| AWG size | 6 - 5 |
| Diameter male contact | 6 mm |
| Wire strip length | 15 mm |
Electrical parameters
| Max. rated current | 70 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Silver |
