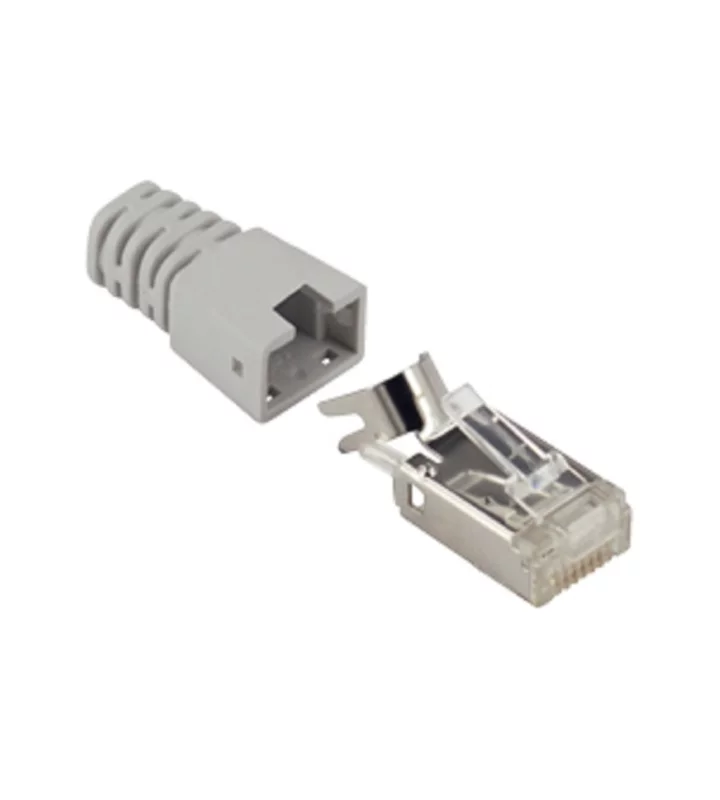

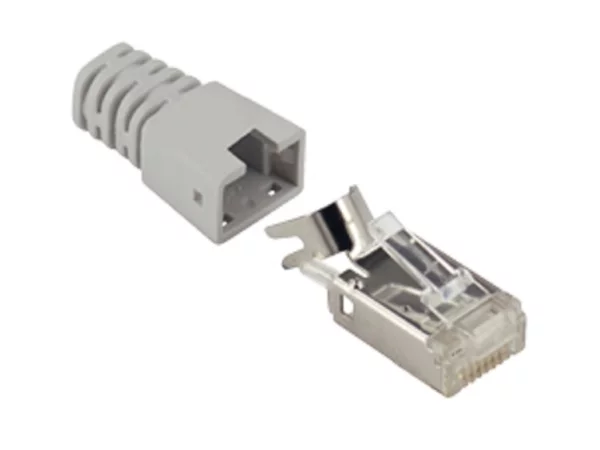

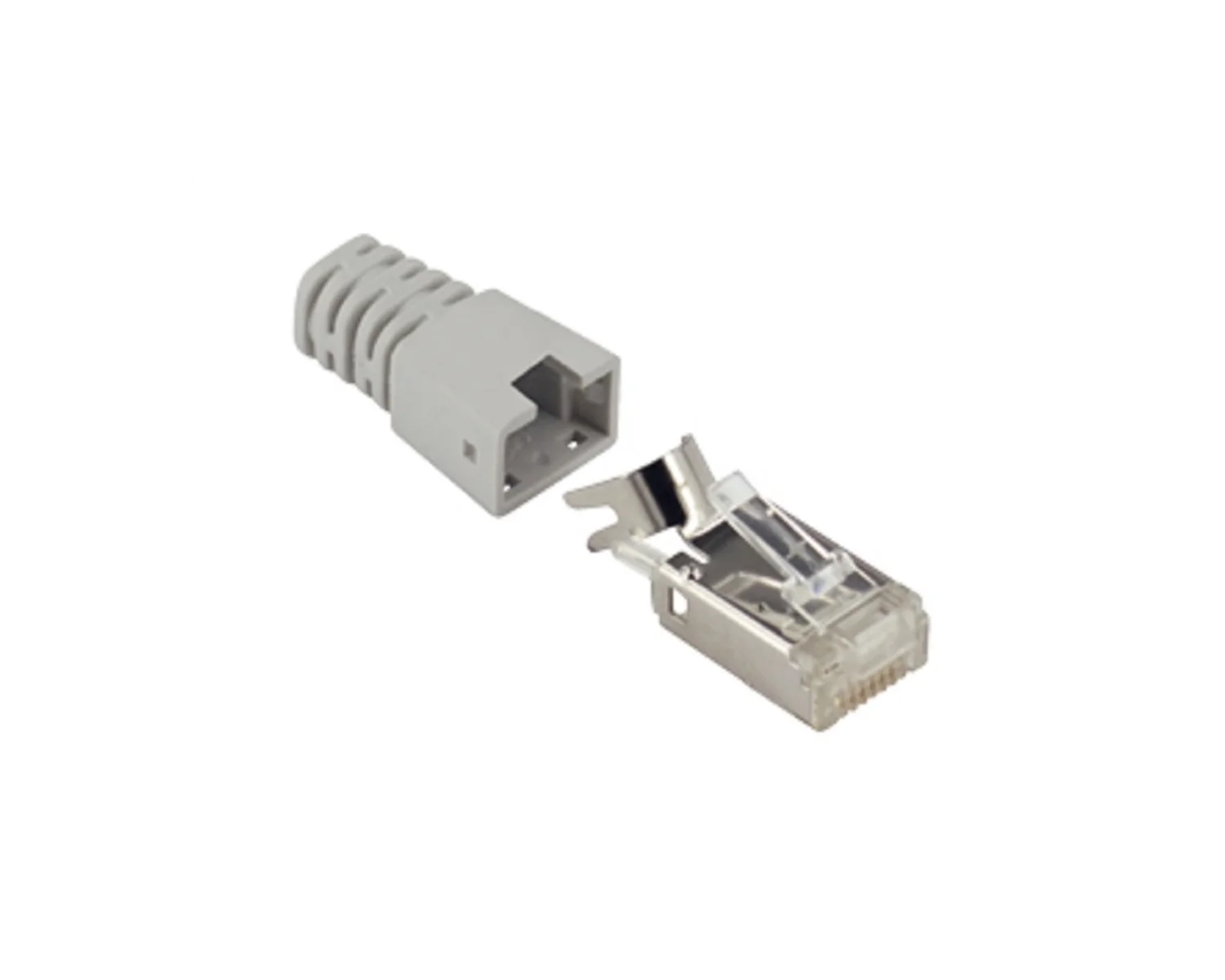

male insert, MIXO, 8p, crimp, 1A, 50V, RJ45
CX 8 J6M
Specificaties
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Data |
| Number of contacts | 8 |
| Connection type | RJ45 |
| Gender | Male |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| Category | 6A (IEC) |
| Extra information | Screened,Special tool necessary,Suitable for round cable,Suitable for solid core |
| Remark 2 | To be used with CX 01 J8M |
Electrical parameters
| Max. rated current | 1 A |
|---|---|
| Nominal rated voltage | 50 V |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
