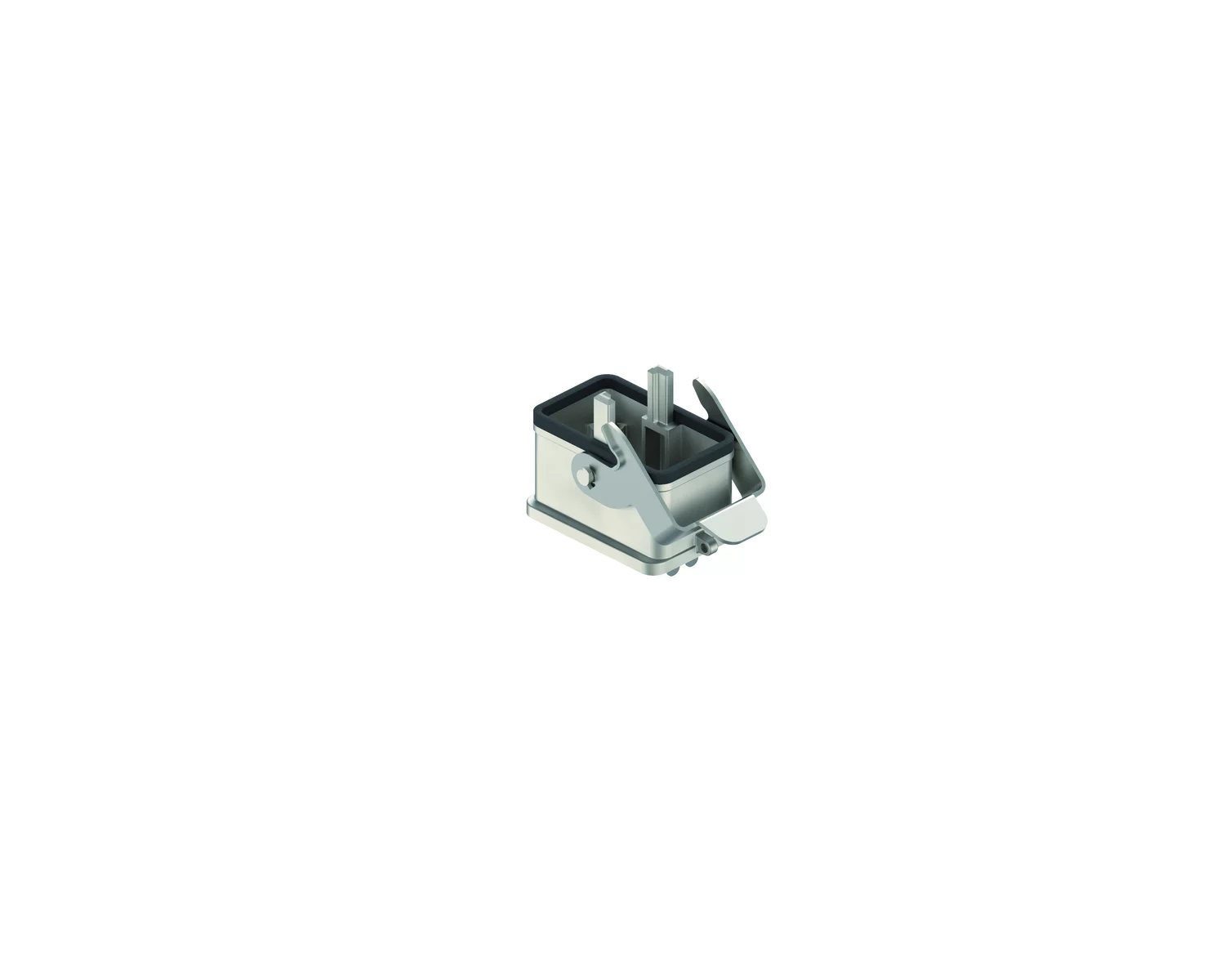

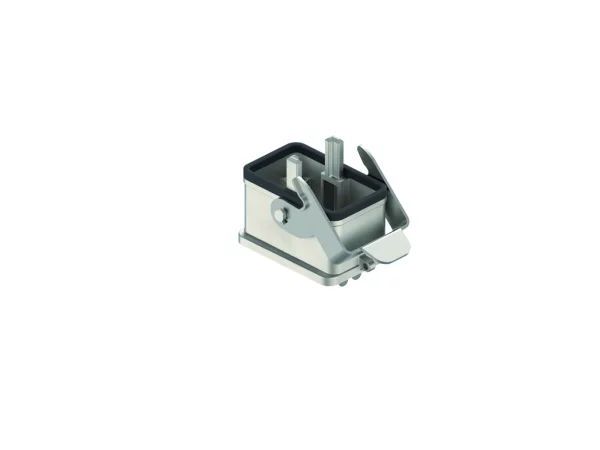

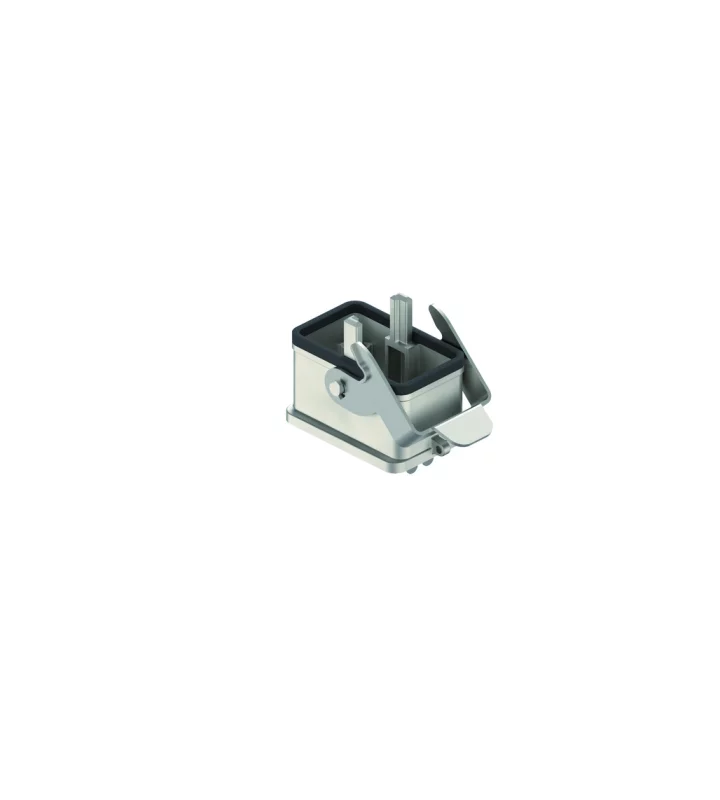

bulkhead mounting housing, MIXO ONE, alu, 1 rigid lever stainless steel
MIXO ONE
CXA 01 I
Stel je connector verder samen
Voeg de gewenste accessories en mixo modular inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Number of slots | 1 |
|---|---|
| Frame type | Enclosure with build-in frame |
| Enclosure series | MIXO ONE |
| Enclosure type | Bulkhead mounting housing |
| Closing type | With 1 lever |
| Cable entry type | without cable entry |
| Protection degree | IP65 |
| Locking mechanism | Single locking lever |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Height | 28.7 mm |
| Length | 48 mm |
| Width | 36.3 mm |
| Position cable feed | Without cable entry |
Material
| Coating housing | Nickel plating |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V2 |
| Material housing | Die cast aluminium alloy |
