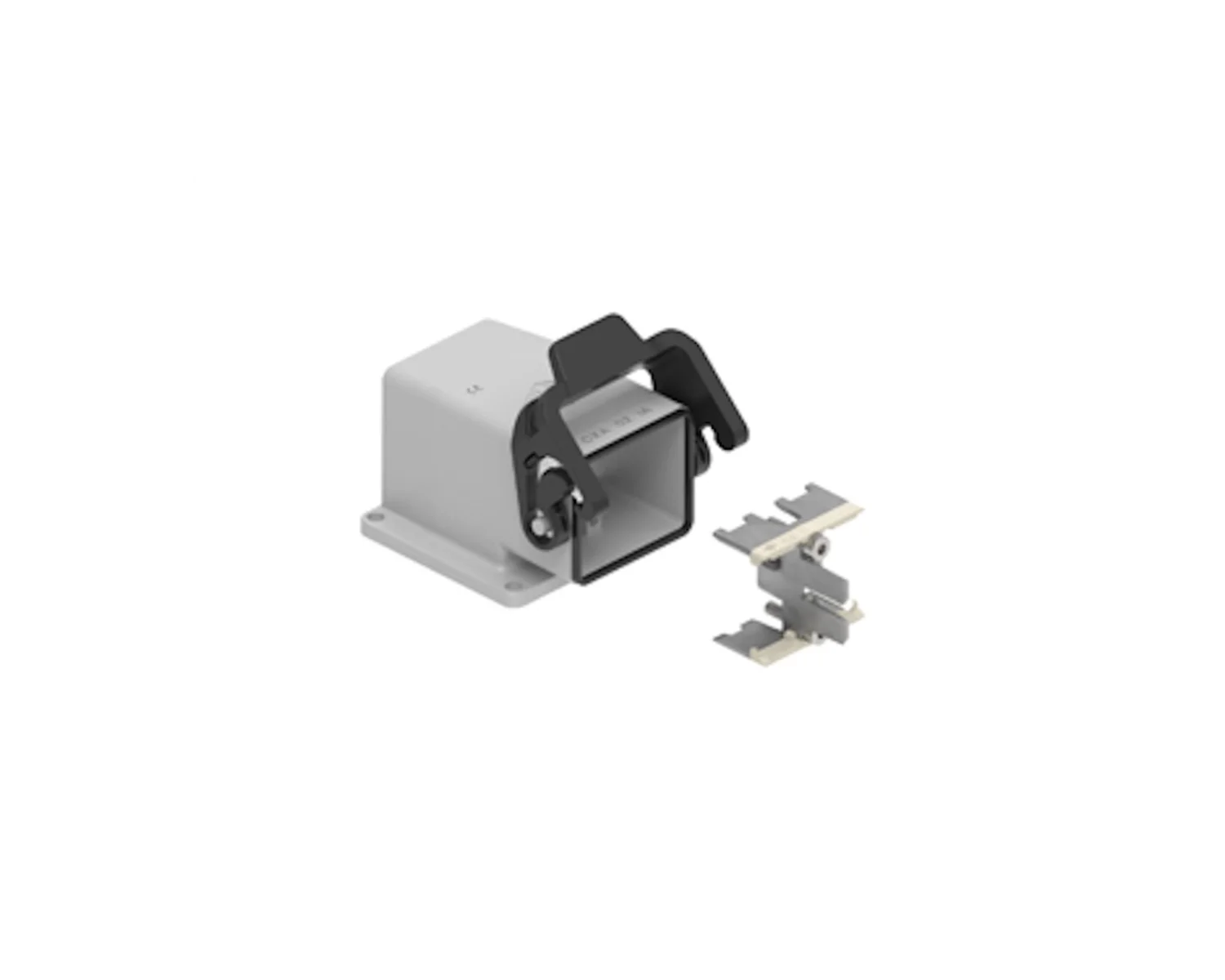

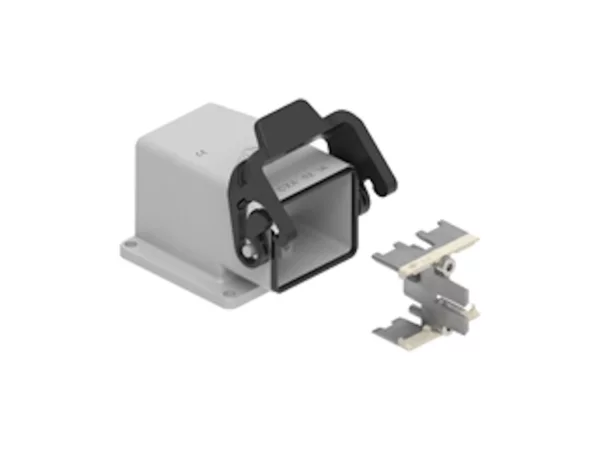

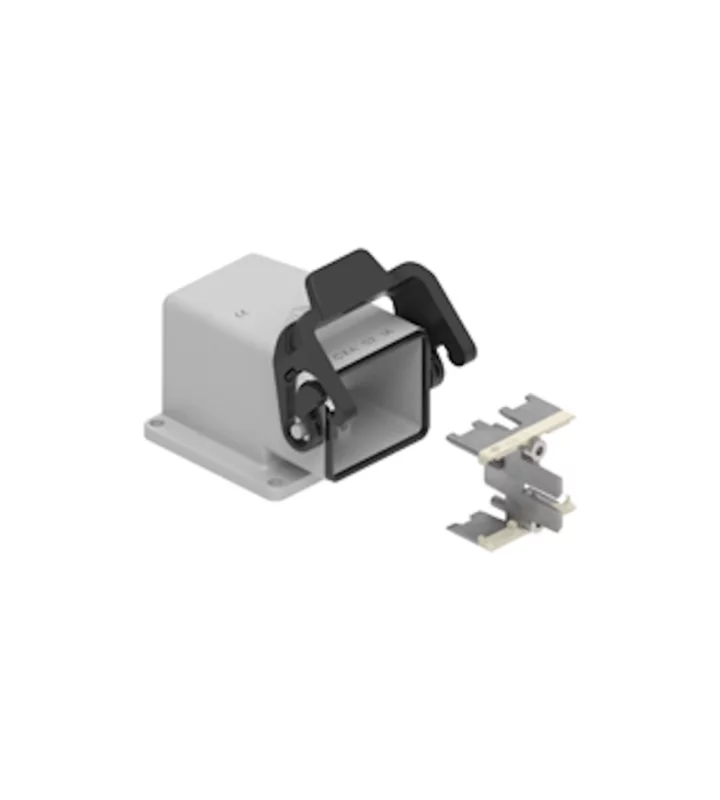

bulkhead mounting housing, angled, 2 modules, MIXO TWO zinc, 1 lever
MIXO TWO
CXA 02 IA
Stel je connector verder samen
Voeg de gewenste accessories en mixo modular inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Number of slots | 2 |
|---|---|
| Frame type | Enclosure with build-in frame |
| Enclosure series | MIXO TWO |
| Enclosure type | Angled bulkhead mounting housing |
| Closing type | With 1 lever |
| Cable entry type | without cable entry |
| Protection degree | IP65 |
| Locking mechanism | Single locking lever |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Height | 75.8 mm |
| Length | 76 mm |
| Width | 60 mm |
| Position cable feed | Without cable entry |
Material
| Material housing | Zinc die-cast |
|---|
