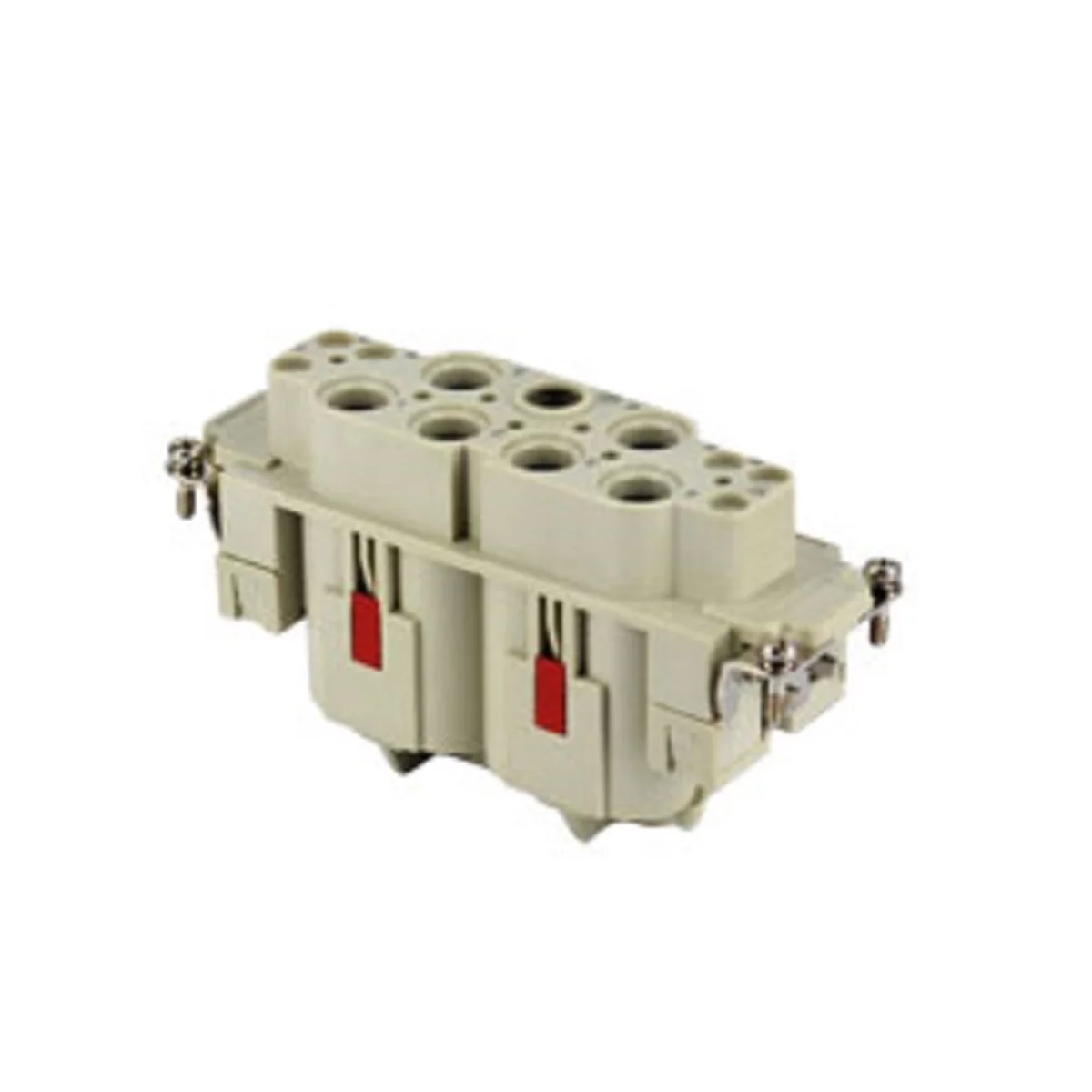

female insert, size 104.27, 6+6p+PE, crimp, 100+16A, 690+400V
CXF 6/6
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CX |
| Number of contacts | 6 + 6 + PE |
| Number of poles | 6 + 6 |
| Connection type | Crimp connection |
| Gender | Female |

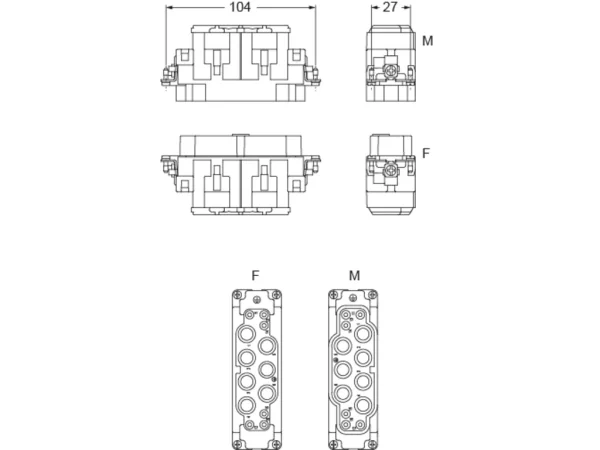

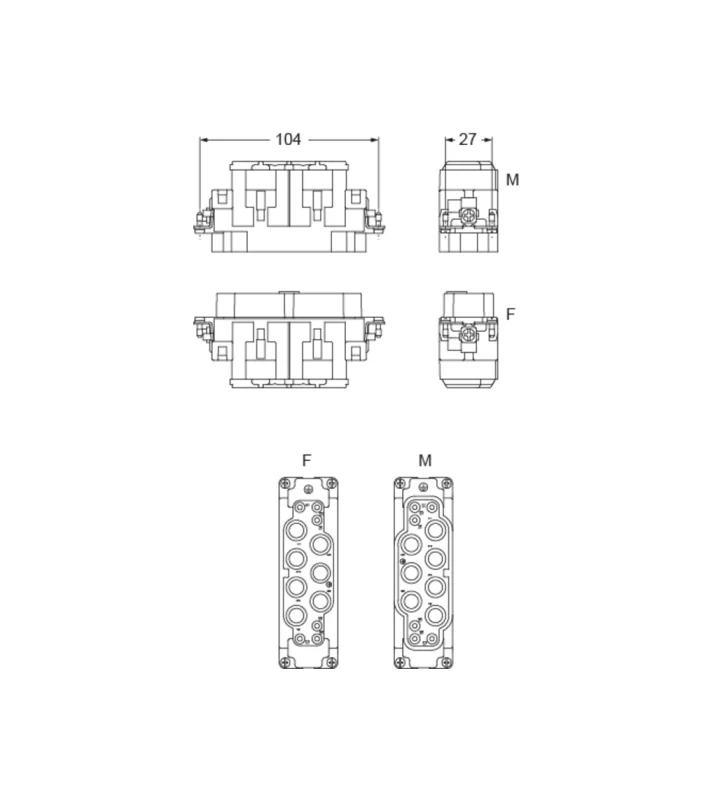

| Size | 104.27 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 8 |
| AWG-range 2 | 2 |
| Min. Cross section | 8 mm² |
| Max. Cross section | 35 mm² |
| Diameter male contact | 6P: 8, 6P: 2,5 mm |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark | Only for bulkhead mounting housings, high construction housings or high construction hoods |
Electrical parameters
| Max. rated current | 100 A |
|---|---|
| Nominal rated voltage | 690 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
