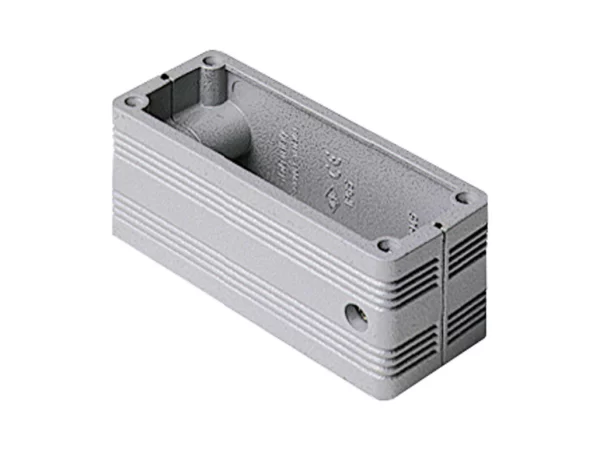

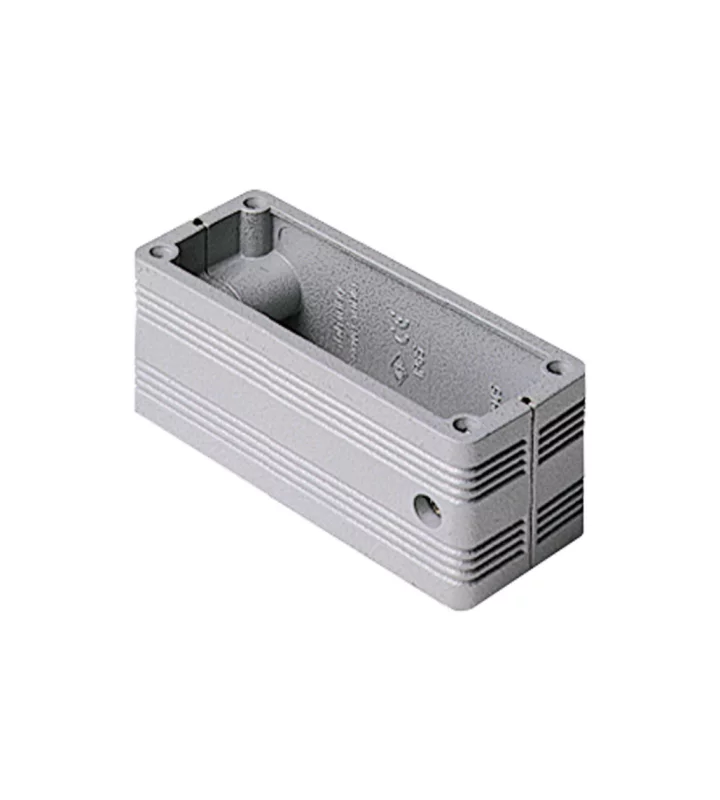

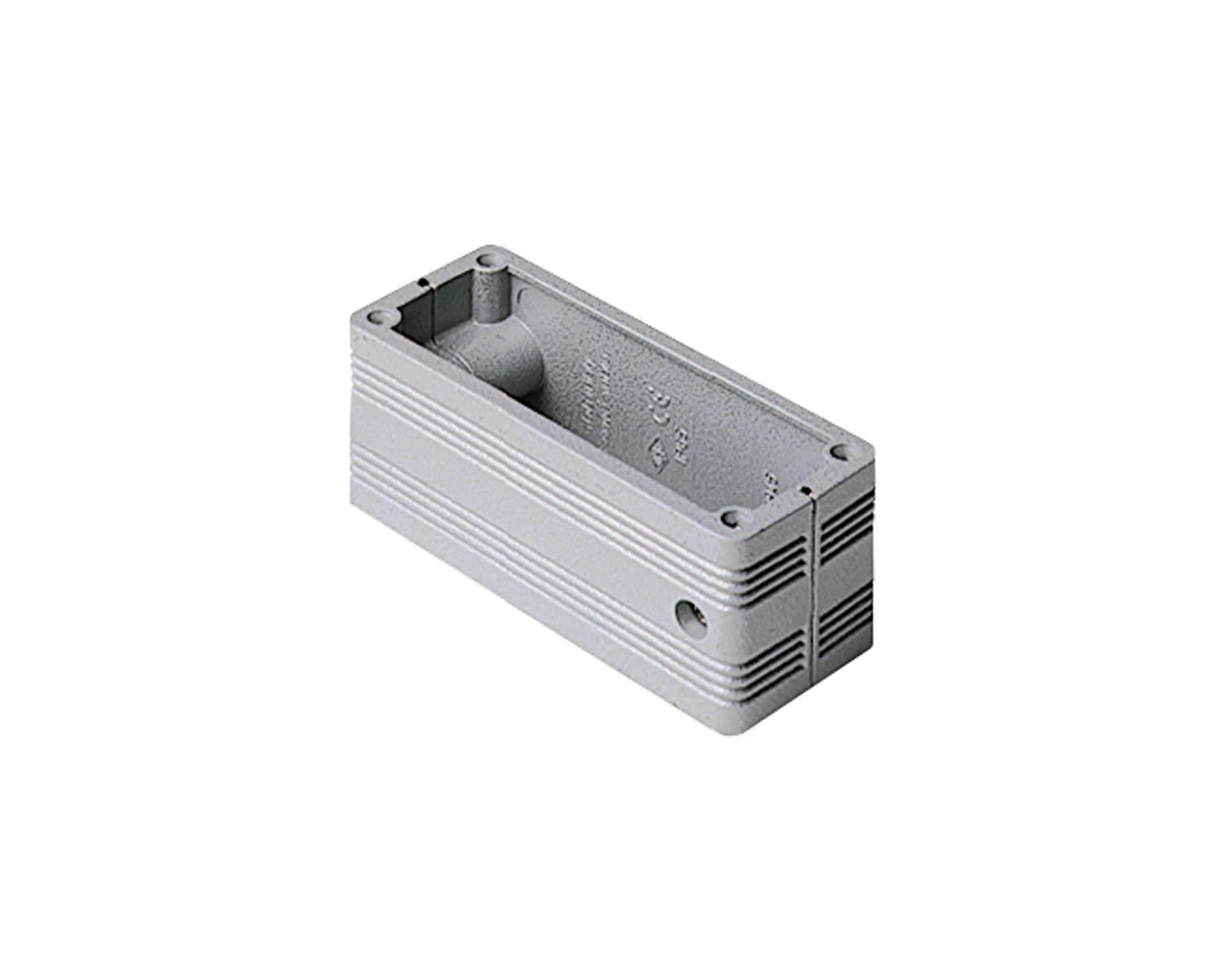

enclosure for in-line joints, for bulkhead mounting housings size 77.27
CYG 16
Specificaties
General characteristics
| Enclosure type | Enclosure for in-line joints |
|---|---|
| Size | 77.27 |
| Enclosure series | SPECIAL ENCLOSURES |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |

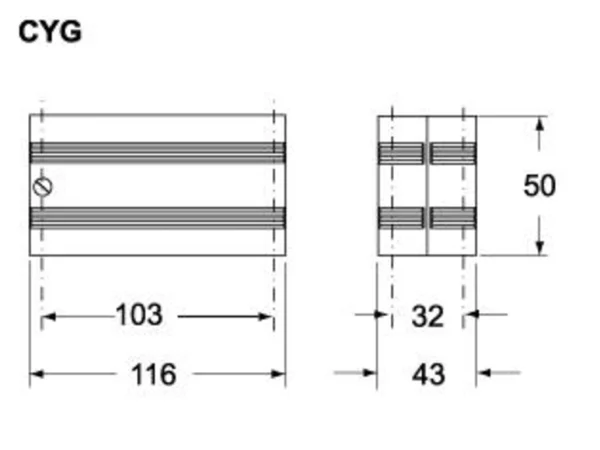

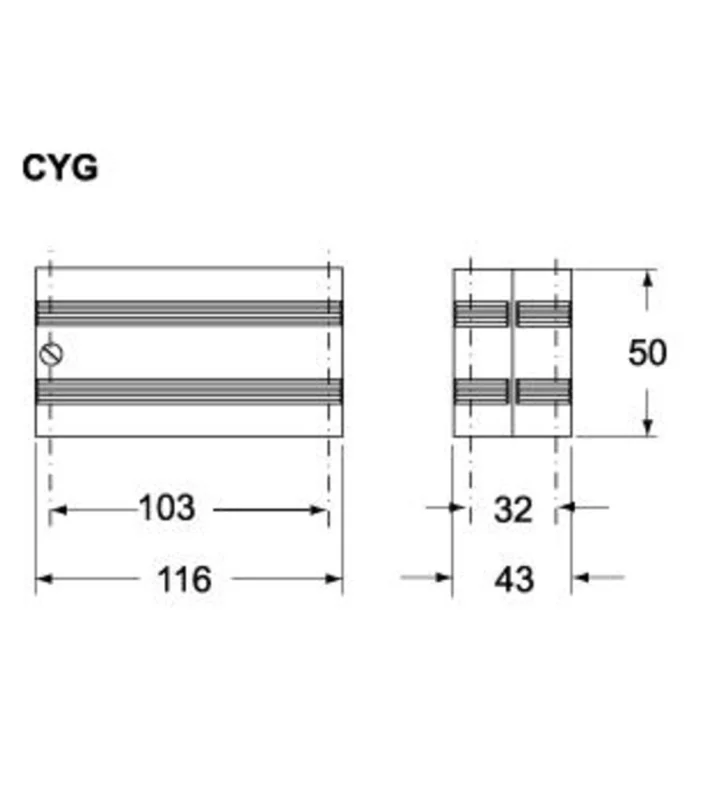

| Height | 50 mm |
| Width | 43 mm |
| Length | 116 mm |
| Remark | cannot be used with the T-TYPE series and IP68 series |
Material
| Material housing | Aluminium |
|---|---|
| Coating housing | With powder coating |
| Extra information | Corrosion resistant,UV resistant |
