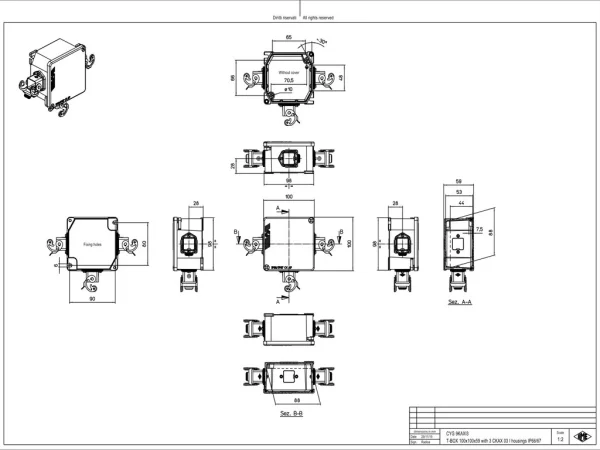

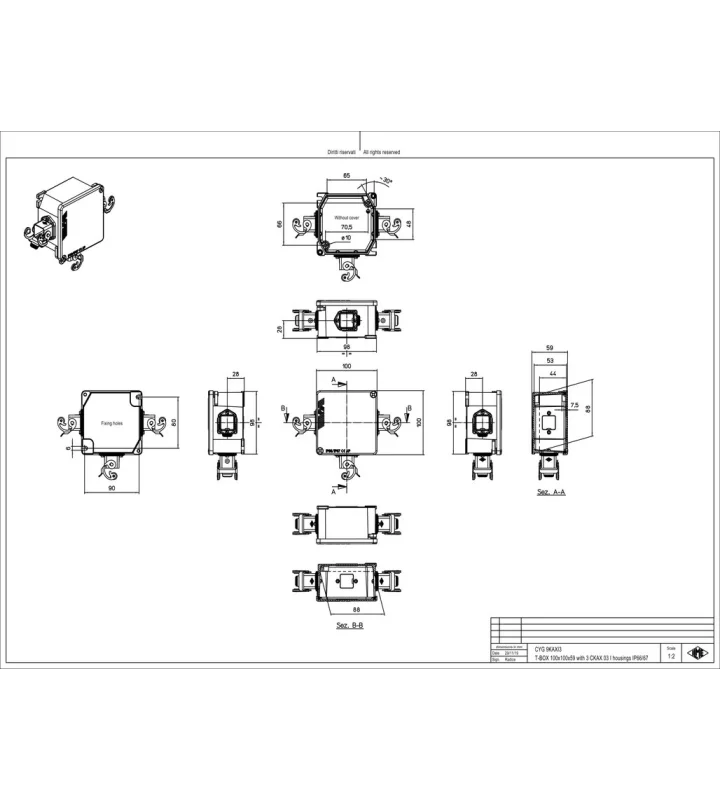

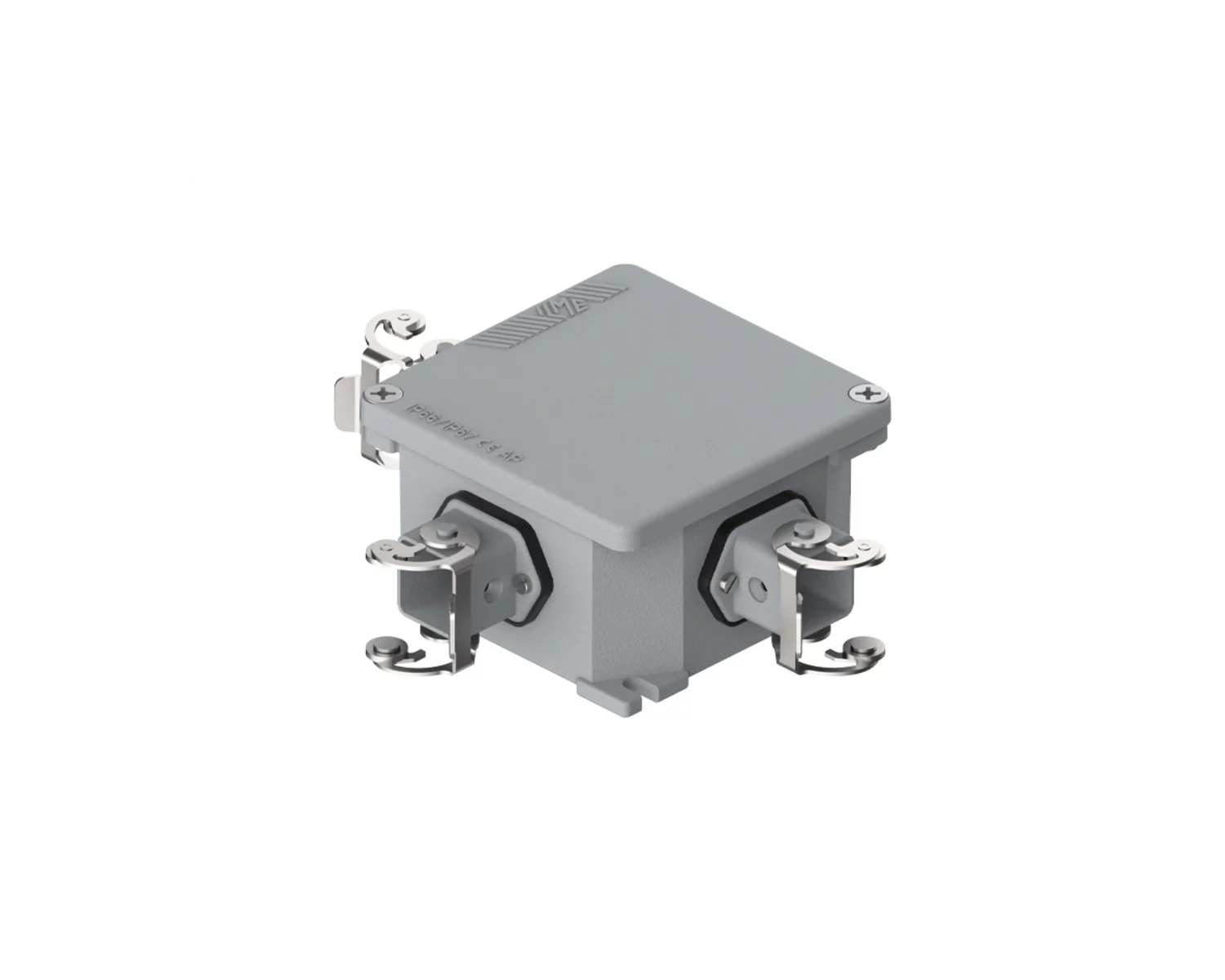

power distributor, T-box, with 3xCKAX 03 I, for inserts 21.21
CYG 9KAXI3
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | CYG T-junction box |
| Closing type | With 1 lever |
| Protection degree | IP66 / IP67 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Height | 58 mm |
| Width | 100 mm |
| Length | 100 mm |
