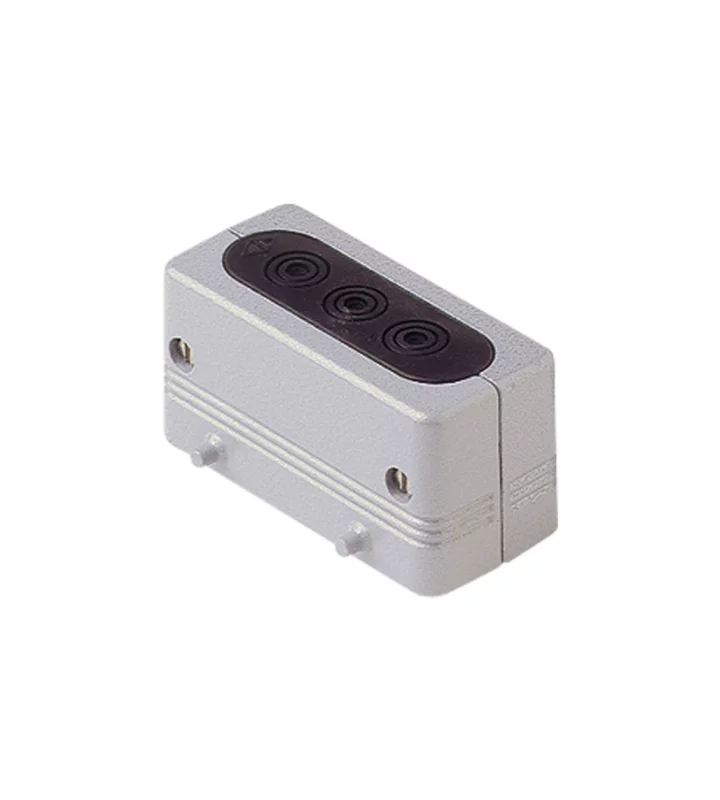

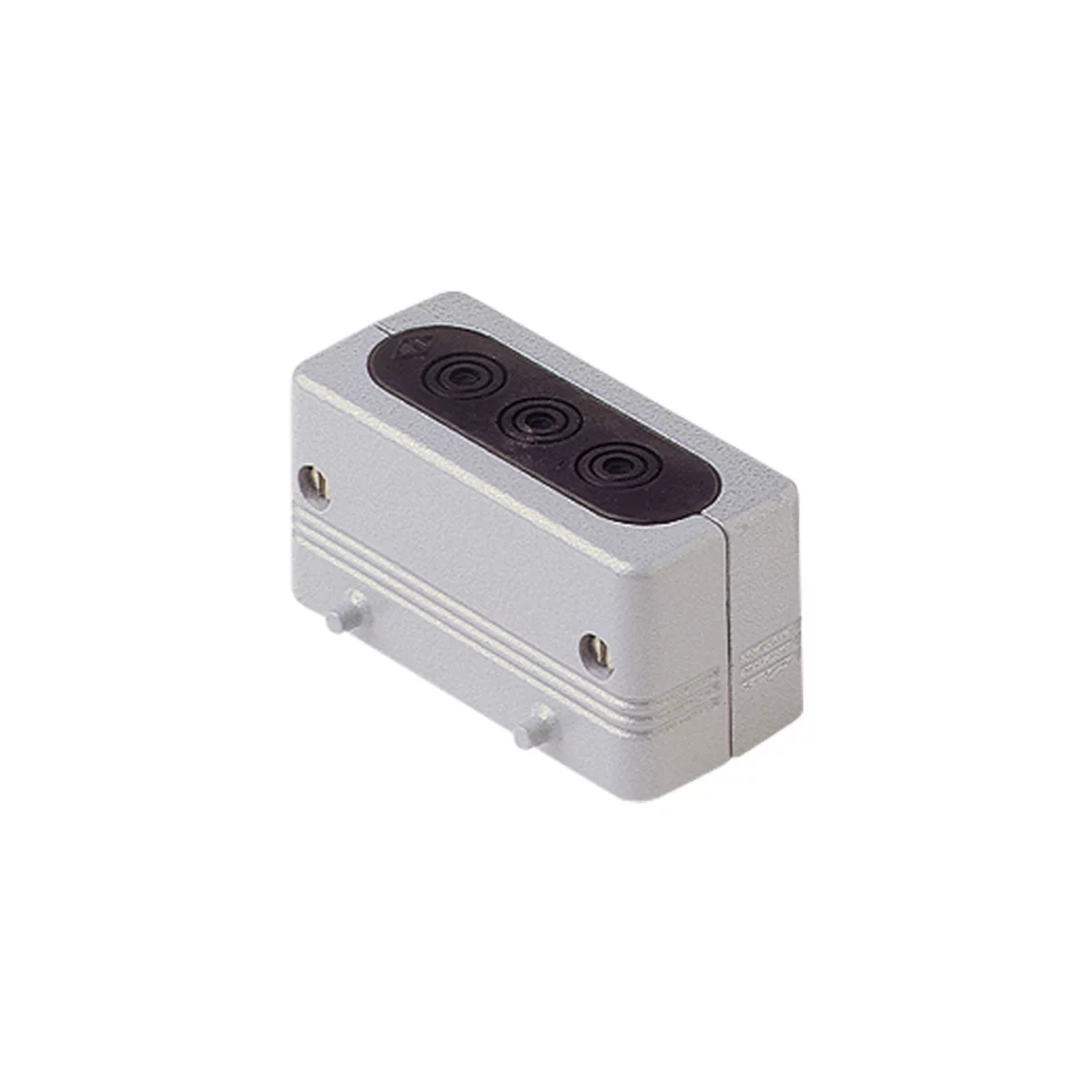

passing hood, size 77.27, alu, 4 pegs, for 3 data cable 5,0-13,5mm
CYR 16.3
Specificaties
General characteristics
| Enclosure type | Cable passing hood |
|---|---|
| Size | 77.27 |
| Enclosure series | SPECIAL ENCLOSURES |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Position cable feed | Top entry |
| Height | 47 mm |
| Width | 43 mm |
| Length | 93.5 mm |
Material
| Material housing | Aluminium |
|---|---|
| Coating housing | With powder coating |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
