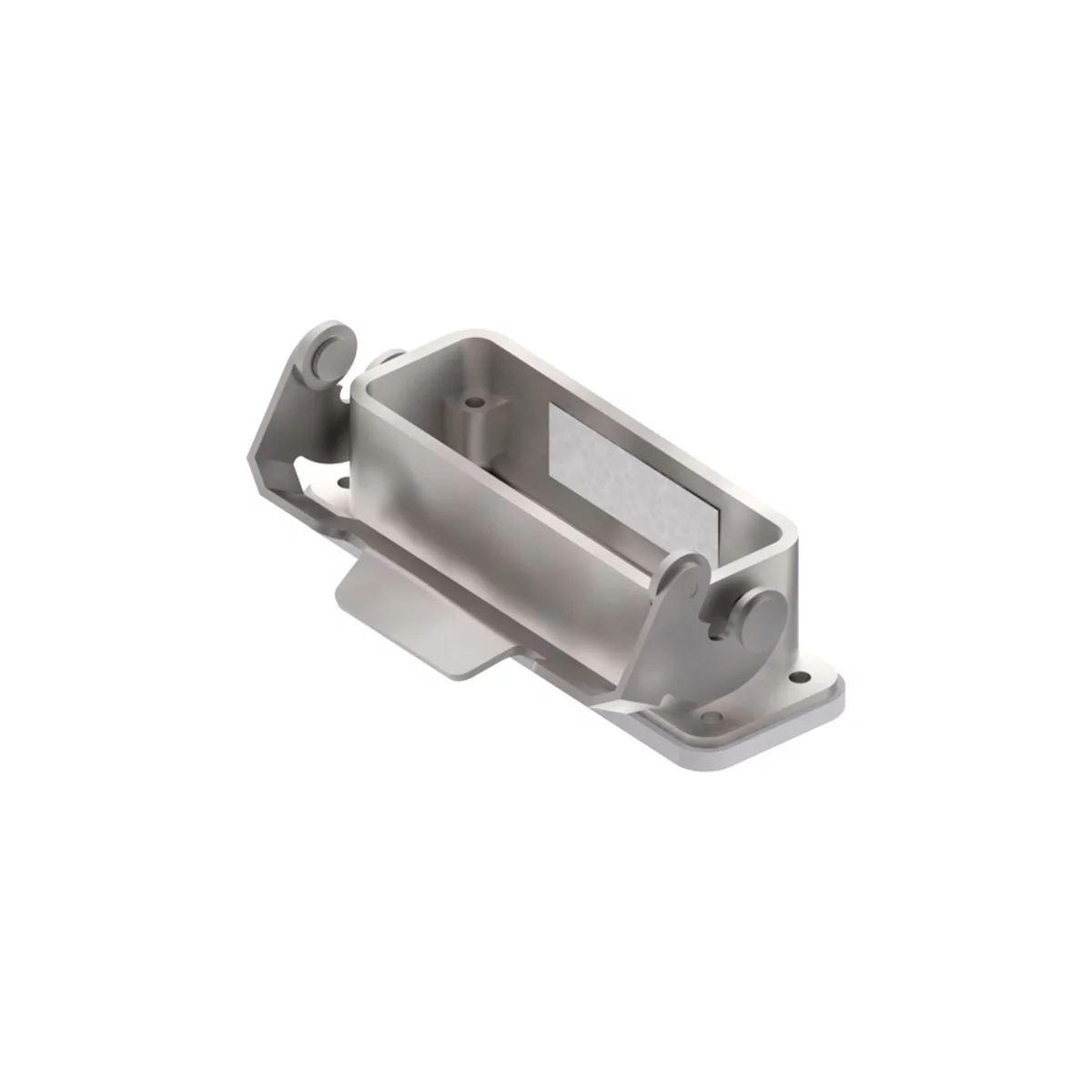

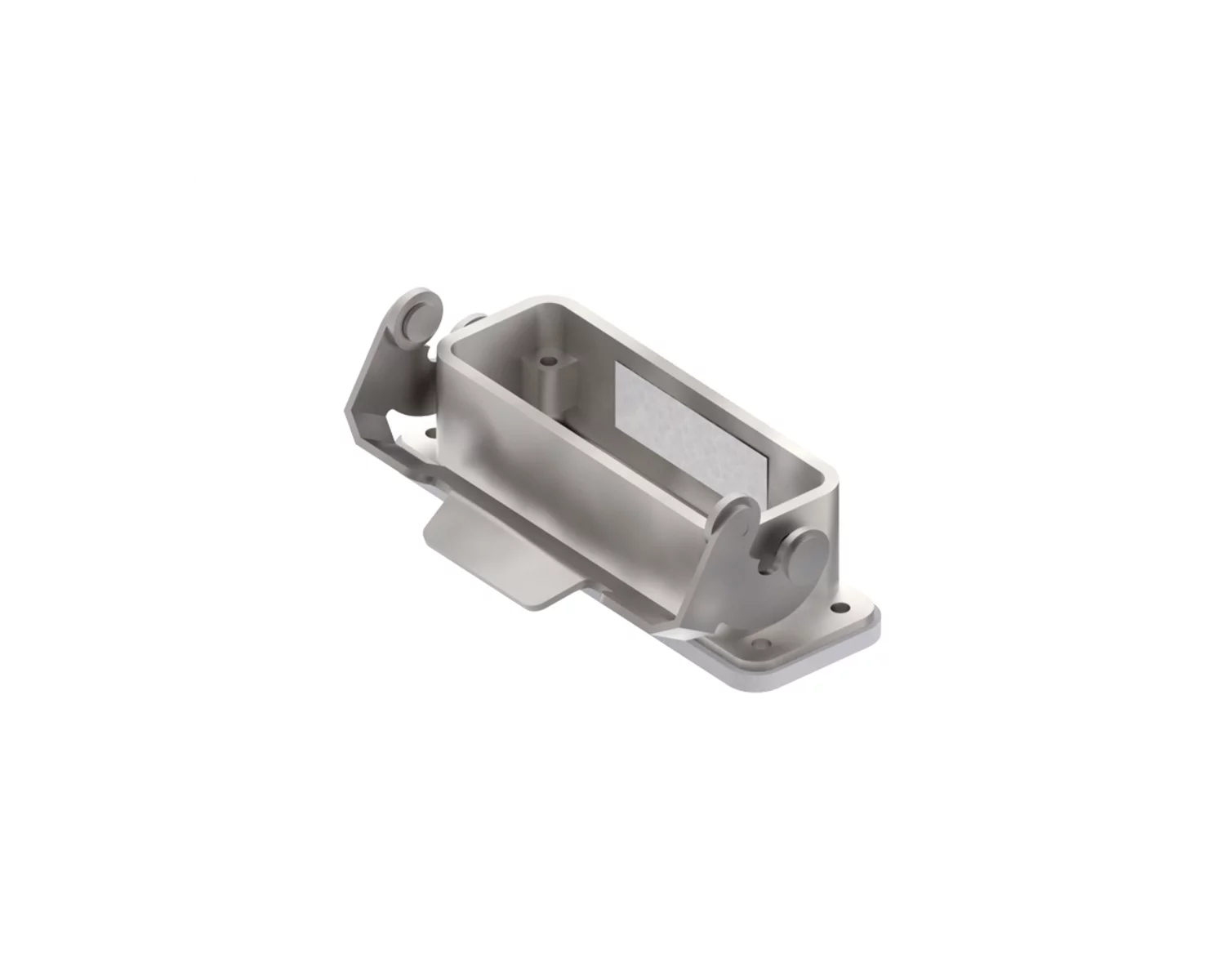

bulkhead mounting housing, size 66.16, EMC alu, 1 rigid lever
CZ7IS 25 L
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 66.16 |
| Enclosure series | EMC |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP66 / IP67 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 27 mm |
| Width | 32 mm |
| Length | 83 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | Chromate conversion coating |
