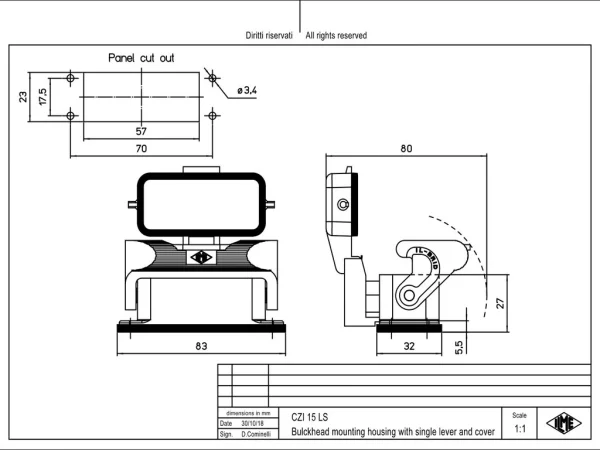

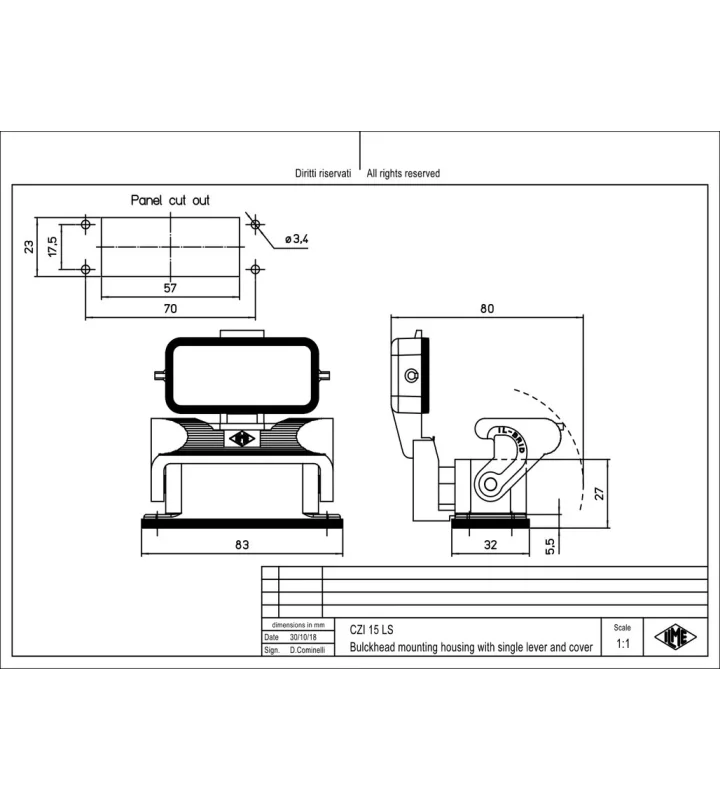

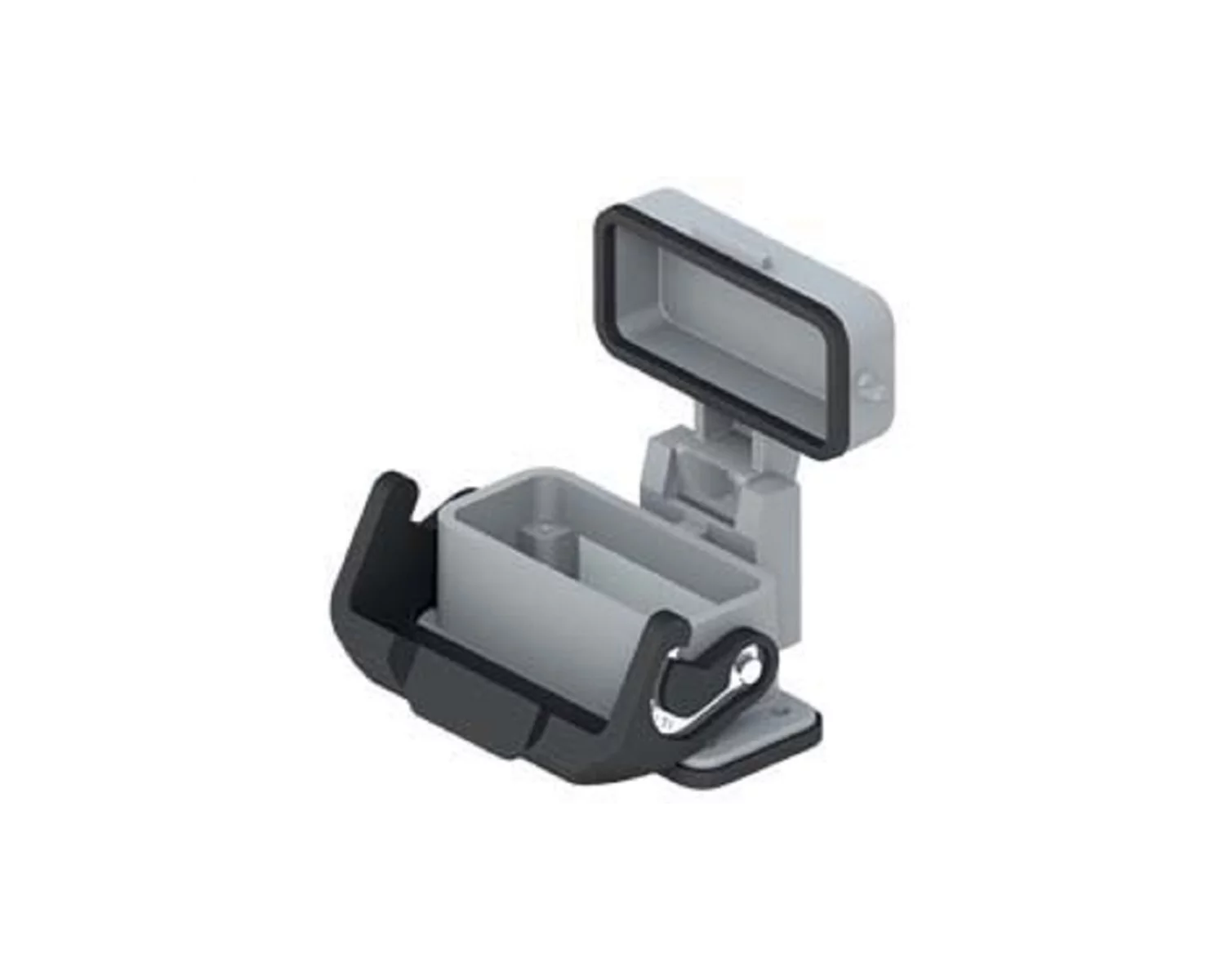

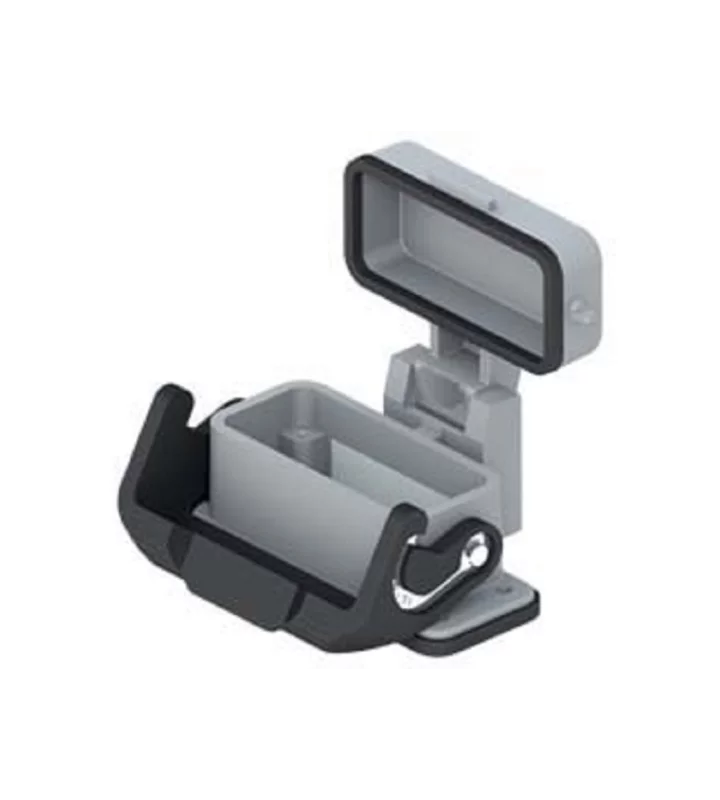

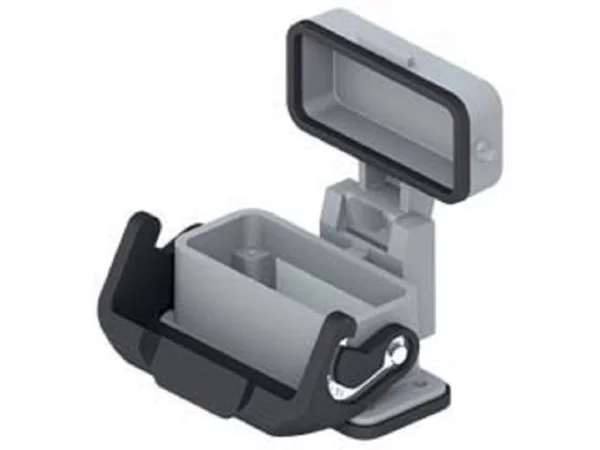

bulkhead mounting housing, size 49.16, IL-BRID alu, 1 lever, cover metal
CZI 15 LS
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 49.16 |
| Enclosure series | IL-BRID |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | without cable entry |
| Position cable feed | Without cable entry |
| Height | 27 mm |
| Width | 32 mm |
| Length | 83 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
