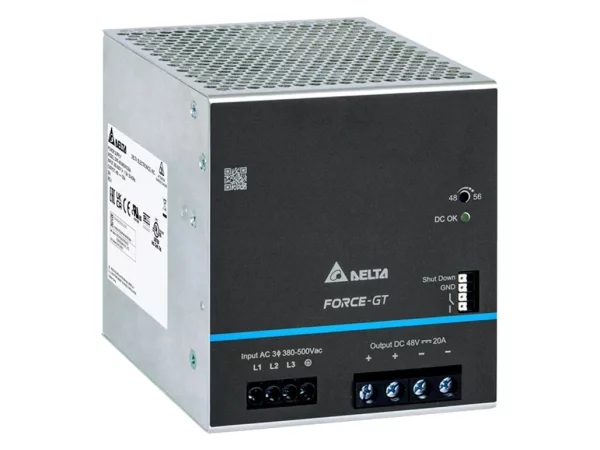

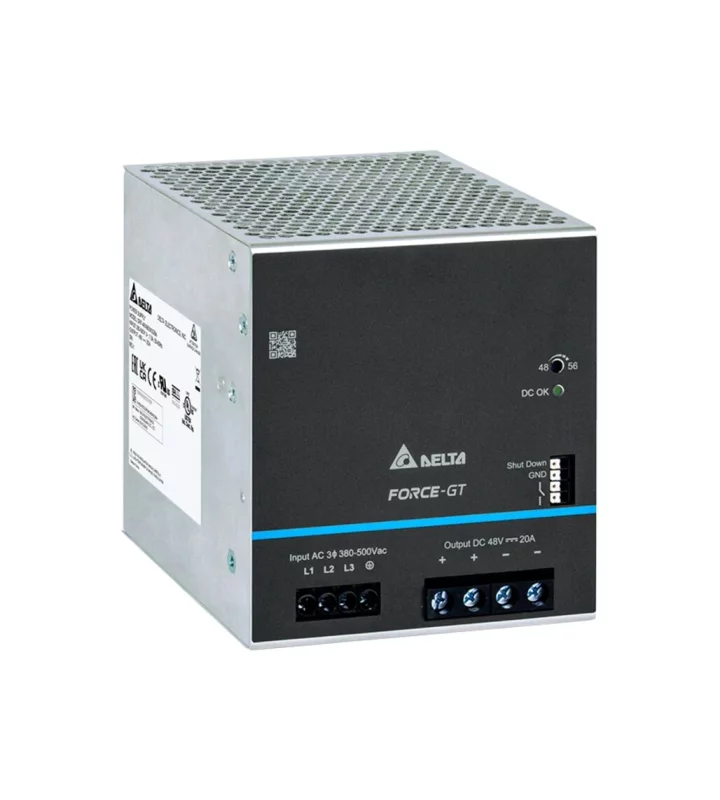

Power supply, 2,3Ph, 960W, DIN Rail, AC/DC, 48 Vdc, 20 A
DRF-48V960W3GBA
Specificaties
General Characteristics
| Power supply series | Force GT |
|---|---|
| Type power supplies | AC/DC |
| Dimensions (WxHxD) | 124 x 110 x 128,7 |
| Applications | Industrial |
Electrical Parameters
| Adjustable Output Voltage | 48...56 Vdc |
|---|---|
| Output Power | 960 W |
| Output Current | 20 A |
| Phases | 2 & 3 |
| Input Voltage | 3 x 320...575 (3-Phase) or 2 x 340...575 (2-Phase) |
| Input Voltage | 450 - 800 Vdc |
