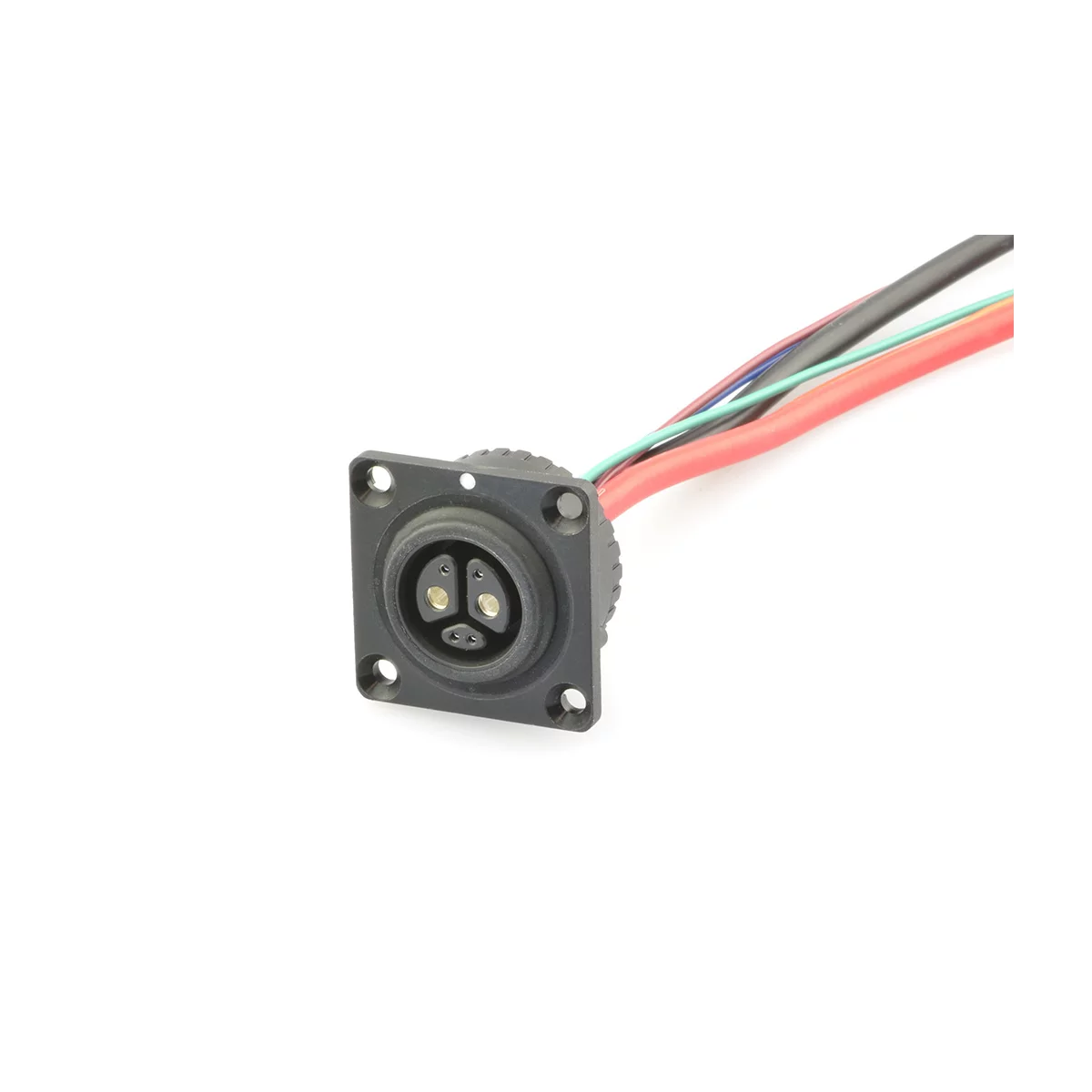

Female panel mount
Push-on flexible
F618AM C 03 VM 0300
Specificaties
General Characteristics
| Number of contacts | 6 (2+4) |
|---|---|
| Connector shape | Panel mount |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking | Push-on flexible |
| Mating cycles (times) | 3000 Times |

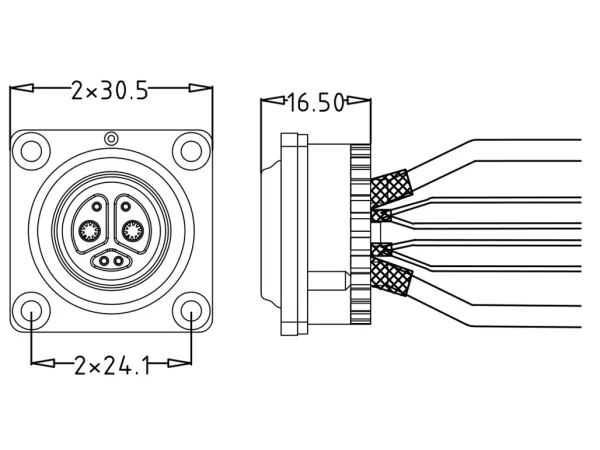

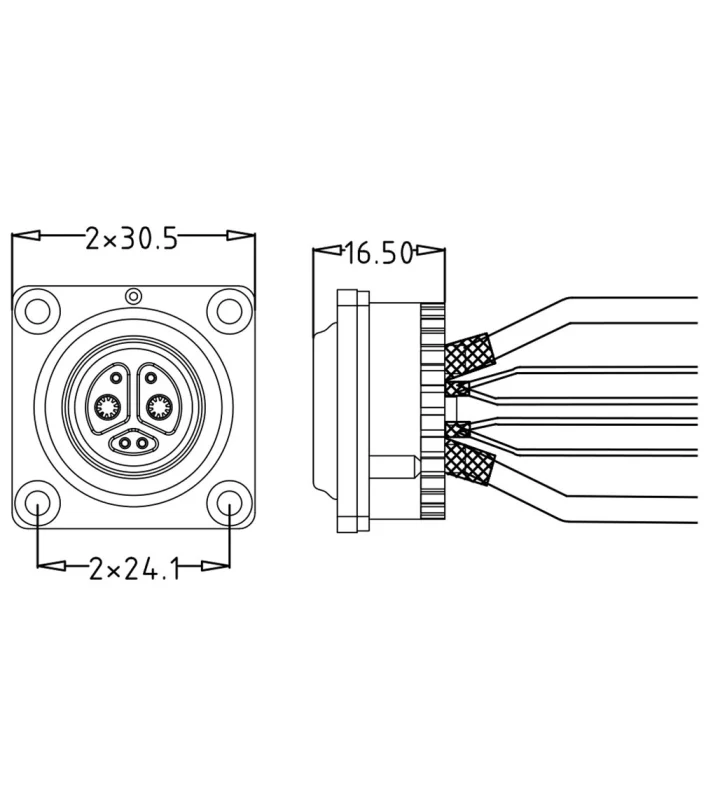

| Connector diameter | 30,5 x 30,5 mm |
| Cable Length | 300 mm |
| Wire section in AWG | 2 x 12 + 4 x 24 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 30 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance (MΩ) | ≥20 MΩ |
| Max. contact resistance (MΩ) | ≤10 mΩ |
Material
| Insulation wire | PVC |
|---|---|
| Material of contact | Copper alloy |
| Contact plating | Silver plated |
