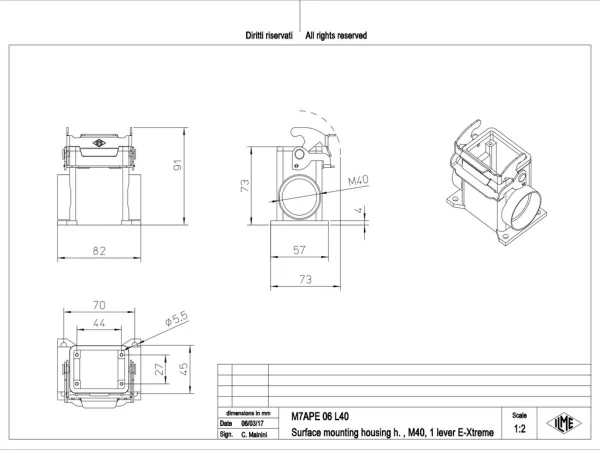

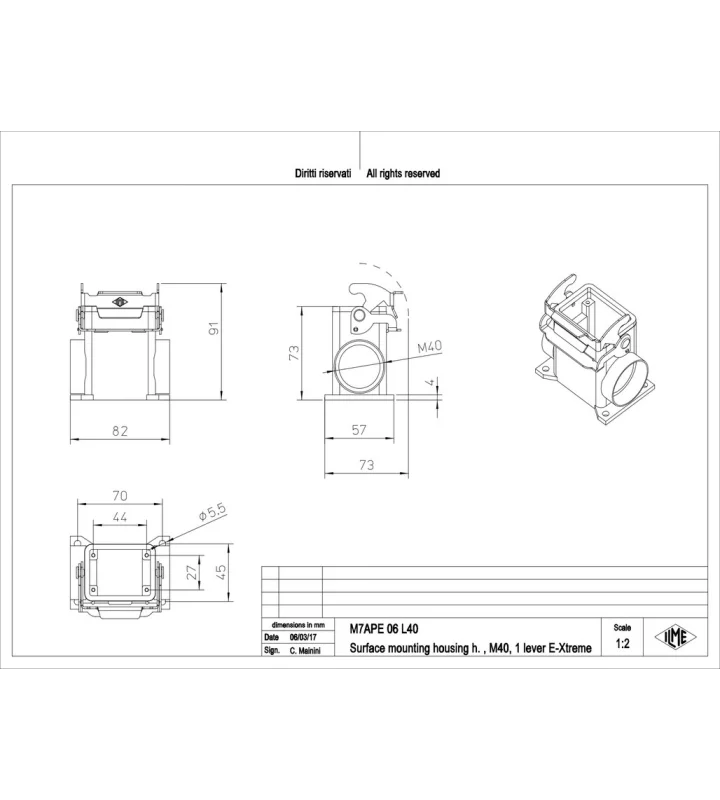

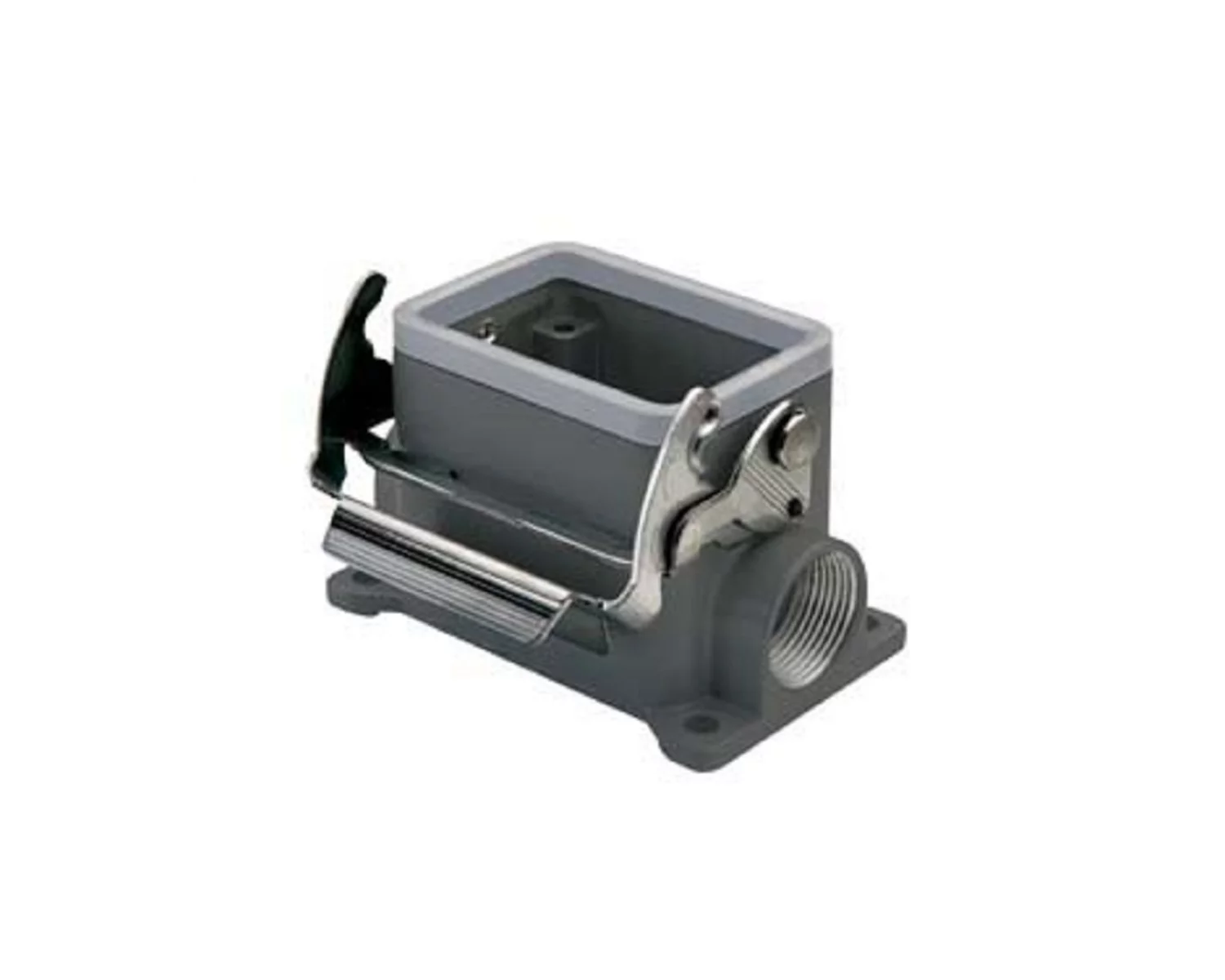

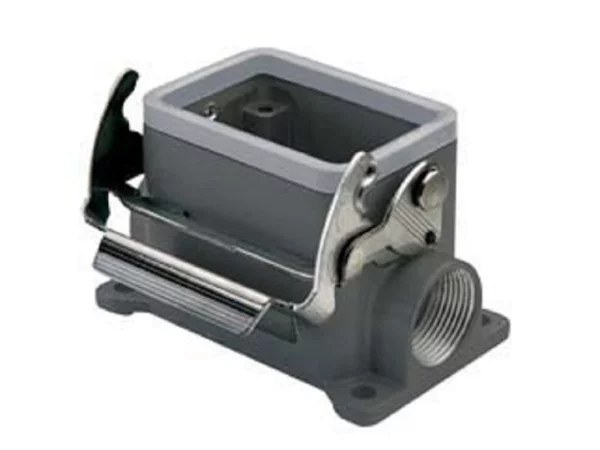

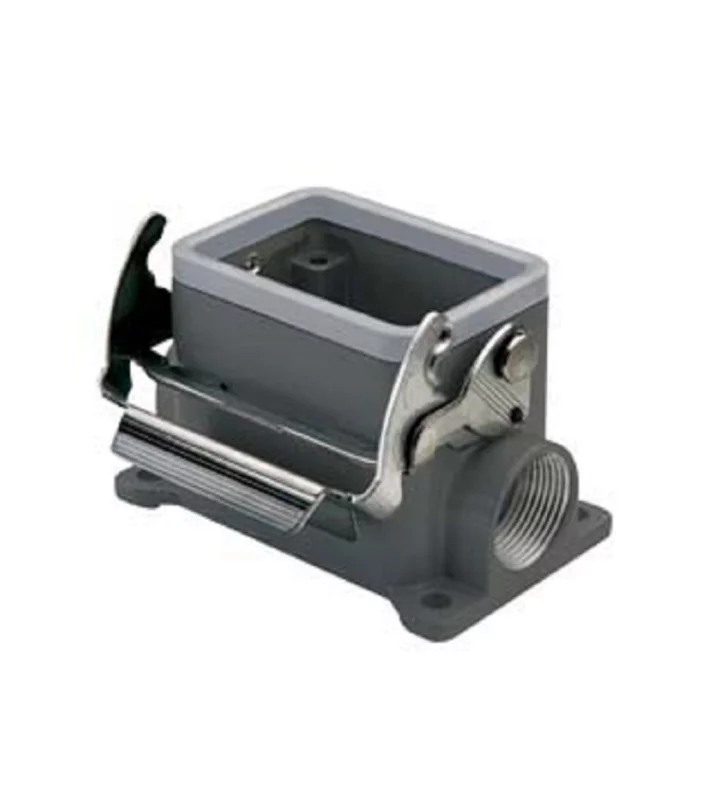

surface mounting housing, high, size 44.27, E-Xtreme alu, 1 lever, 1xM40 side
M7APE 06 L40
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 44.27 |
| Enclosure series | E-Xtreme® V-TYPE |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M40 |
| Position cable feed | Side entry |
| Height | 53 mm |
| Width | 72.5 mm |
| Length | 82 mm |
| Remark | FKM gasket (-40°C…+180°C) or silicone gasket (-60°C…+180°C) |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
