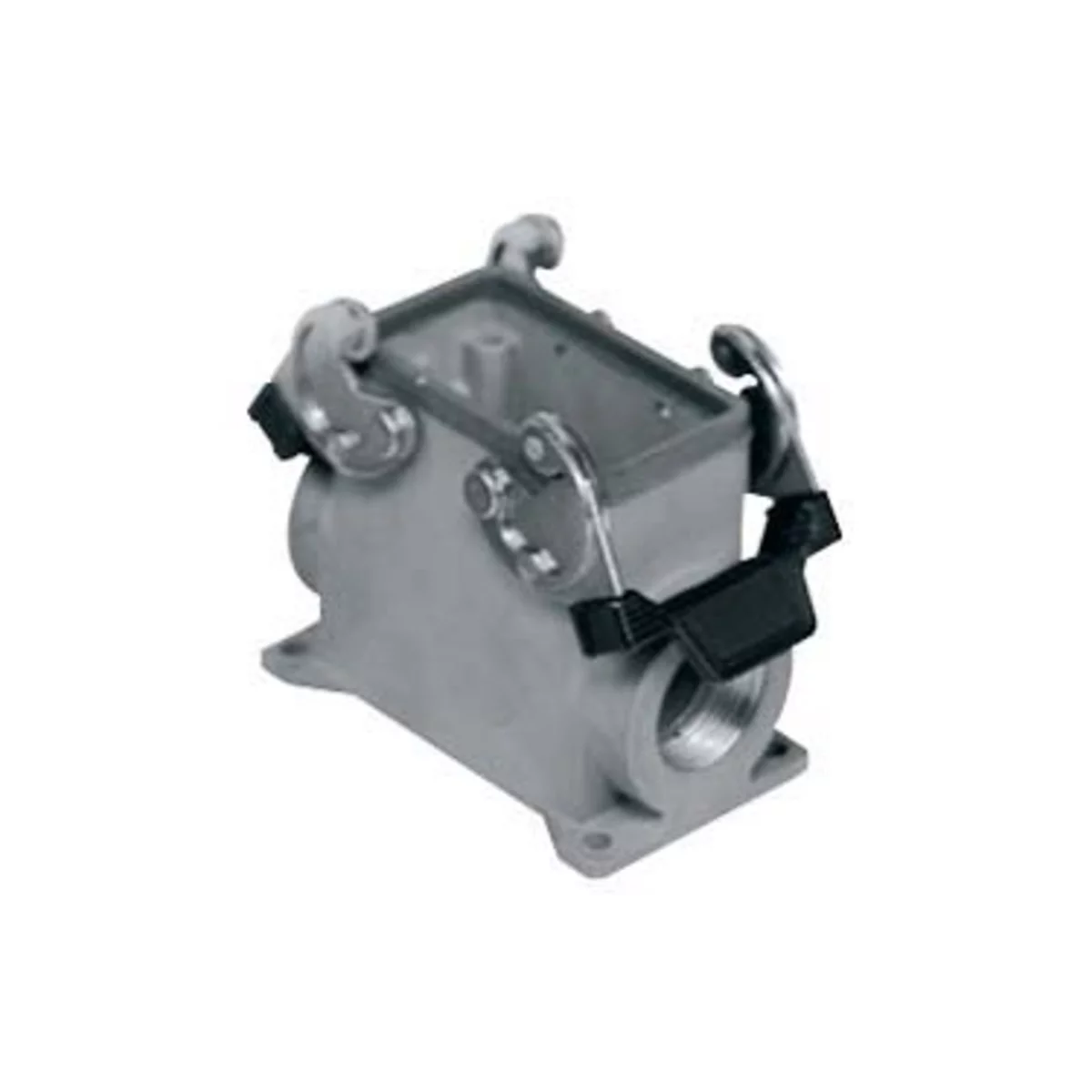

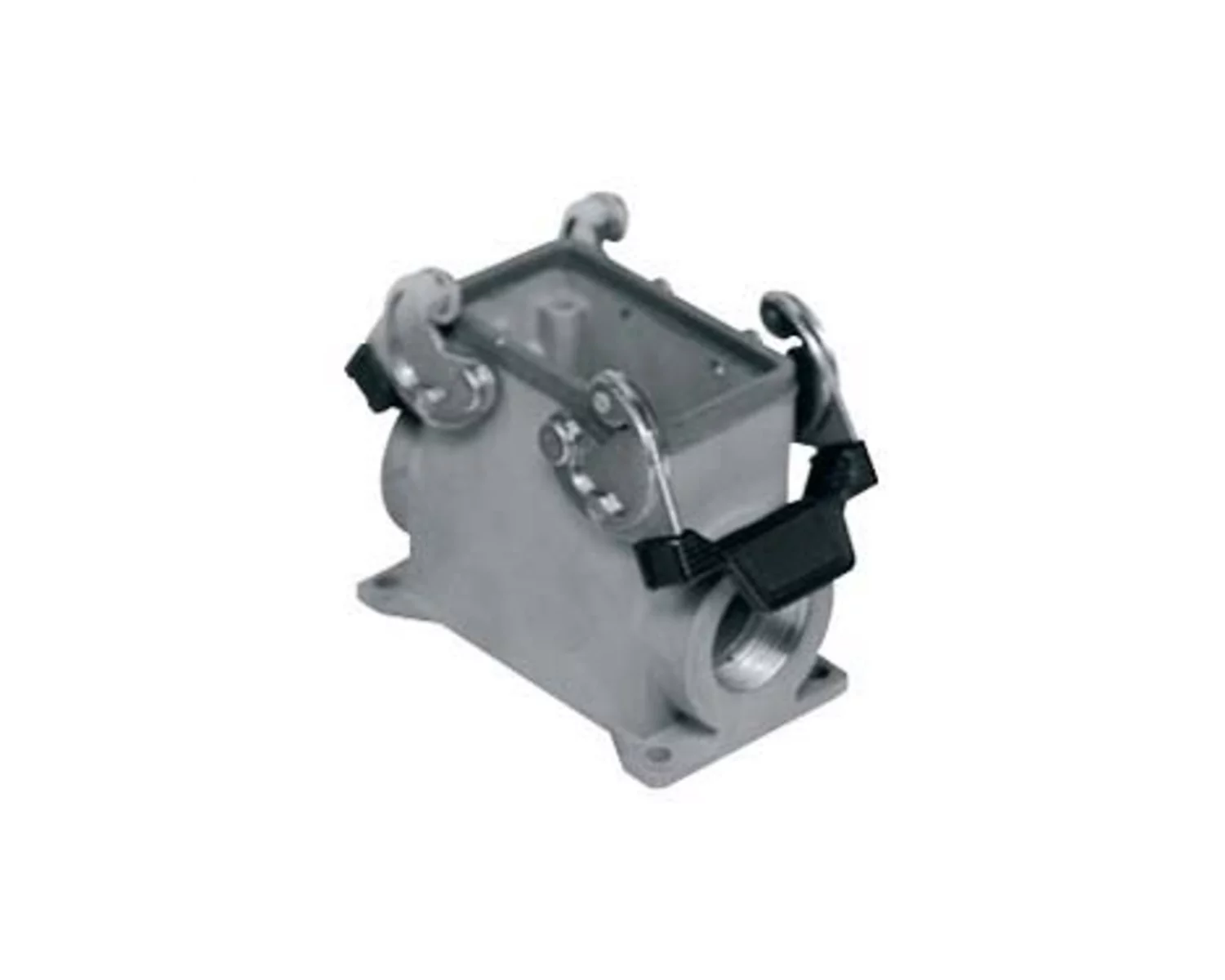

surface mounting housing, high, size 57.27, EMC alu, 2 levers, 1xM32 side
MAPS 10.32
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 57.27 |
| Enclosure series | EMC |
| Closing type | With 2 levers |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M32 |
| Position cable feed | Side entry |
| Height | 74 mm |
| Width | 57 mm |
| Length | 93.5 mm |
Material
| Material housing | Aluminium |
|---|---|
| Coating housing | With powder coating |
| Extra information | Corrosion resistant,EMC Version,UV resistant,With interlocking device |
