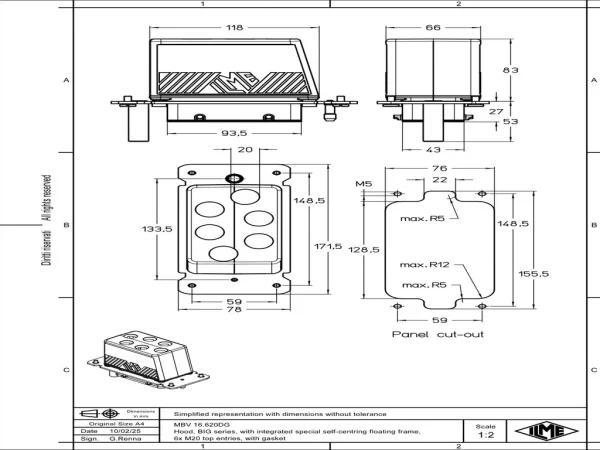

Hood, size 77.27, BIG alu, with 4 pegs, M20 x 6 top
MBV 16.620DG
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 77.27 |
| Enclosure series | BIG |
| Closing type | With 4 pegs |
| Protection degree | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M20 x 6 |
| Position cable feed | Top entry |
| Height | 83 mm |
| Width | 66 mm |
| Length | 118 mm |
Material
| Material housing | Aluminium die-cast |
|---|---|
| Extra information | With integrated special self-centring floating frame |
