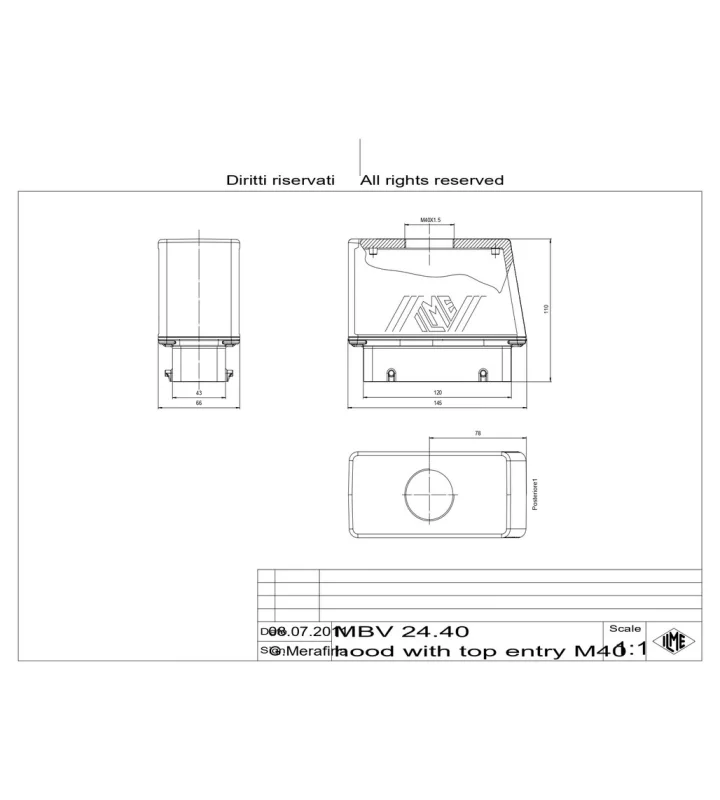

hood, size 104.27, BIG alu, 4 pegs, 1xM40 top, extended terminal compartment
MBV 24.40
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 104.27 |
| Enclosure series | BIG |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Protection degree | IP66 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M40 |
| Position cable feed | Top entry |
| Height | 110 mm |
| Width | 66 mm |
| Length | 145 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
