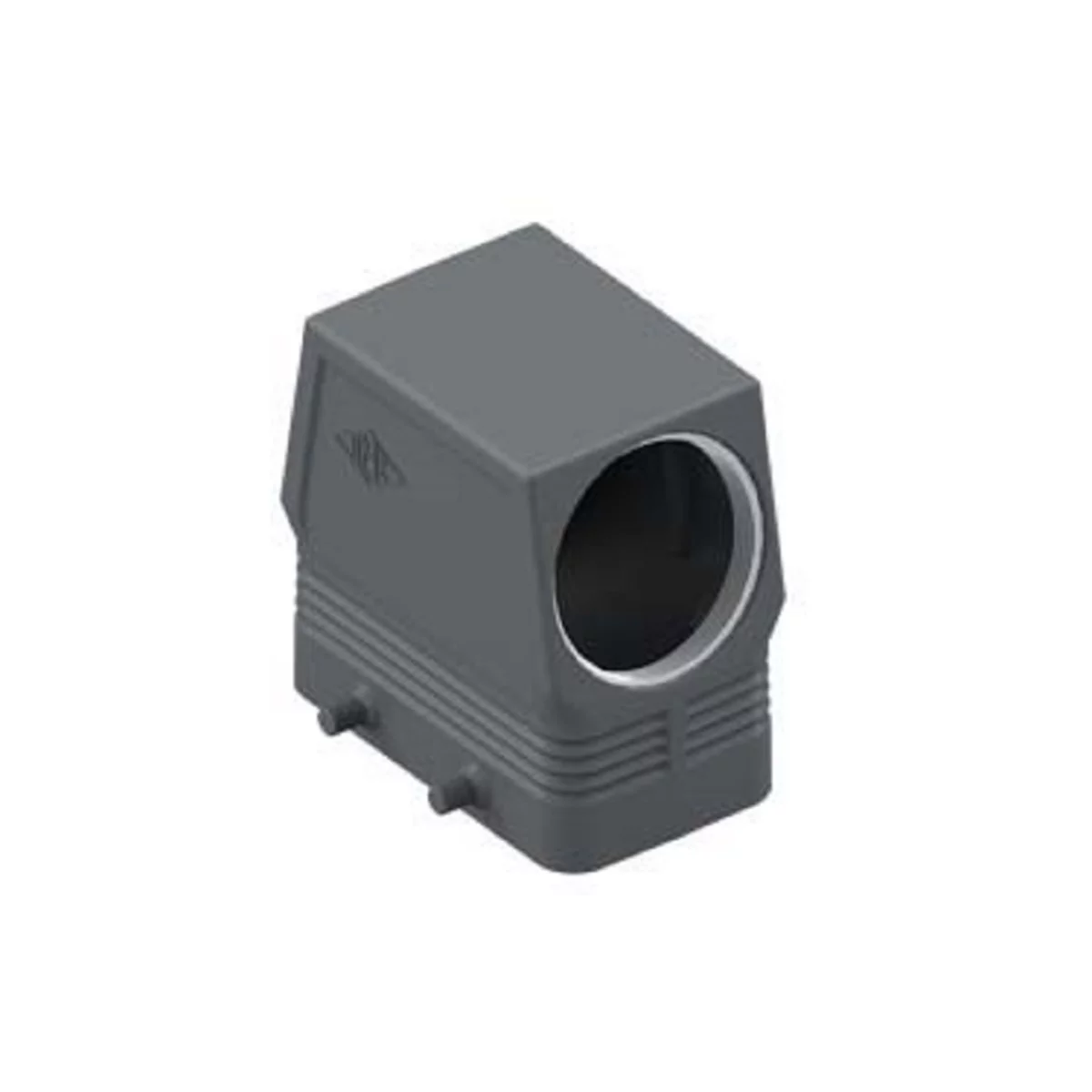

hood, high, size 57.27, E-Xtreme alu, 4 pegs, 1xM32 side, no adaptor
MFOE 10.32M
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 57.27 |
| Enclosure series | E-Xtreme® V-TYPE |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Protection degree | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M32 |
| Position cable feed | Side entry |

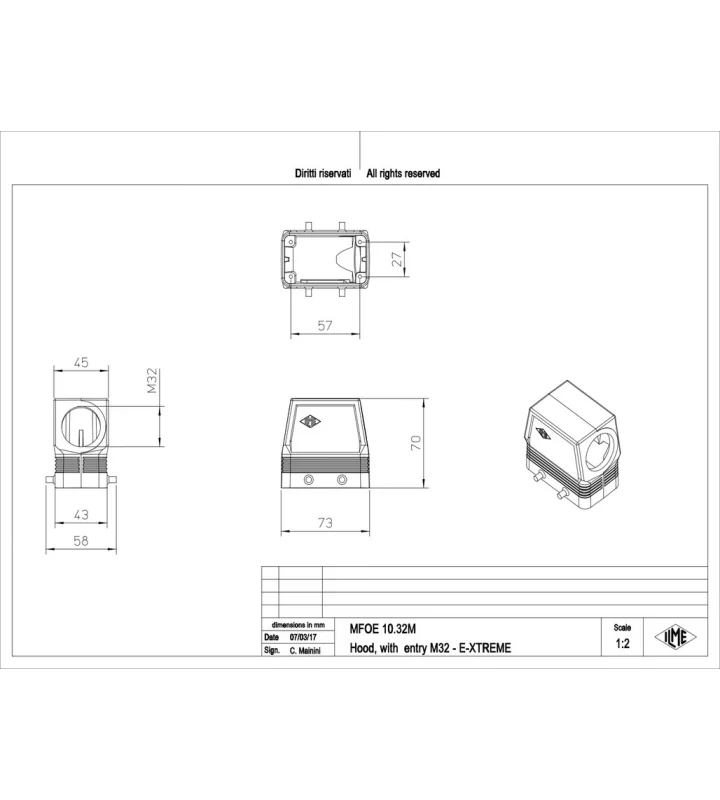

| Height | 70 mm |
| Width | 43 mm |
| Length | 73 mm |
| Remark | Enclosures without adaptor, threaded on the body, to be used only with a complete cable gland |
| Remark 2 | FKM gasket (-40°C…+180°C) or silicone gasket (-60°C…+180°C |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
