hood, size 104.62, C-TYPE alu, 2 pegs, 1xM63 top
MFV 48 L63
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 104.62 |
| Enclosure series | C-TYPE |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M63 |
| Position cable feed | Top entry |

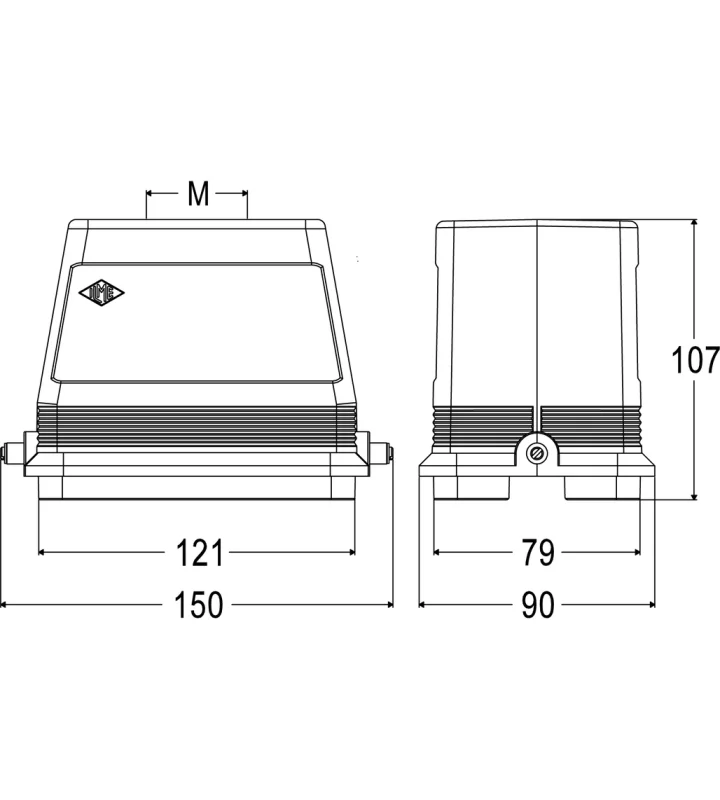

| Height | 107 mm |
| Width | 90 mm |
| Length | 121 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|
