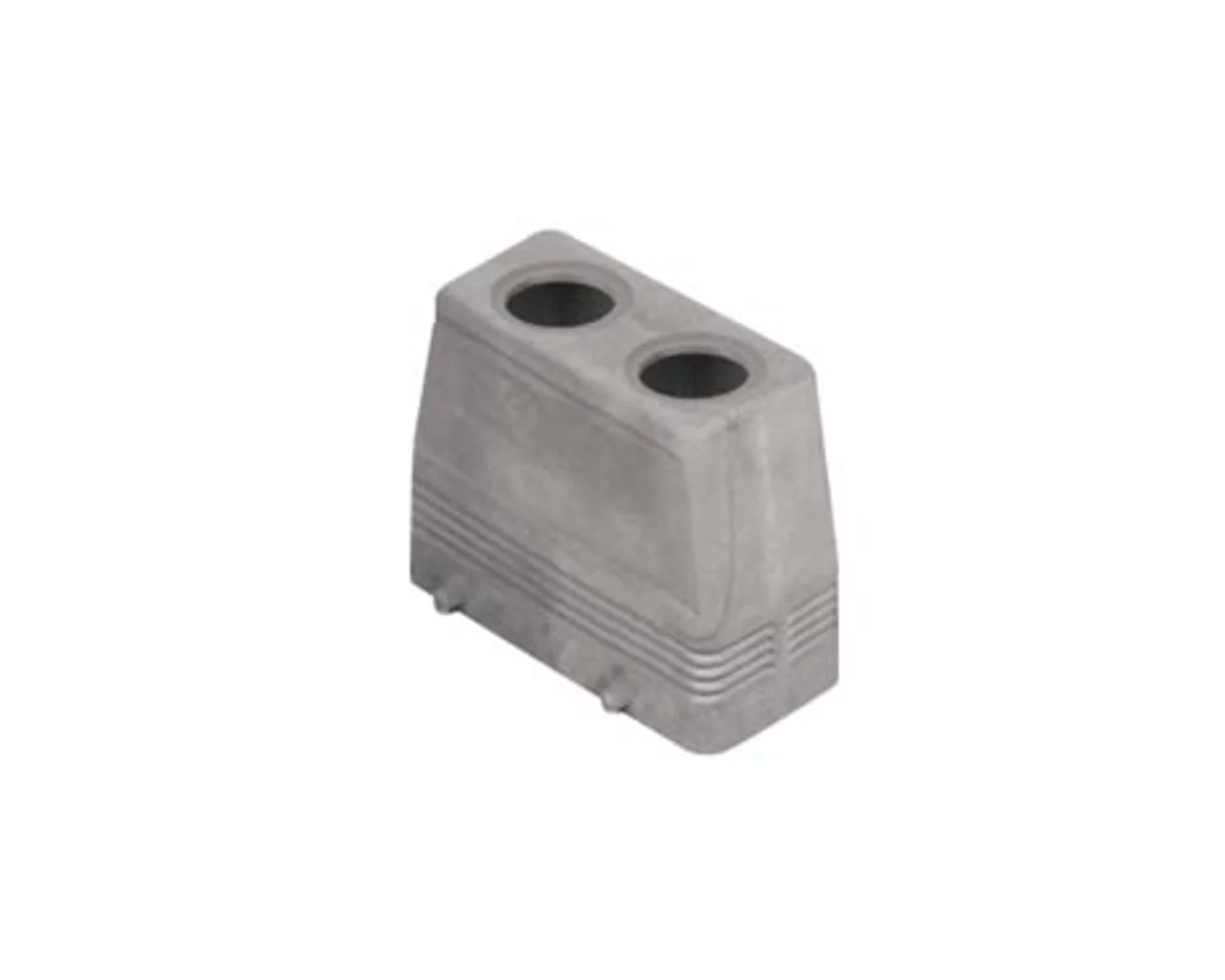

hood, high, size 57.27, EMC alu, 4 peg, 2xM20 top, without adaptor
MFVS 10.220
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 57.27 |
| Enclosure series | EMC |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | double top cable entry |
| Cable entry size | M20 x 2 |
| Position cable feed | Double top cable entry |
| Height | 70 mm |
| Width | 43 mm |
| Length | 73 mm |
Material
| Material housing | Aluminium |
|---|
