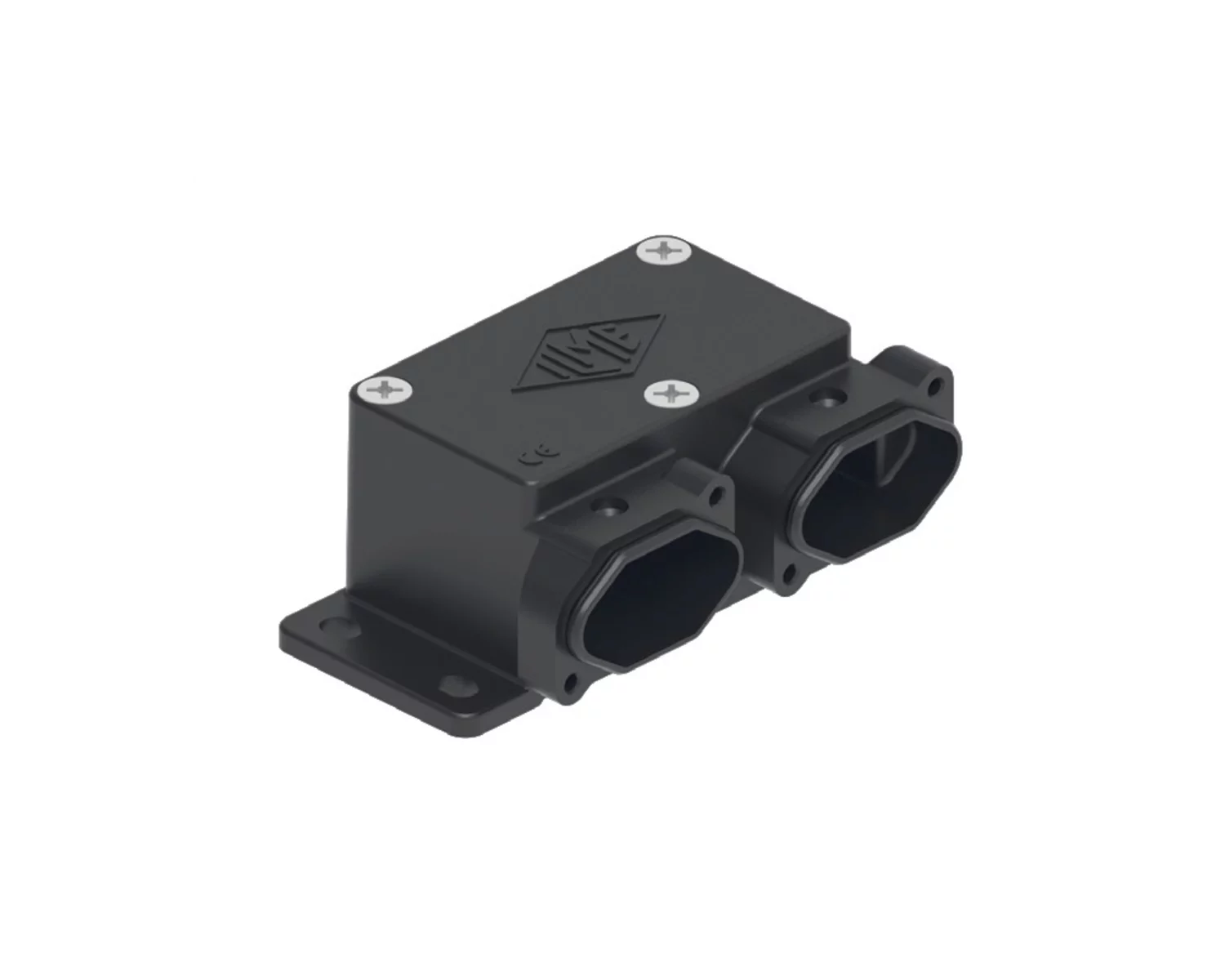

double housing, angled, IP68 alu, screw locking, 1xM25, with 2x CGK I integrated, for inserts 21.21
MGK 2AP25
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Double angled housing |
|---|---|
| Size | 21.21 |
| Enclosure series | IP68 |
| Closing type | With 4 screws |
| Locking mechanism | With 4 screws |
| Protection degree | IP66 / IP68 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M25 |
| Position cable feed | Side entry |
| Height | 46.1 mm |
| Width | 49.8 mm |
| Length | 116.4 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
