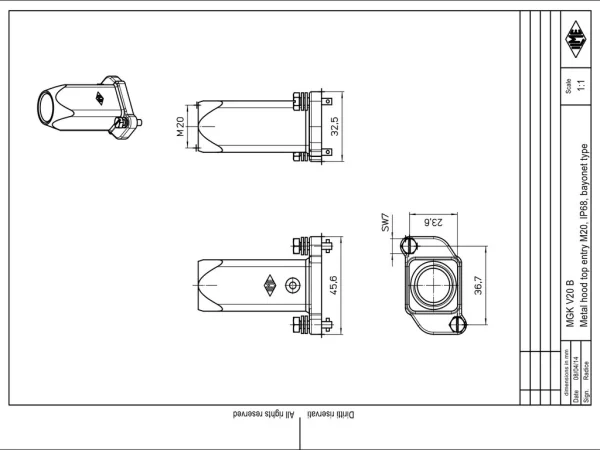

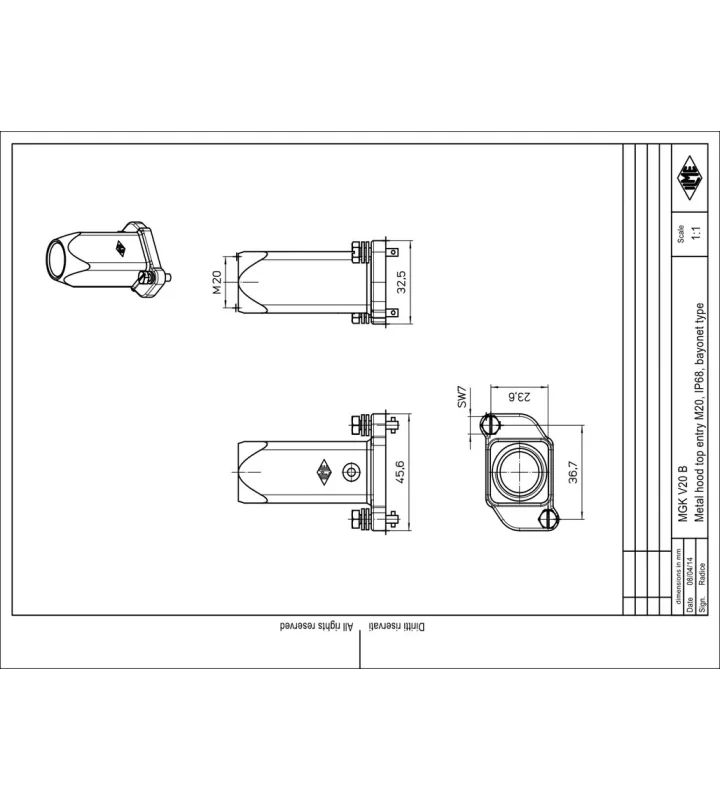

hood, size 21.21, IP68 alu, bayonet locking, 1xM20 top
MGK V20 B
Stel je connector verder samen
Voeg de gewenste accessories en standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 21.21 |
| Enclosure series | IP68 |
| Closing type | With 2 bayonets |
| Locking mechanism | With 2 bayonets |
| Protection degree | IP66 / IP68 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M20 |
| Position cable feed | Top entry |
| Height | 60.8 mm |
| Width | 32.5 mm |
| Length | 45.6 mm |
| Remark | To ensure IP68 protection rating with CD 08 insert, purcahse the Kit CKR 65 D. In this case do not use the screw supplied with the enclosure |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
