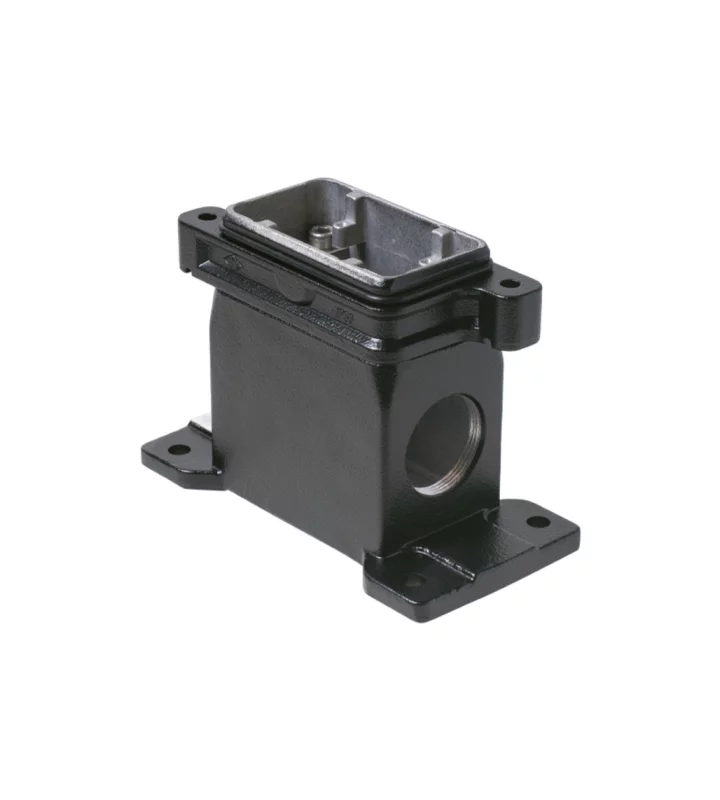

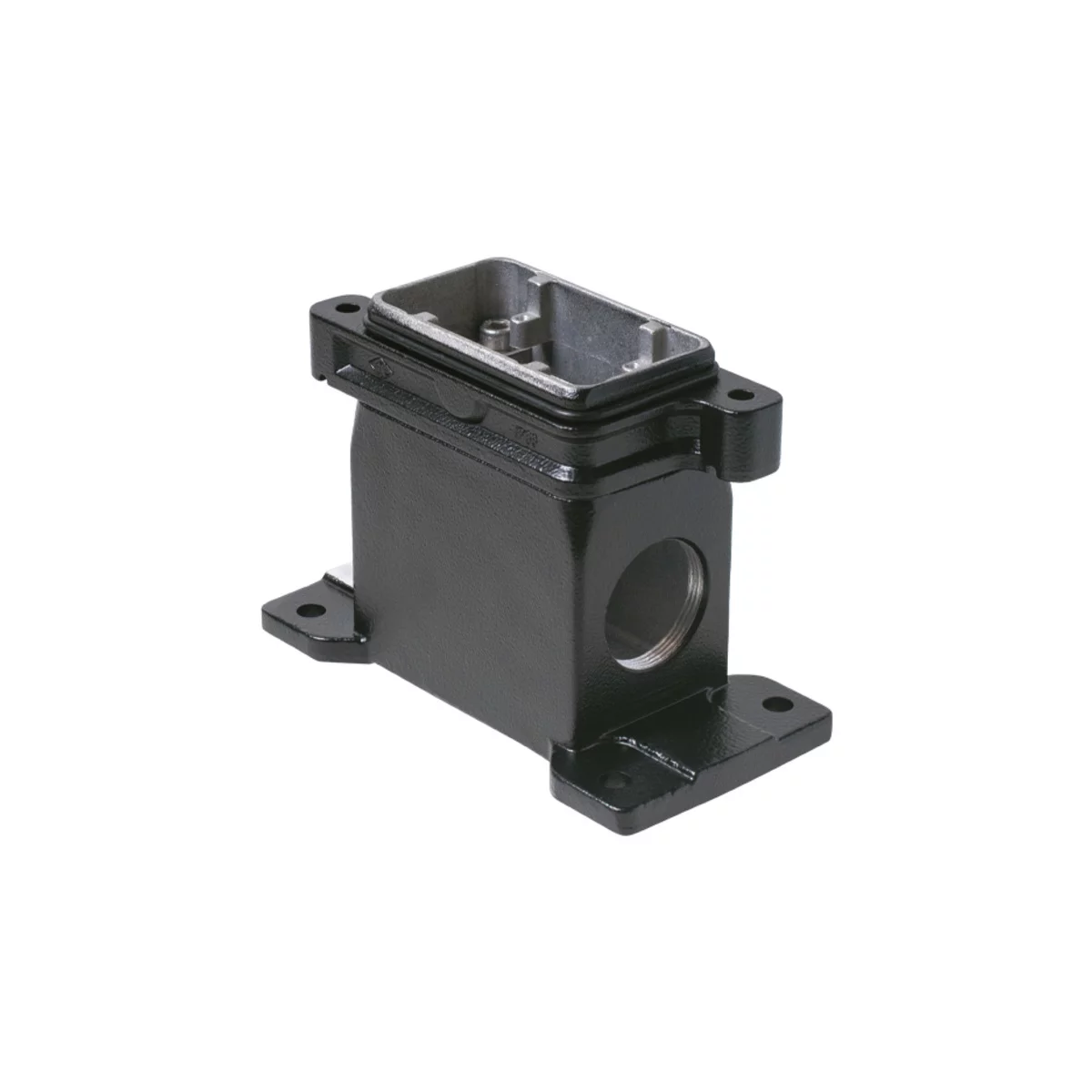

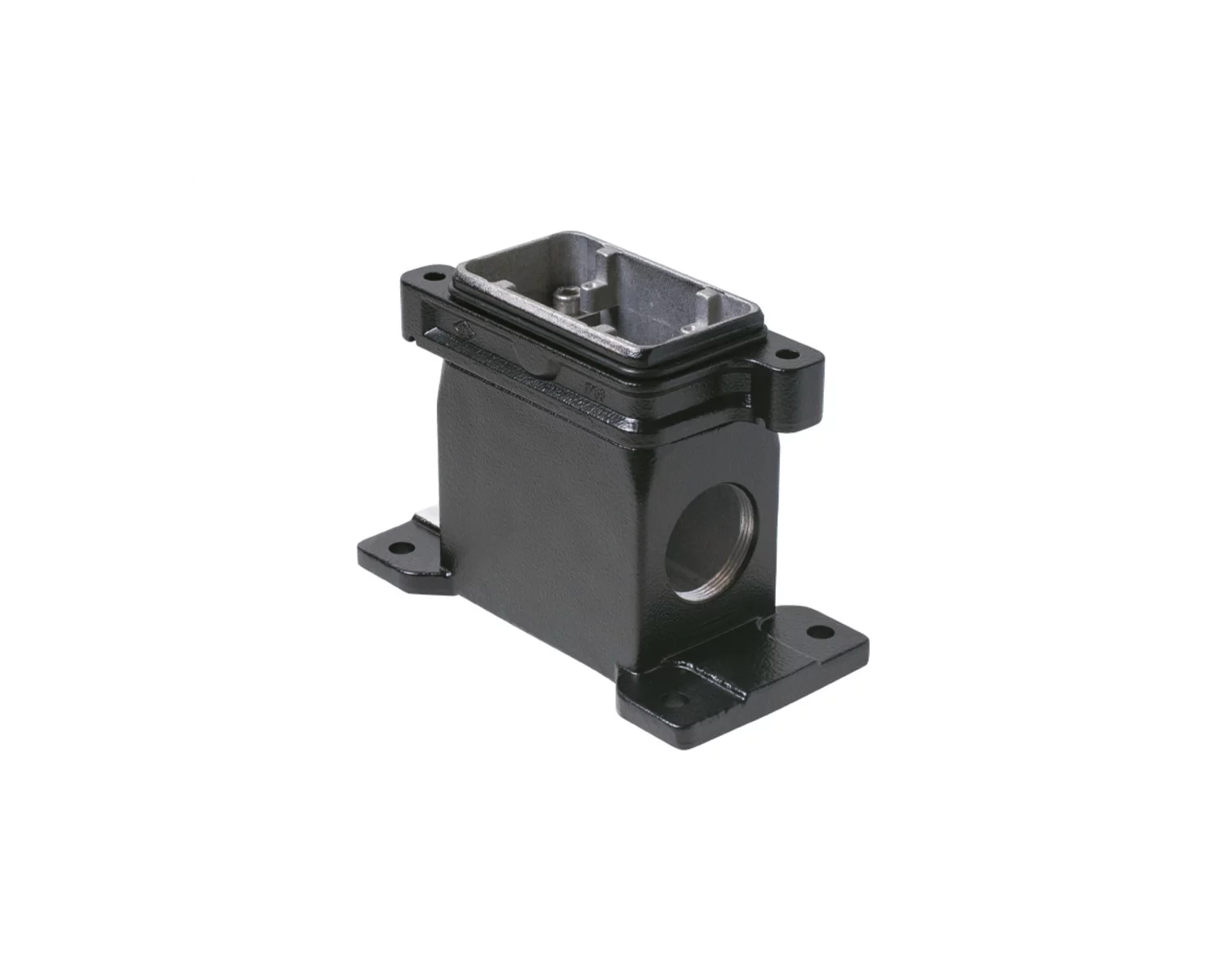

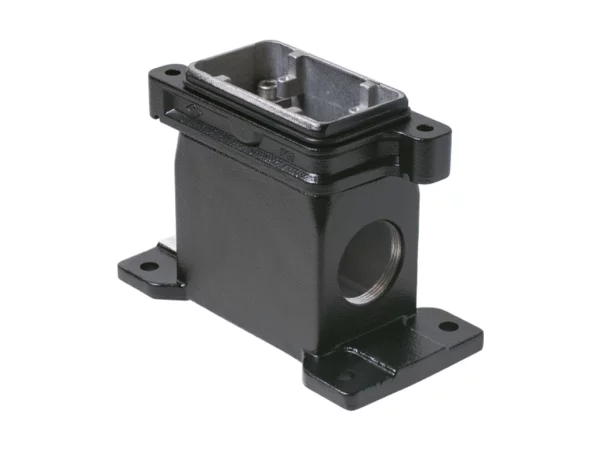

surface mounting housing, size 77.27, IP68 alu, screw locking, 1xM40 side
MGP 16.40
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 77.27 |
| Enclosure series | IP68 |
| Closing type | With 2 screws |
| Locking mechanism | With 2 screws |
| Protection degree | IP66 / IP68 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M40 |
| Position cable feed | Side entry |

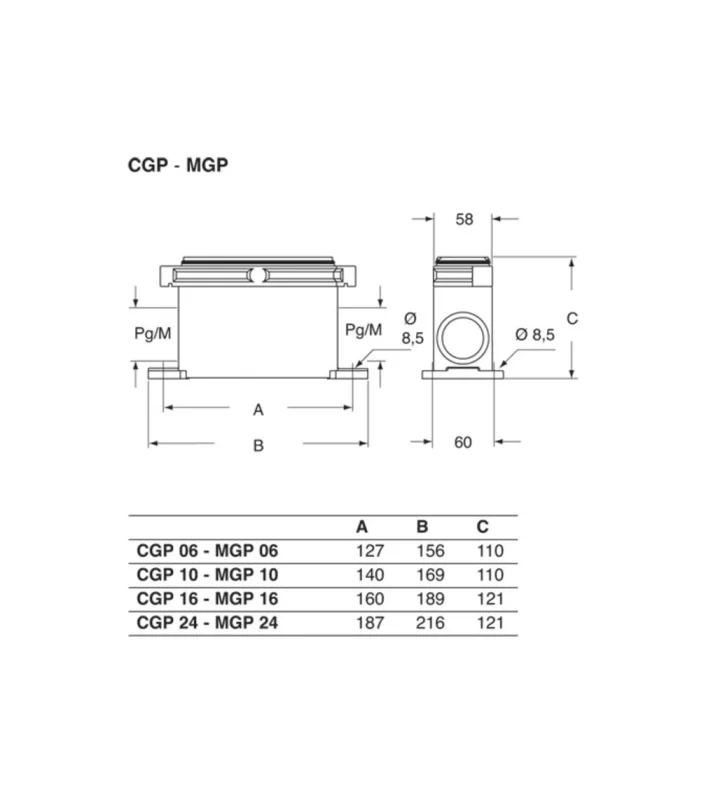

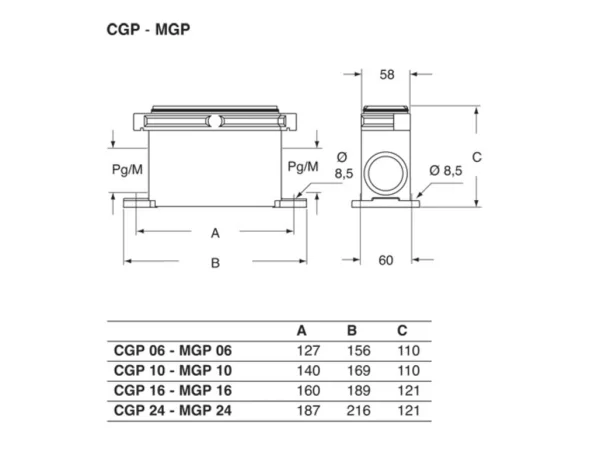

| Height | 121 mm |
| Width | 58 mm |
| Length | 189 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
