hood, size 104.27, EMC alu, 4 pegs, 1xM25 top
MHVS 24.25
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 104.27 |
| Enclosure series | EMC |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M25 |
| Position cable feed | Top entry |

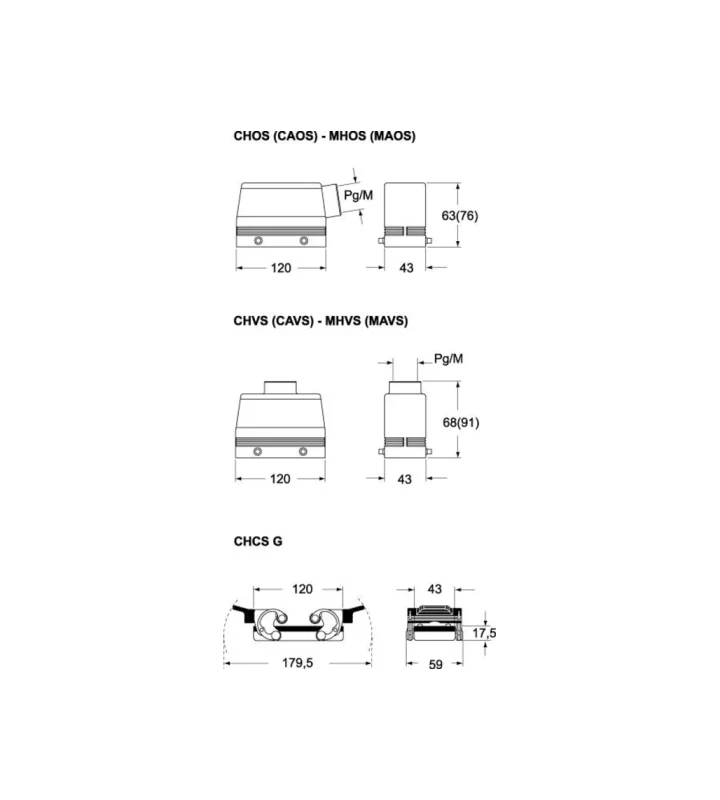

| Height | 68 mm |
| Width | 43 mm |
| Length | 120 mm |
Material
| Material housing | Aluminium |
|---|---|
| Coating housing | With powder coating |
| Extra information | Corrosion resistant,EMC Version,UV resistant,With interlocking device |
