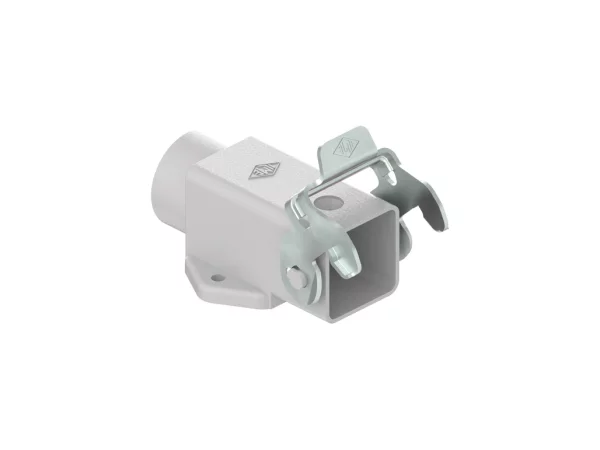

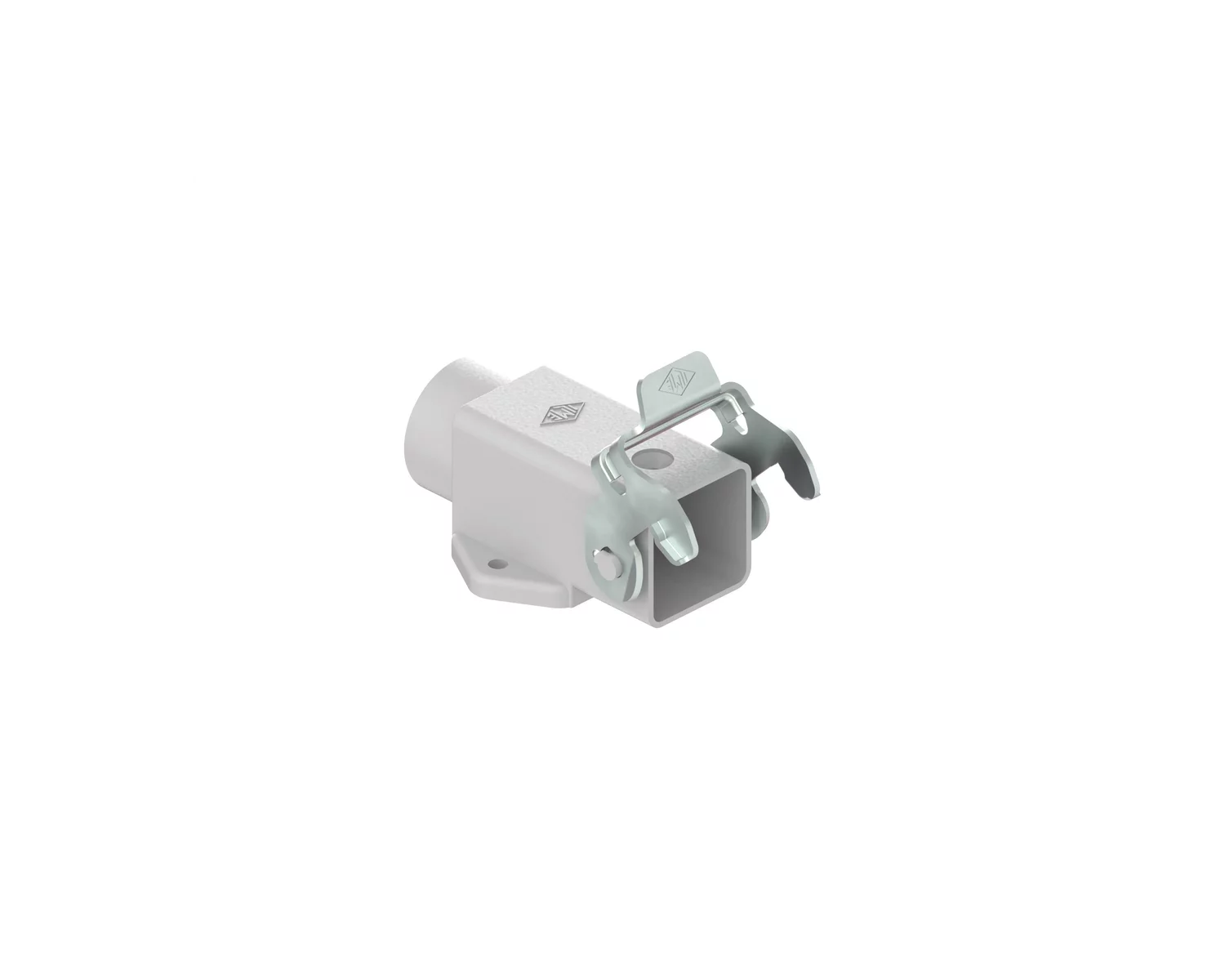

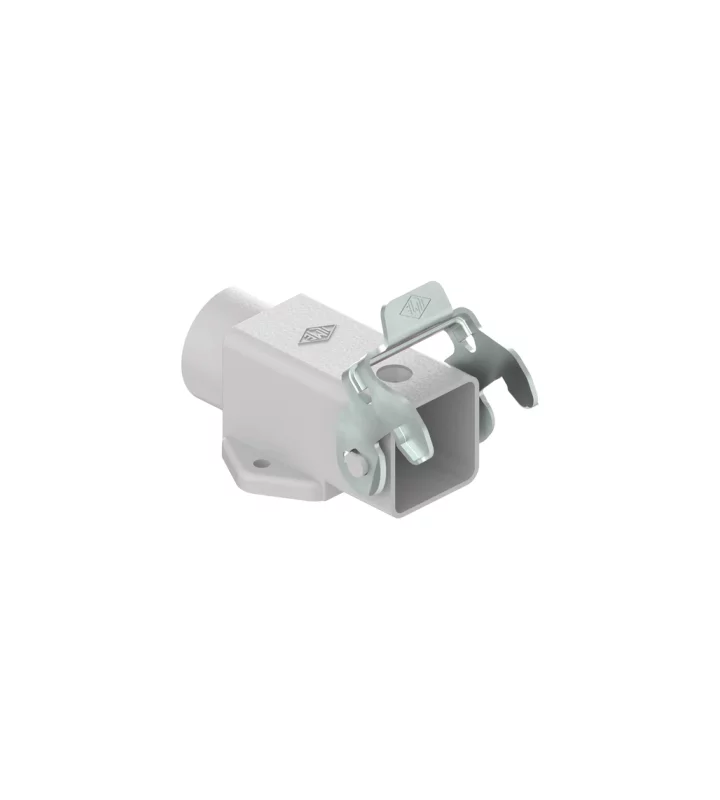

surface mounting housing, angled, size 21.21, zinc, 1 lever steel, 1xM20 side, closed bottom
MKA AP20
Stel je connector verder samen
Voeg de gewenste accessories en standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Angled surface mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | CKA |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M20 |
| Position cable feed | Side entry |
| Height | 46.5 mm |
| Width | 40 mm |
| Length | 46 mm |
Material
| Material housing | Zinc die-cast |
|---|---|
| Coating housing | With powder coating |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
