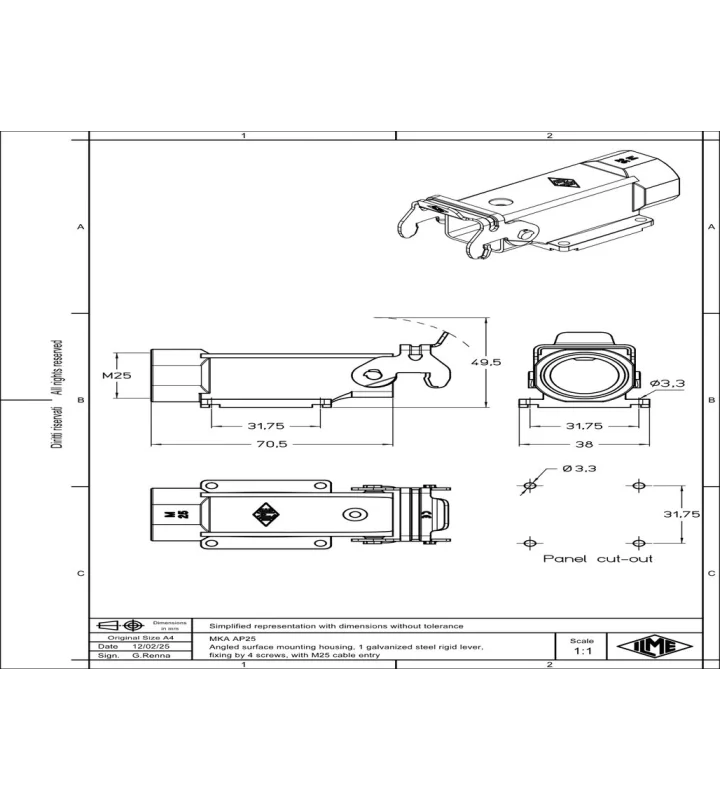

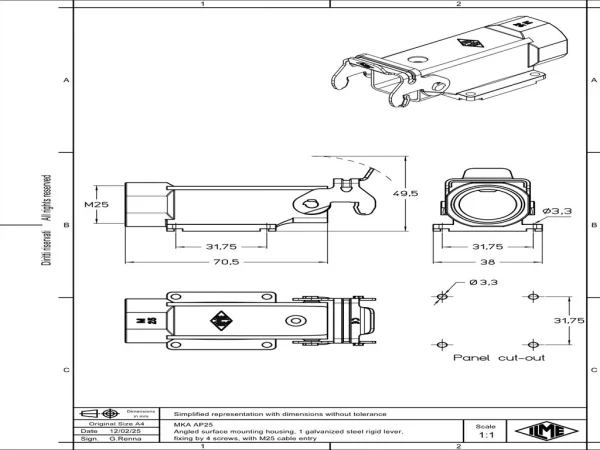

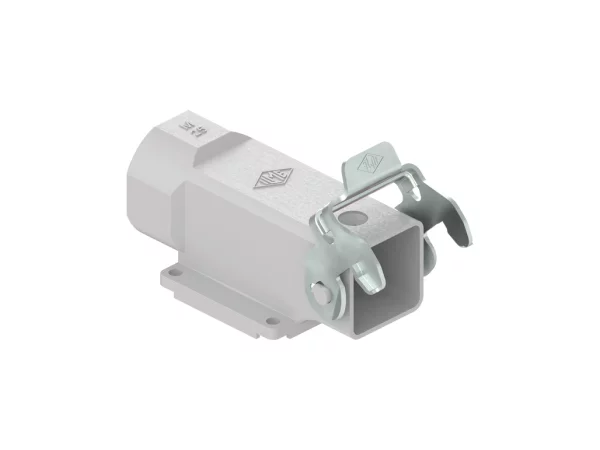

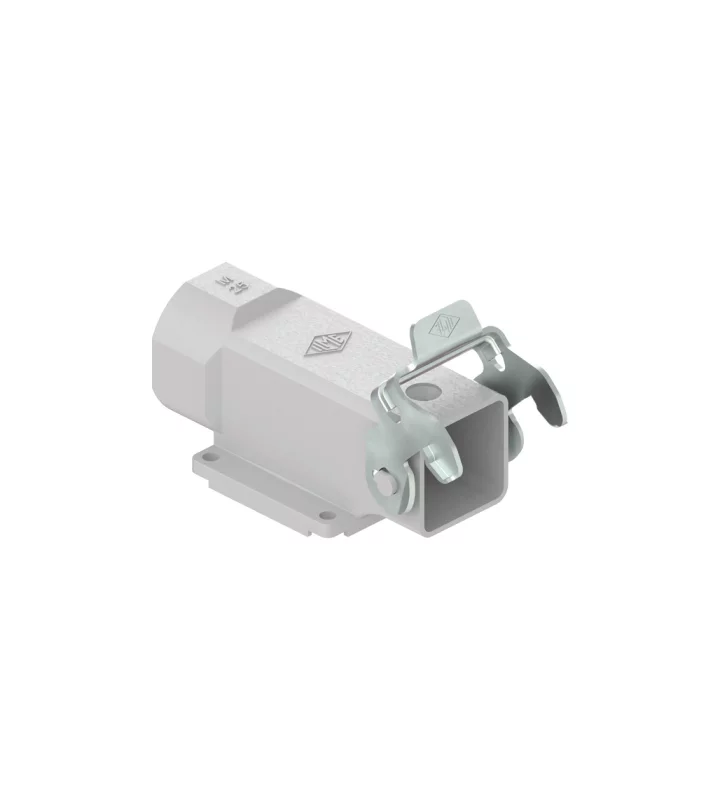

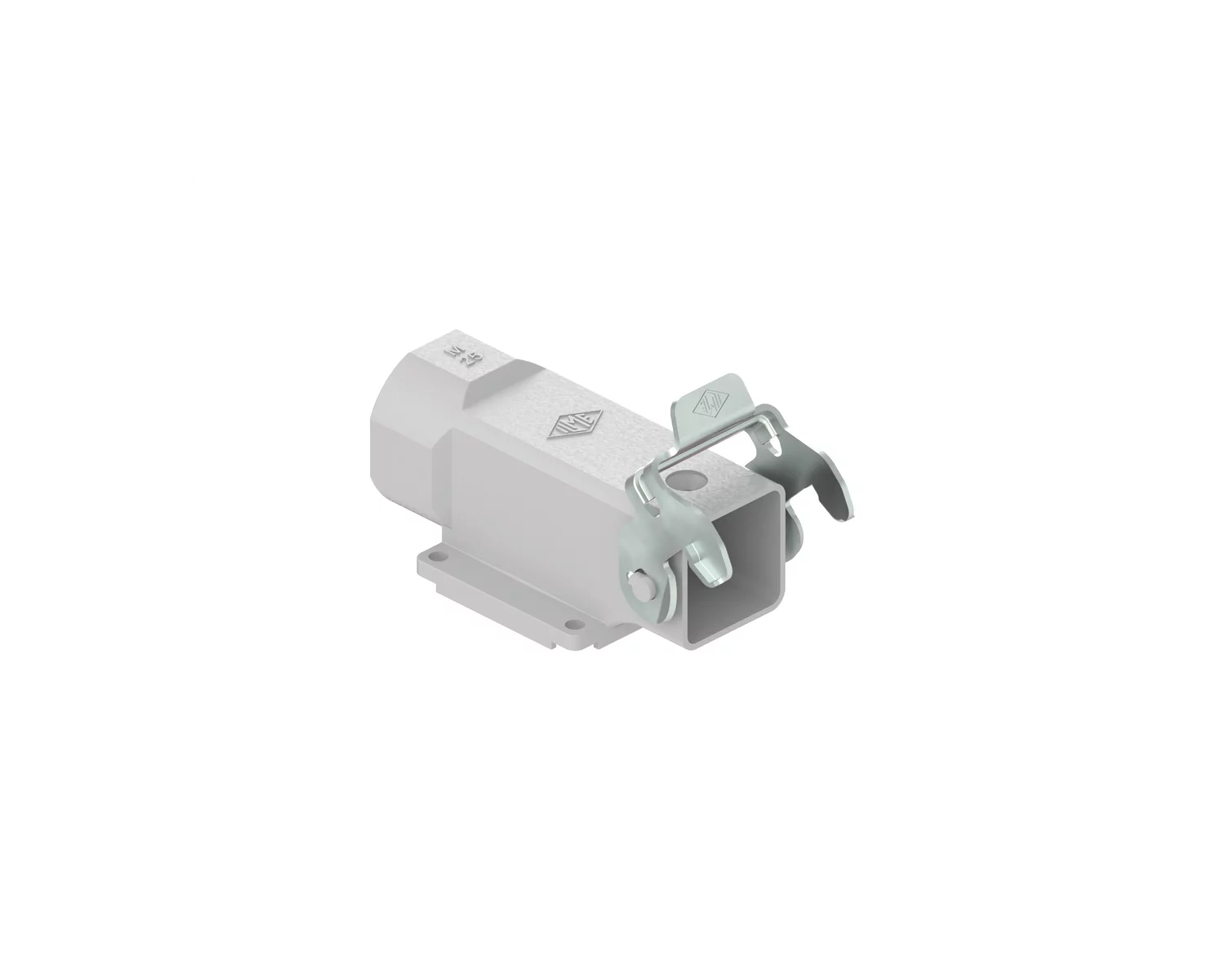

surface mounting housing, angled, size 21.21, zinc, 1 lever steel, 1xM25 side, closed bottom
MKA AP25
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Angled surface mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | CKA |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M25 |
| Position cable feed | Side entry |
| Height | 49.5 mm |
| Width | 38 mm |
| Length | 70.5 mm |
Material
| Material housing | Zinc die-cast |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
