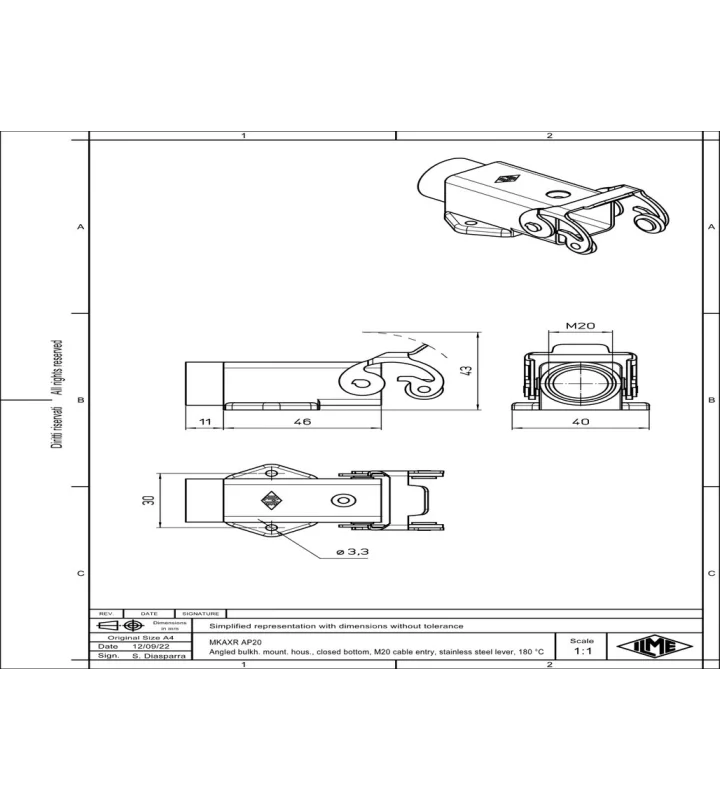

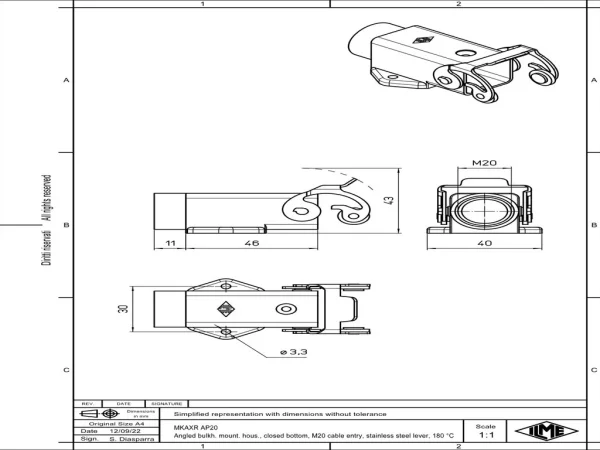

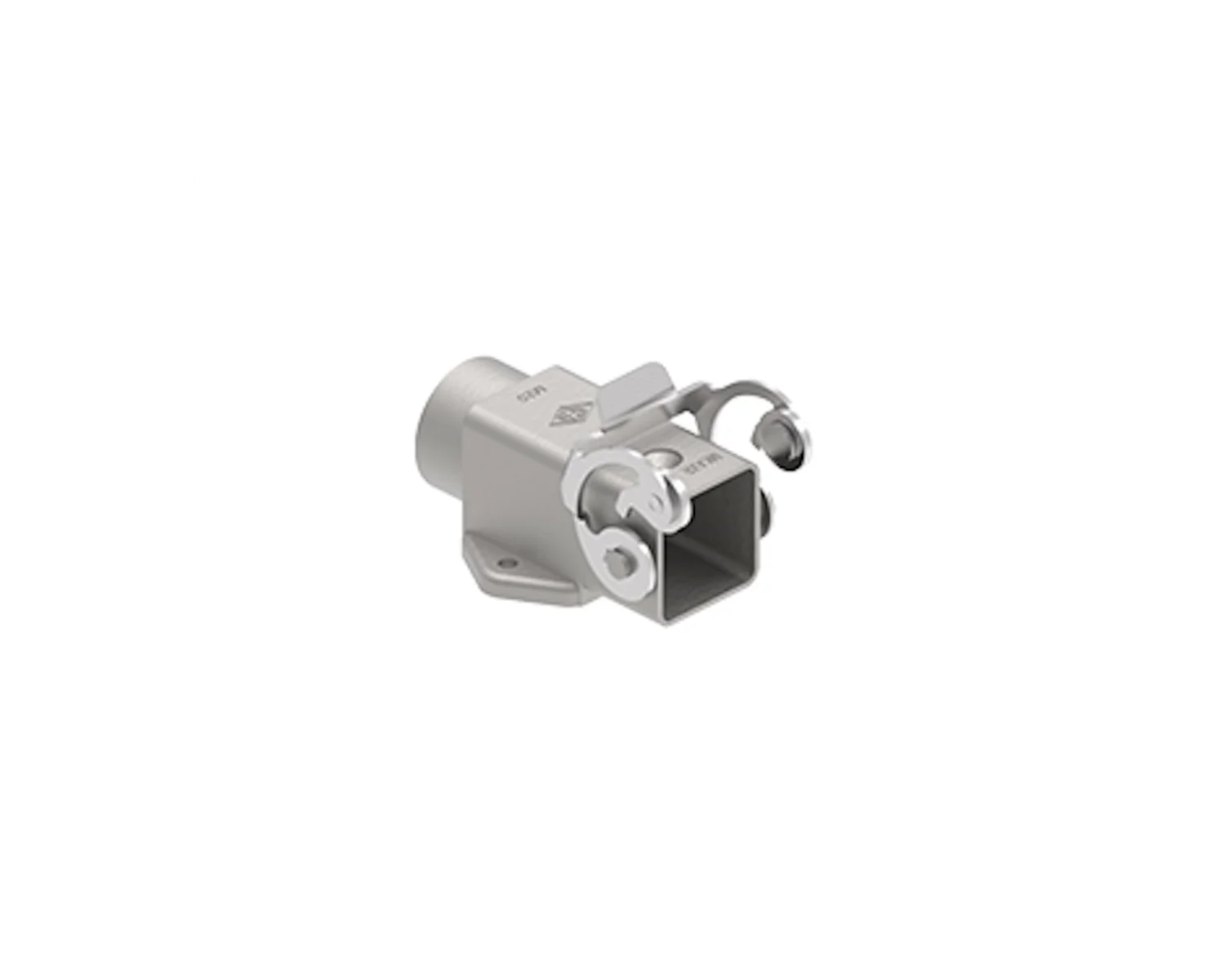

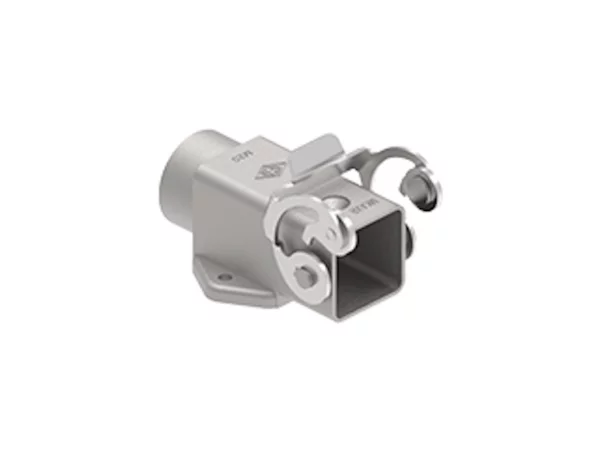

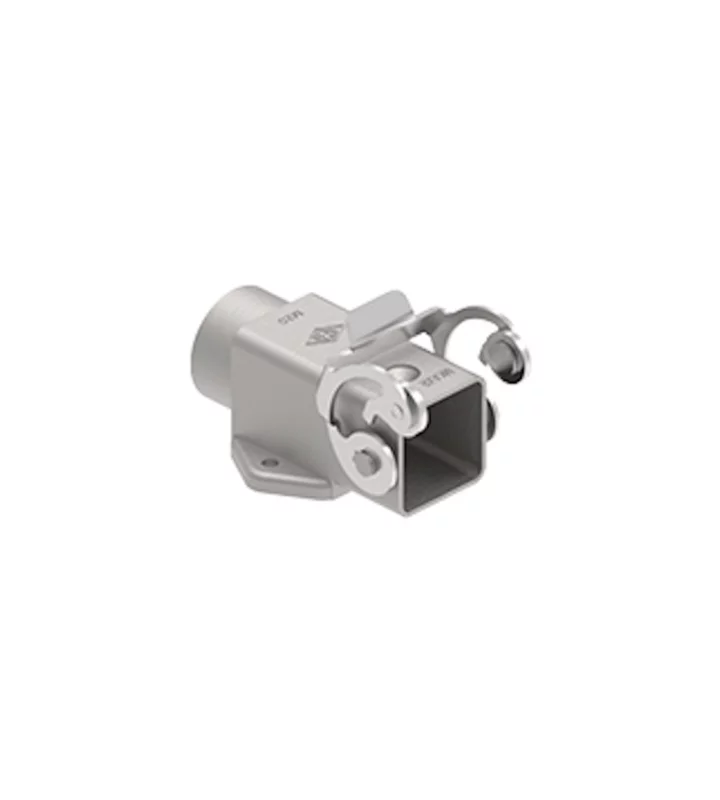

bulkhead mounting housing, angled, size 21.21, 180°C zinc, 1 lever stainless steel, 1xM20 side, closed bottom
MKAXR AP20
Stel je connector verder samen
Voeg de gewenste accessories en standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Angled bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | 180°C |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 180 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 180 °C |
| Cable entry type | side cable entry |
| Cable entry size | M20 |
| Position cable feed | Side entry |
| Height | 43.5 mm |
| Width | 40 mm |
| Length | 53 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With special thermosetting powder coating with high resistance to high temperatures |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
