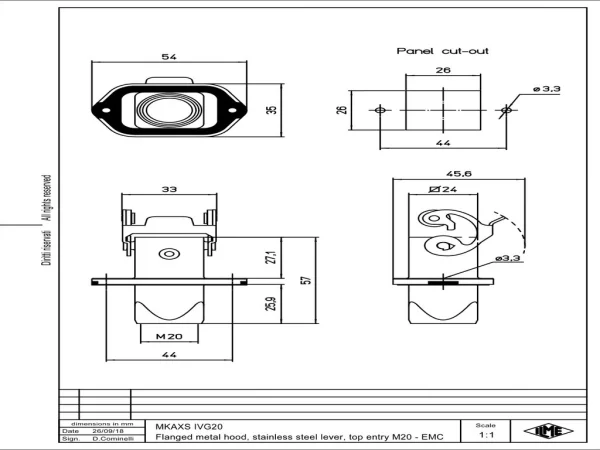

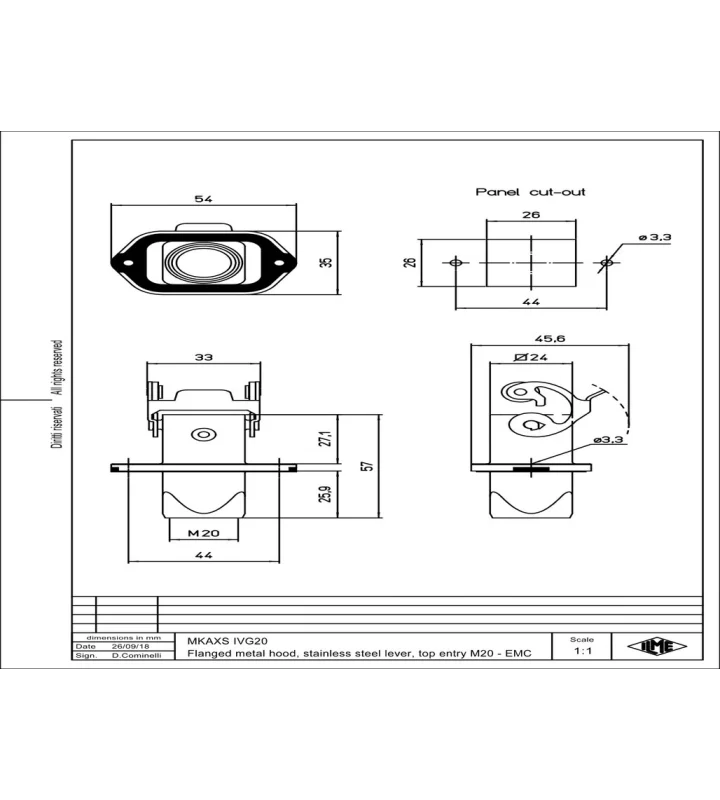

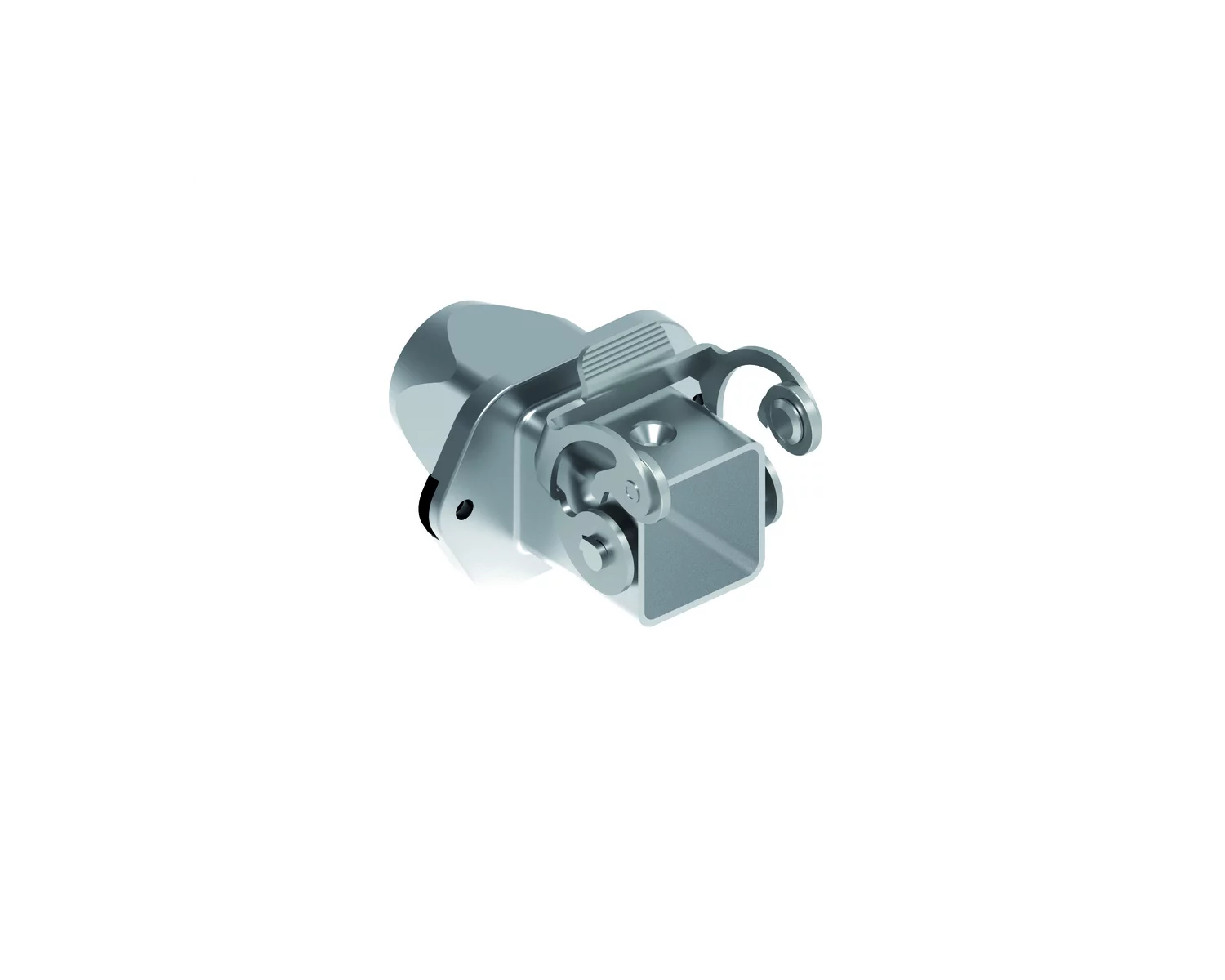

bulkhead mounting housing, size 21.21, EMC zinc, 1 lever stainl. steel, 1xM20 rear

MKAXS IVG20

Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.

Enclosure type	Bulkhead mounting housing
Size	21.21
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP44 \| IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	rear cable entry
Cable entry size	M20
Position cable feed	Below
Height	57 mm
Width	24 mm
Length	33 mm

Material housing	Zinc die-cast
Coating housing	Chromate coating
