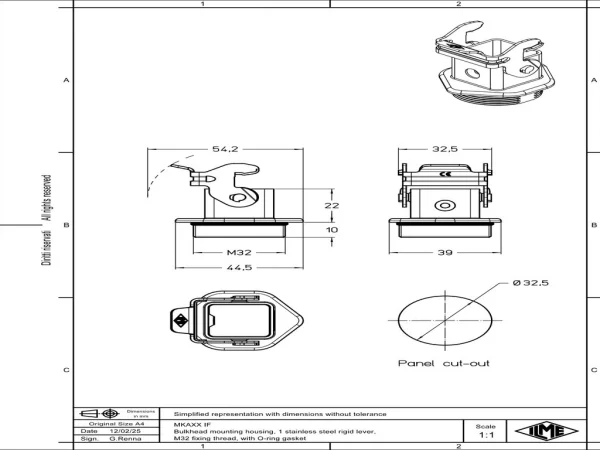

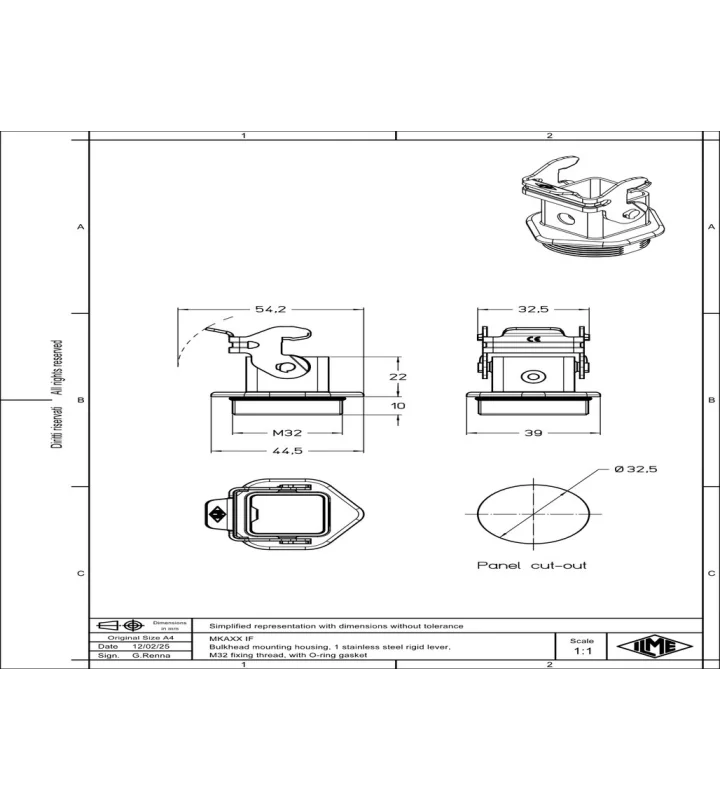

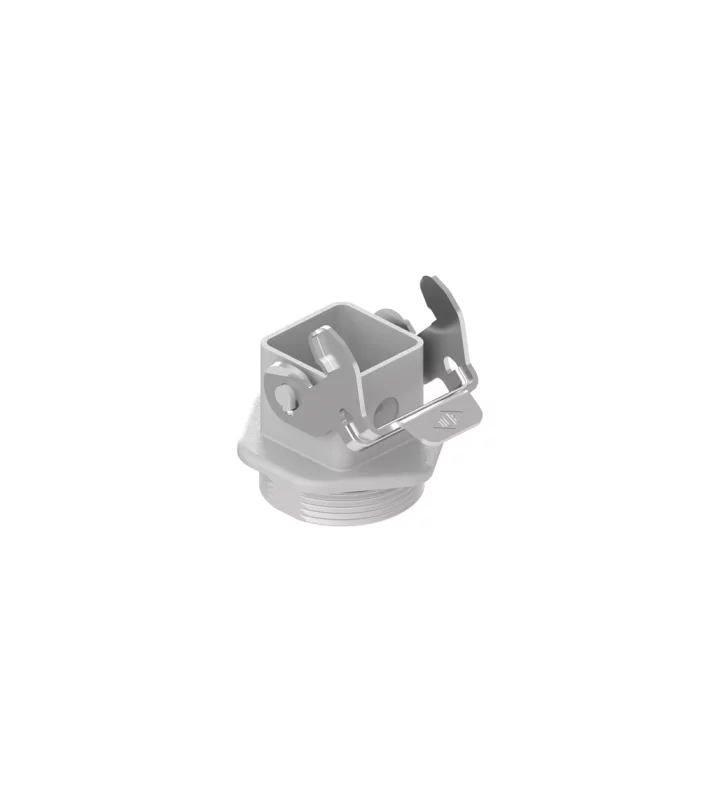

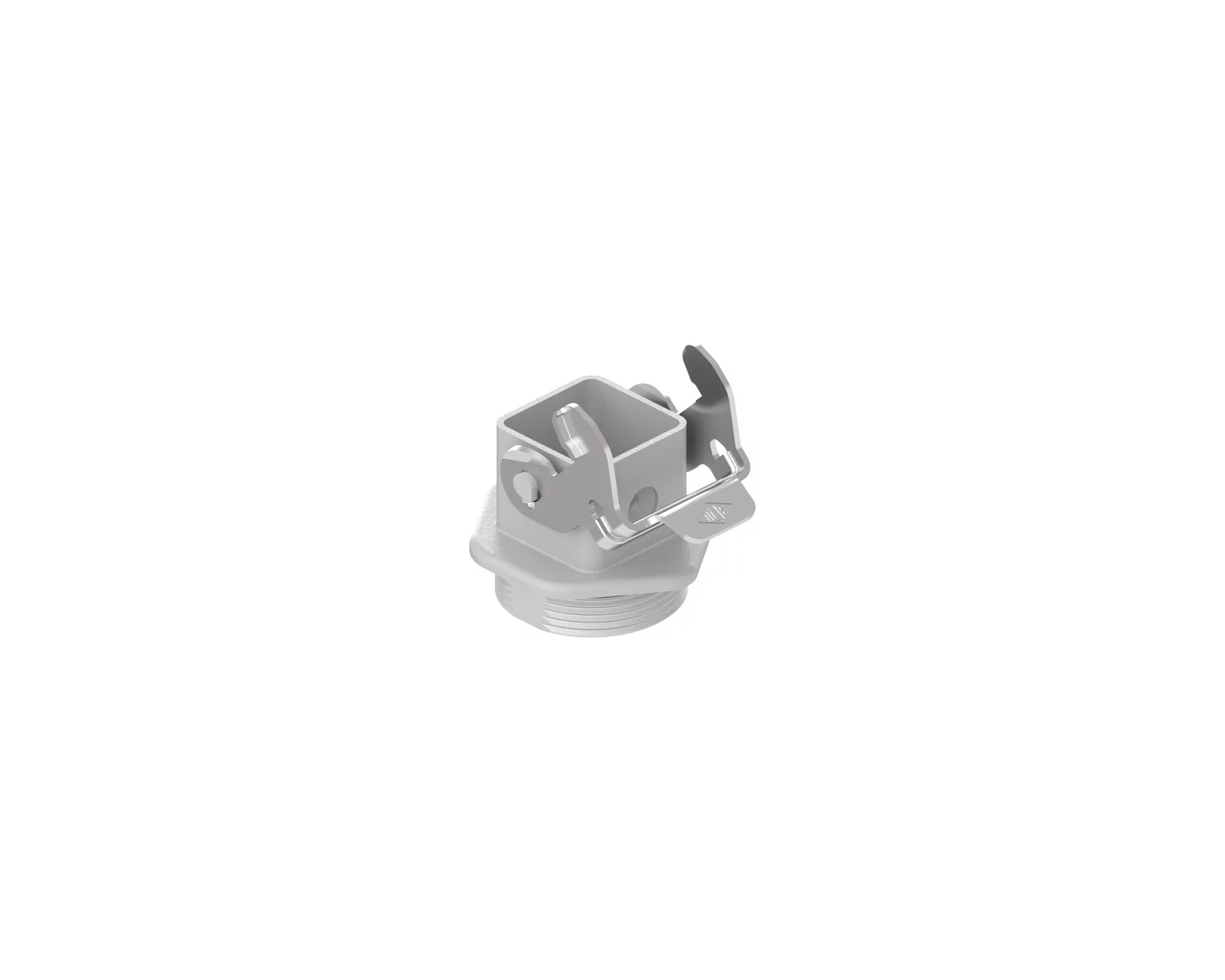

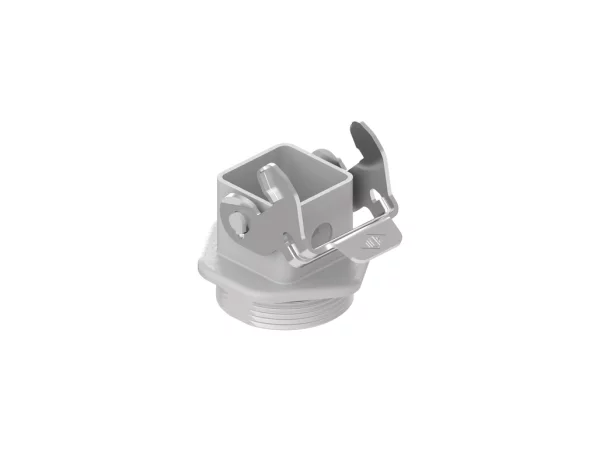

bulkhead mounting housing, size 21.21, CKA zinc, 1 rigid lever stainless steel, 1xM32 external
MKAXX IF
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | CKA |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | round threaded appendix |
| Cable entry size | M32 |
| Position cable feed | Below |
| Height | 22 mm |
| Width | 39 mm |
| Length | 44.5 mm |
Material
| Material housing | Zinc die-cast |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
