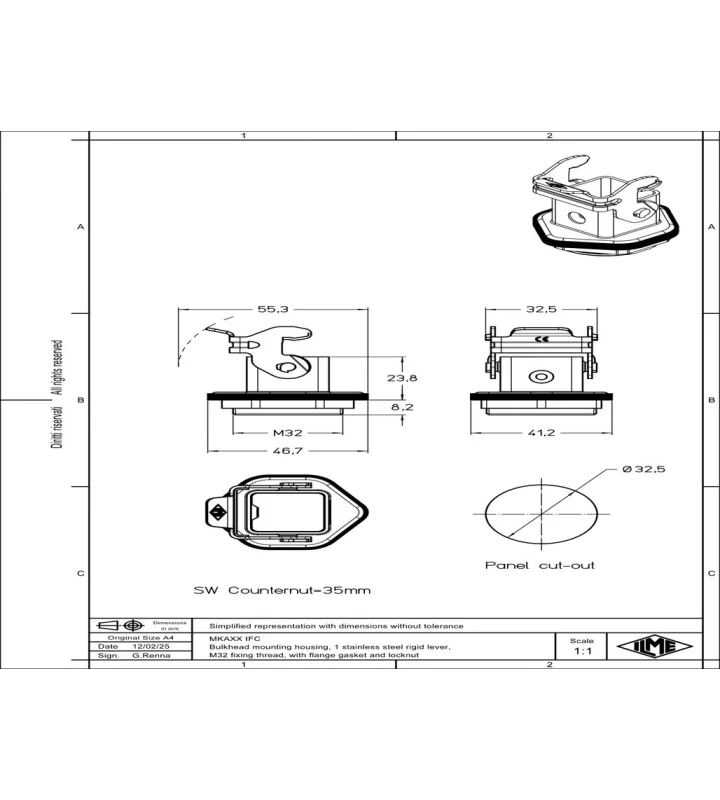

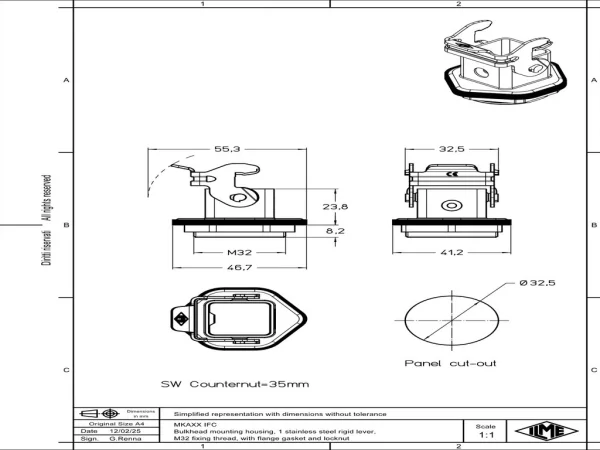

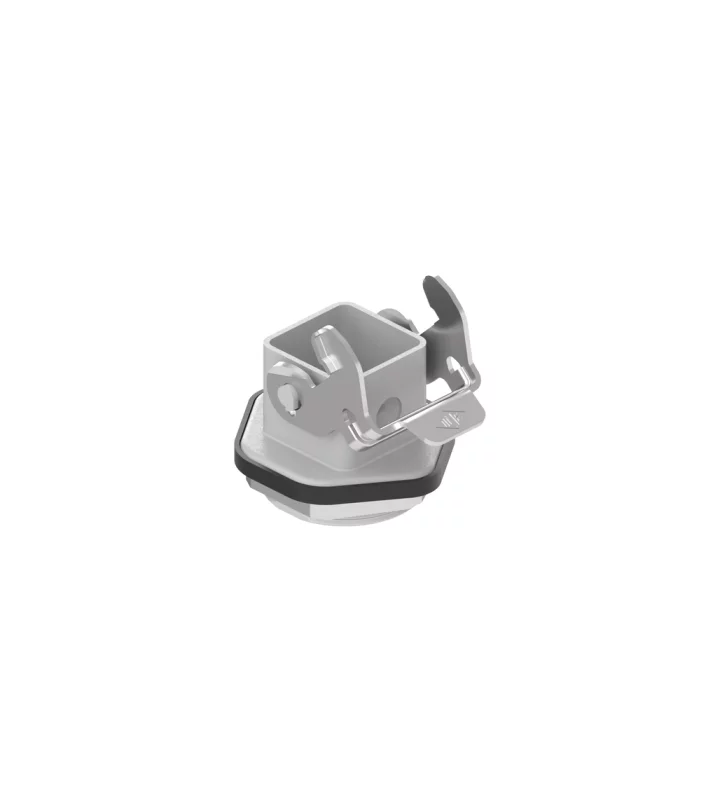

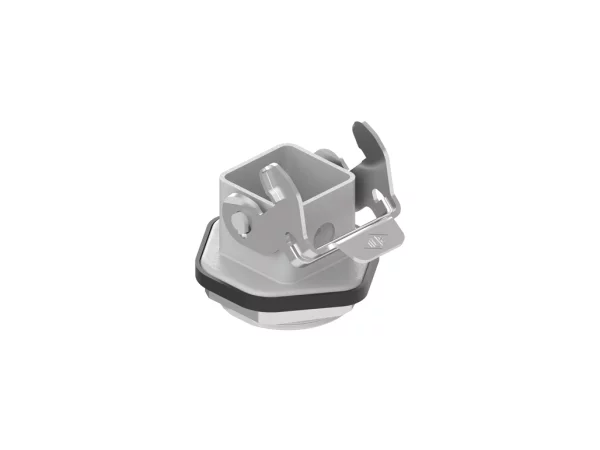

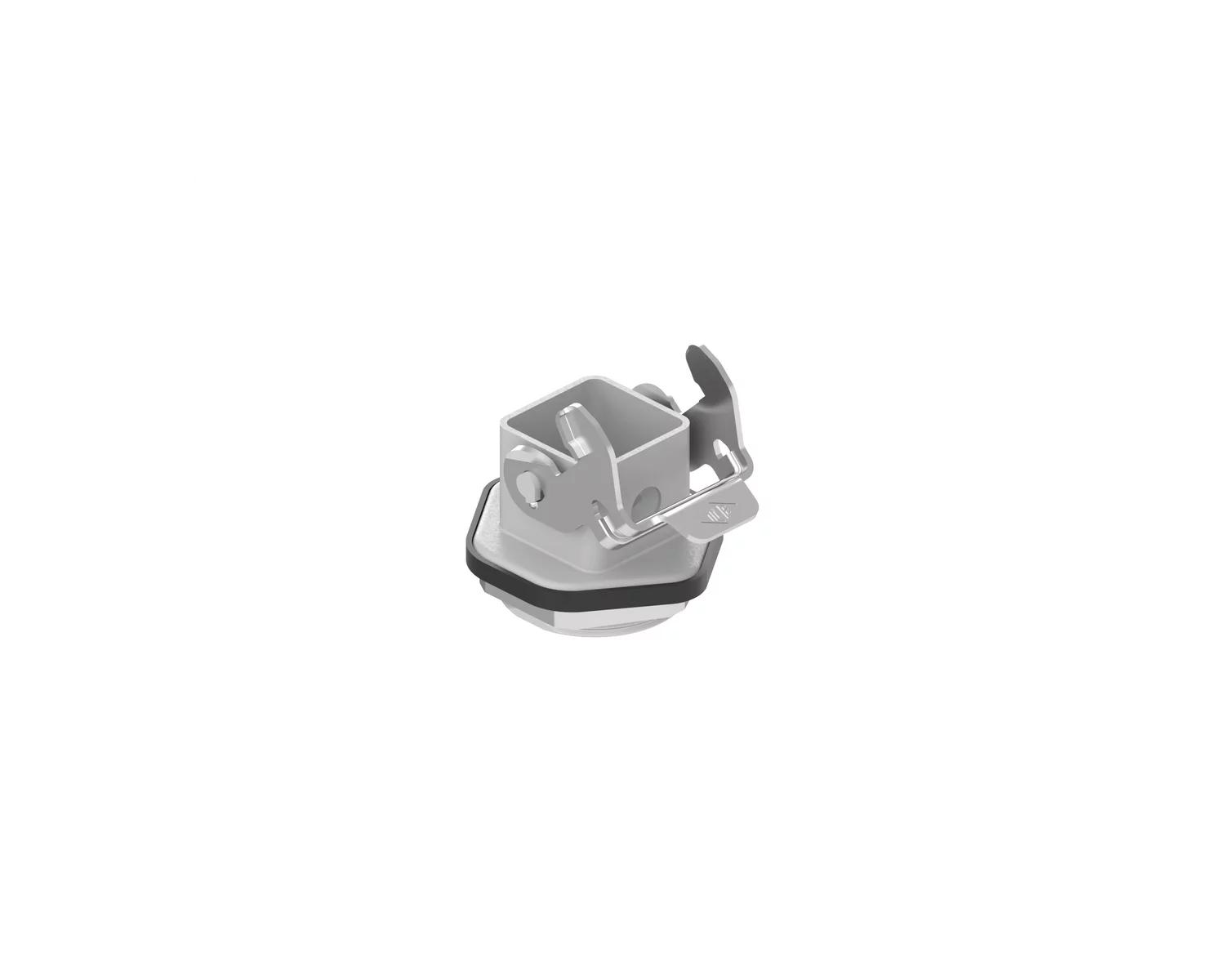

bulkhead mounting housing, size 21.21, CKA zinc, 1 rigid lever stainless steel, 1xM32 external, profiled gasket
MKAXX IFC
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | CKA |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | round threaded appendix |
| Cable entry size | M32 |
| Position cable feed | Below |
| Height | 23.8 mm |
| Width | 41.2 mm |
| Length | 46.7 mm |
Material
| Material housing | Zinc die-cast |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
