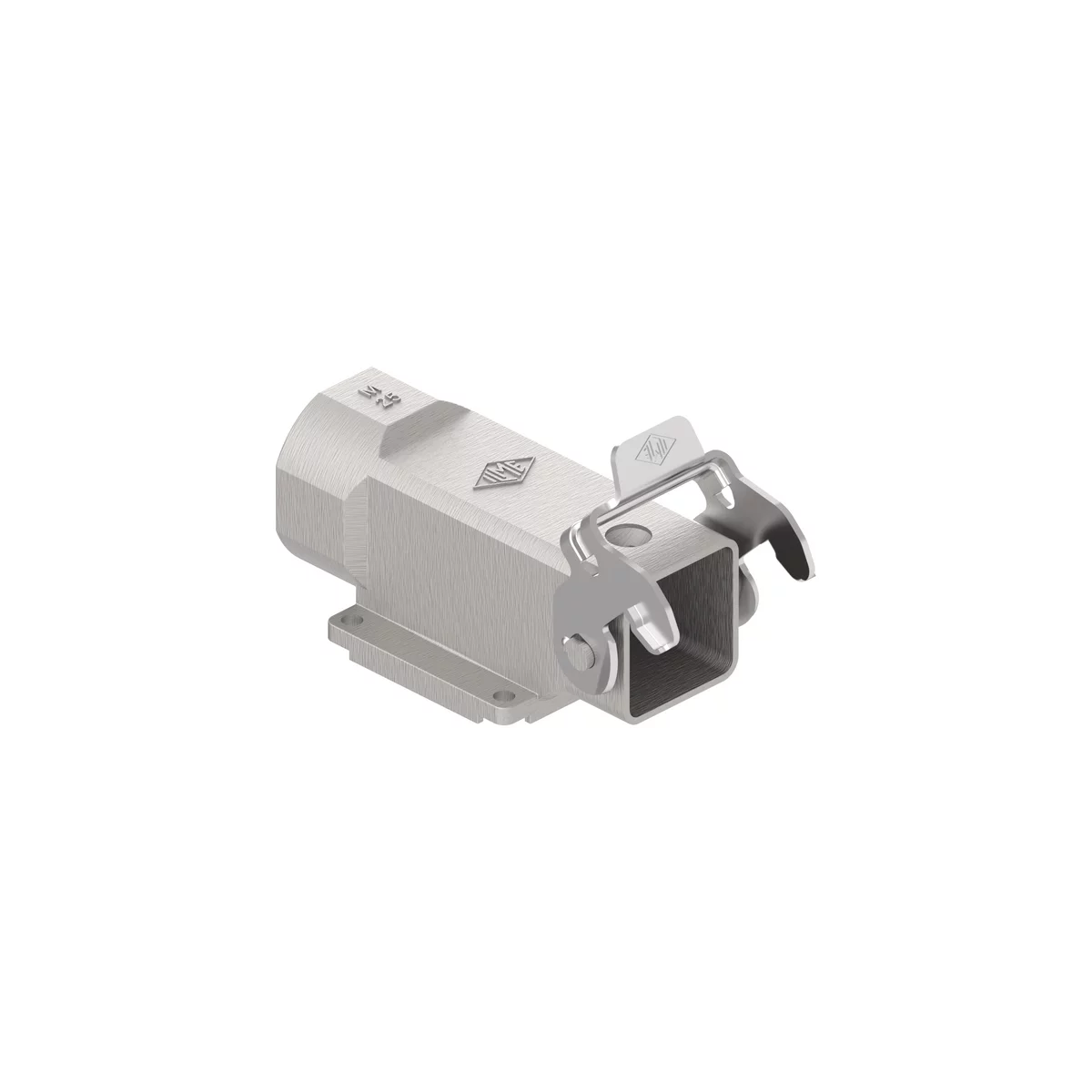

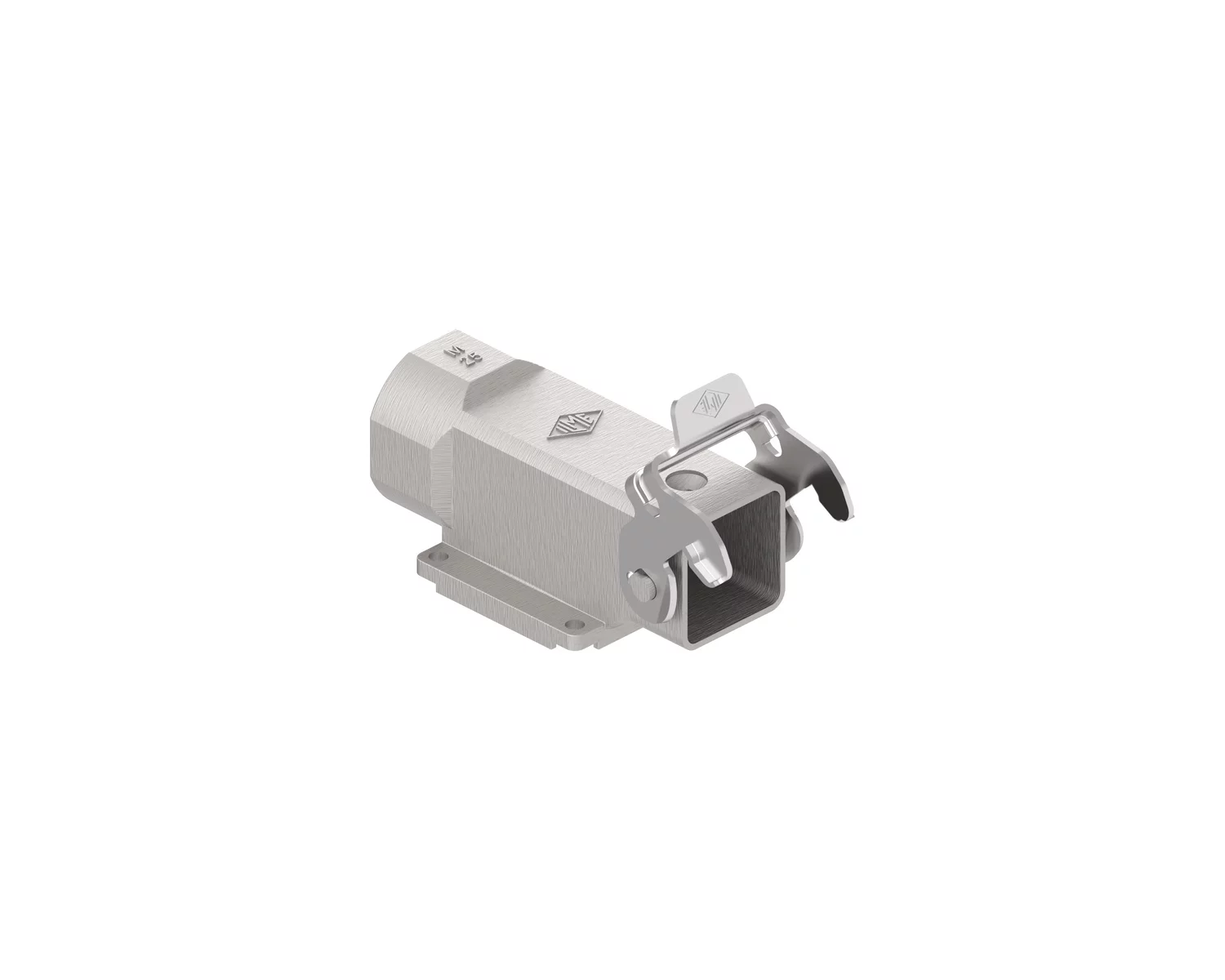

surface mounting housing, angled, size 21.21, EMC zinc, 1 rigid lever stainless steel, 1xM25 side, closed bottom
MKAXXS AP25
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Angled surface mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | EMC |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M25 |
| Position cable feed | Side entry |

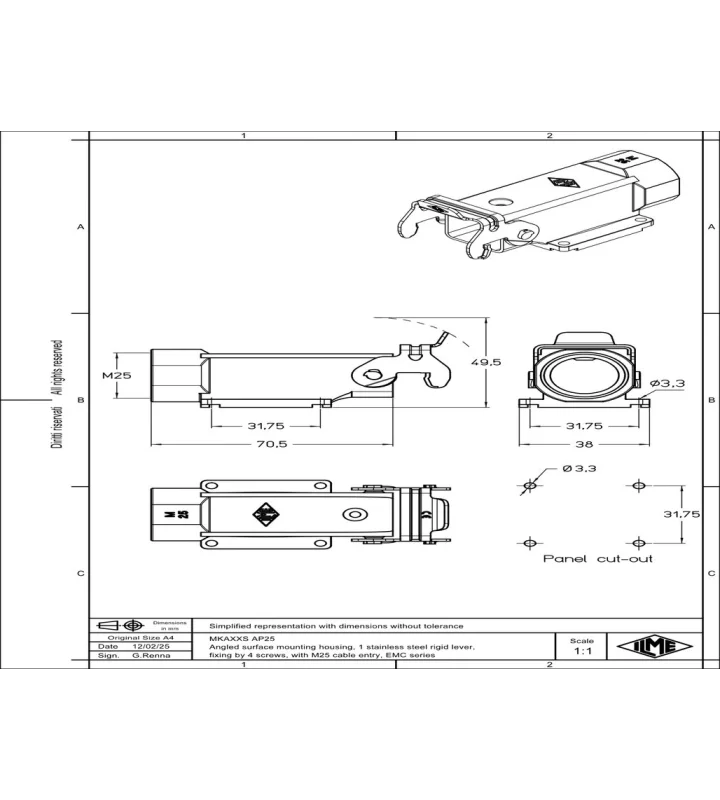

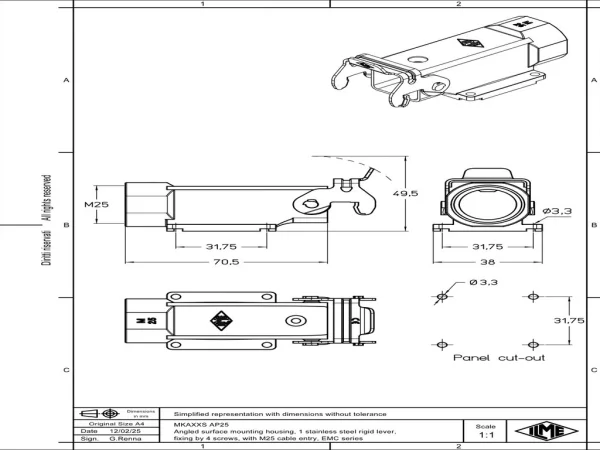

| Height | 49.5 mm |
| Width | 38 mm |
| Length | 70.5 mm |
Material
| Material housing | Zinc die-cast |
|---|---|
| Coating housing | Chromate coating |
