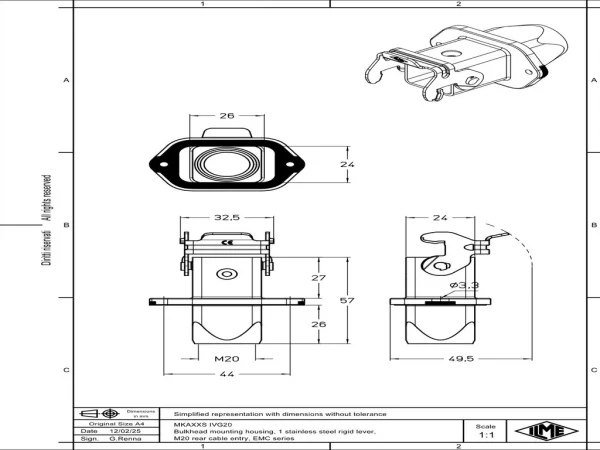

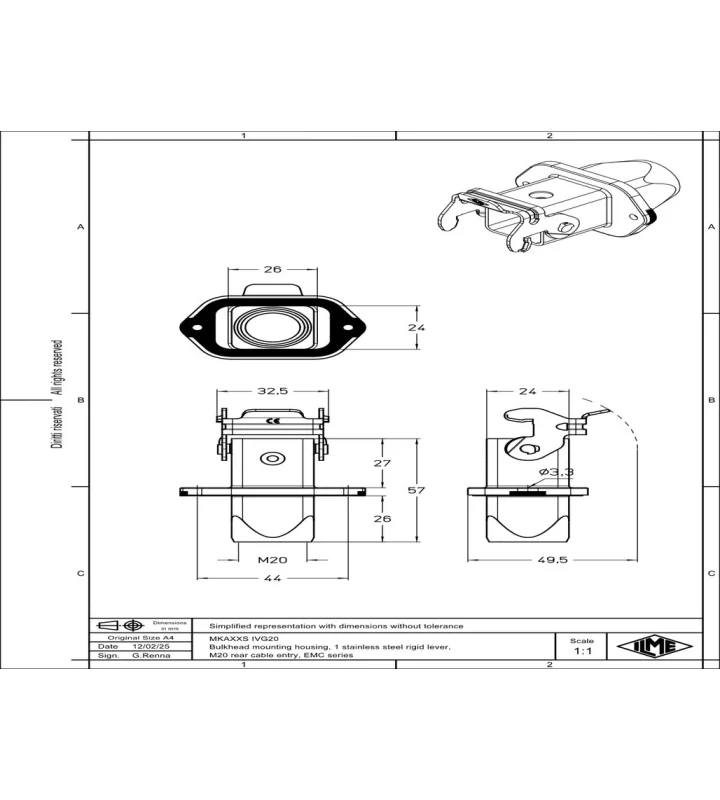

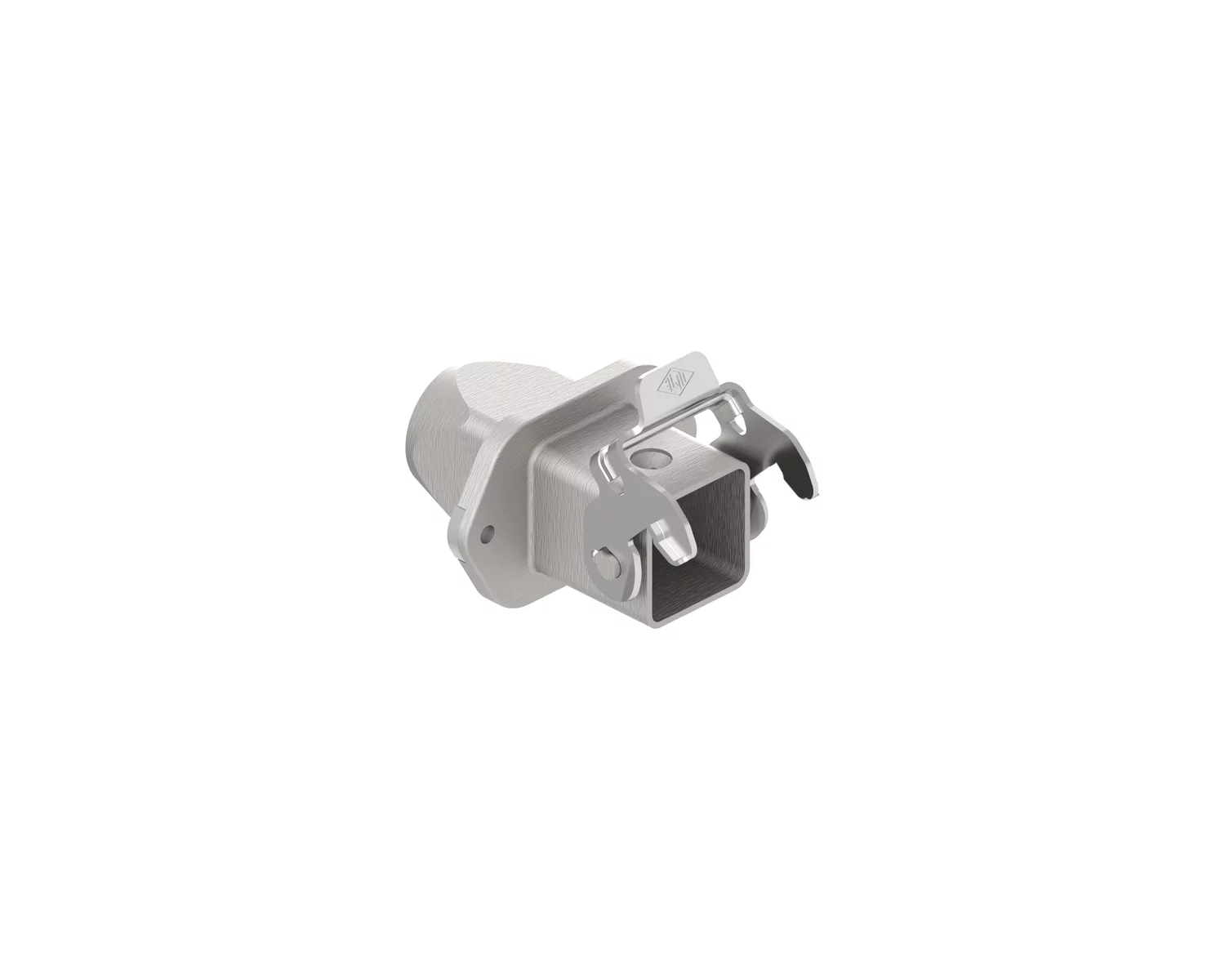

bulkhead mounting housing, size 21.21, EMC zinc, 1 lever stainless steel, 1xM20 rear
MKAXXS IVG20
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Bulkhead mounting housing |
|---|---|
| Size | 21.21 |
| Enclosure series | EMC |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | rear cable entry |
| Cable entry size | M20 |
| Position cable feed | Below |
| Height | 57 mm |
| Width | 24 mm |
| Length | 32.5 mm |
Material
| Material housing | Zinc die-cast |
|---|---|
| Coating housing | Chromate coating |
