hood, size 21.21, CKH plastic, 2 pegs, 1xM20 top, sealing kit

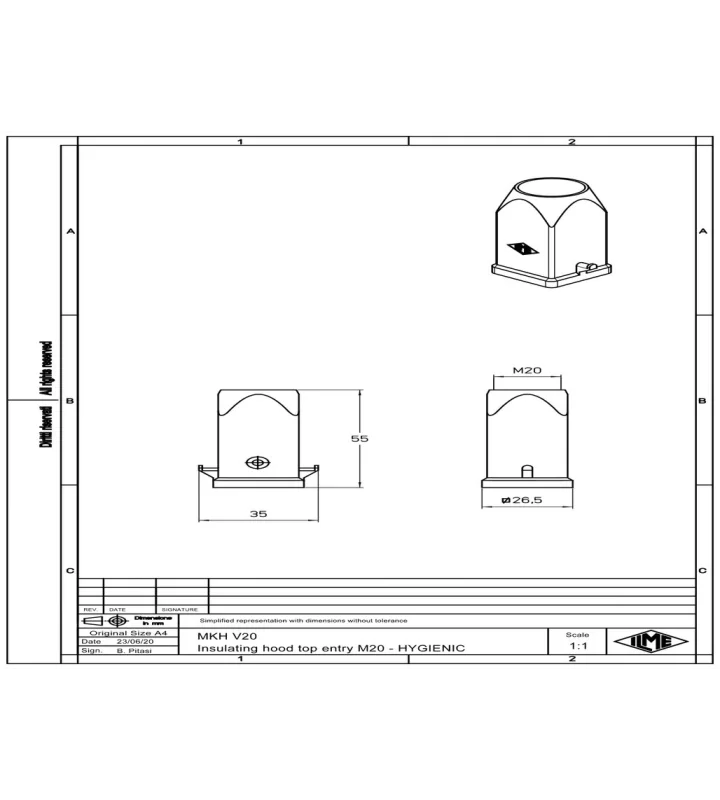

MKH V20
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 21.21 |
| Enclosure series | CKH |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP44 | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 70 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| Cable entry type | top cable entry |
| Cable entry size | M20 |
| Position cable feed | Top entry |
| Height | 55 mm |
| Width | 26.5 mm |
| Length | 35 mm |
Material
| Material housing | Polyamide |
|---|
