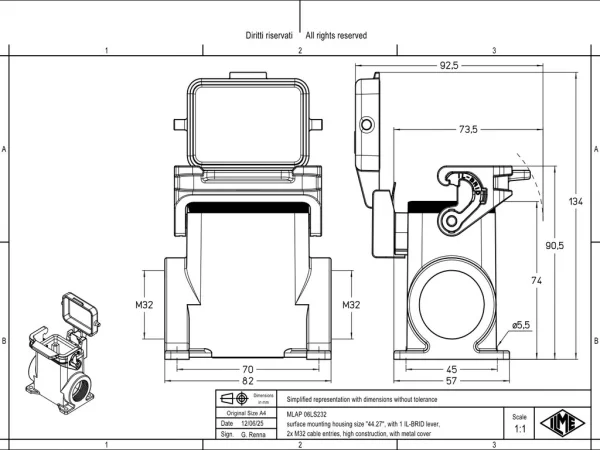

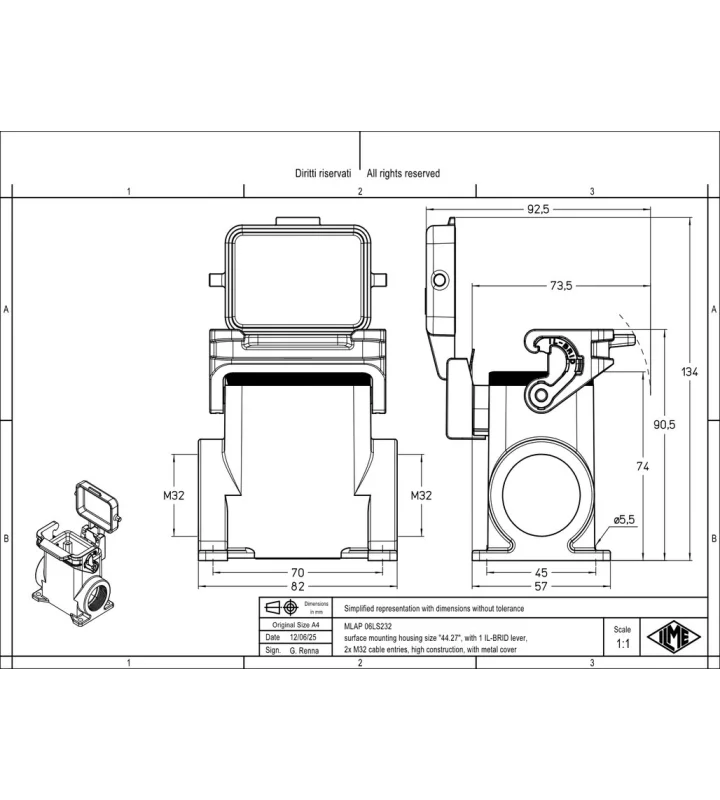

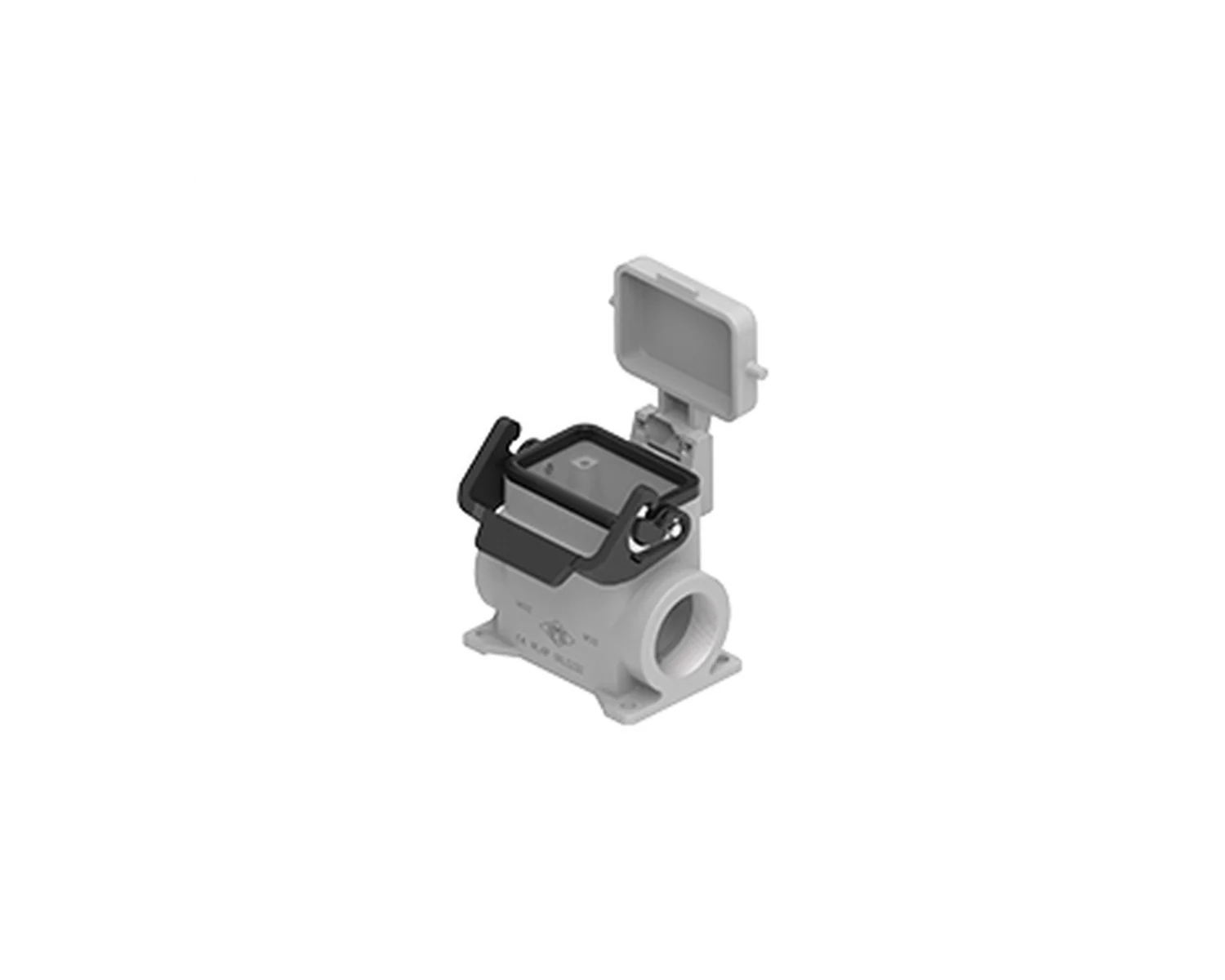

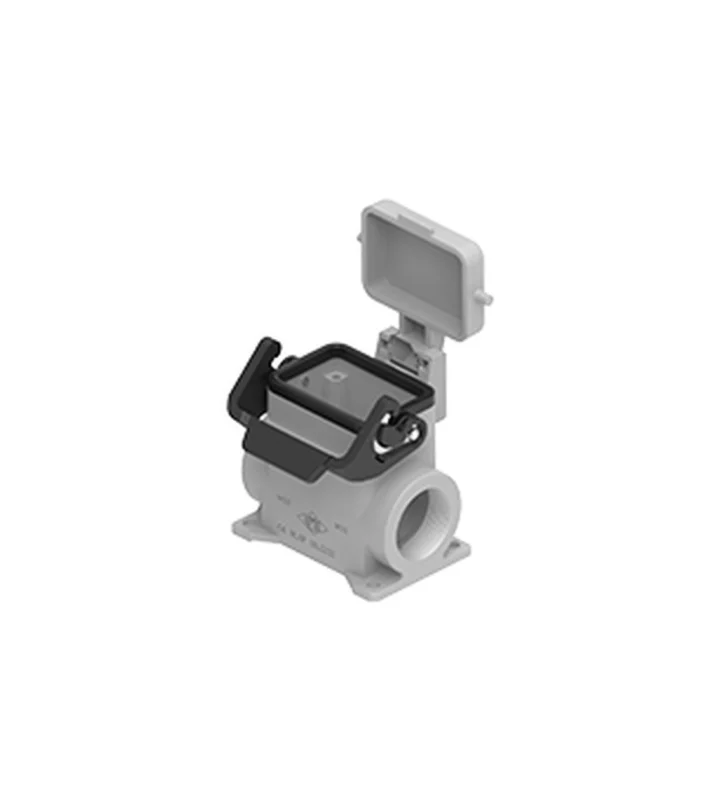

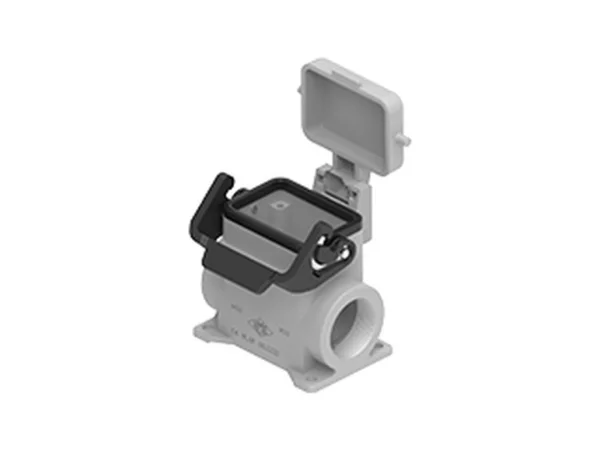

surface mounting housing, size 44.27, IL-BRID stainless steel, 1 lever, 2xM32 side
MLAP 06LS232
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 44.27 |
| Enclosure series | IL-BRID |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M32 x 2 |
| Position cable feed | Side entry |
| Height | 90.5 mm |
| Width | 57 mm |
| Length | 82 mm |
Material
| Material housing | Stainless steel |
|---|
