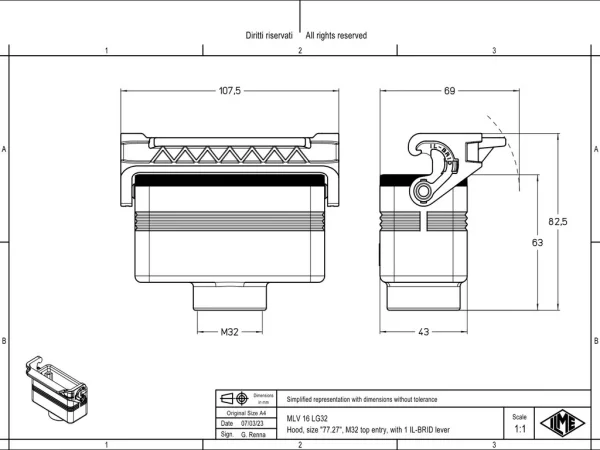

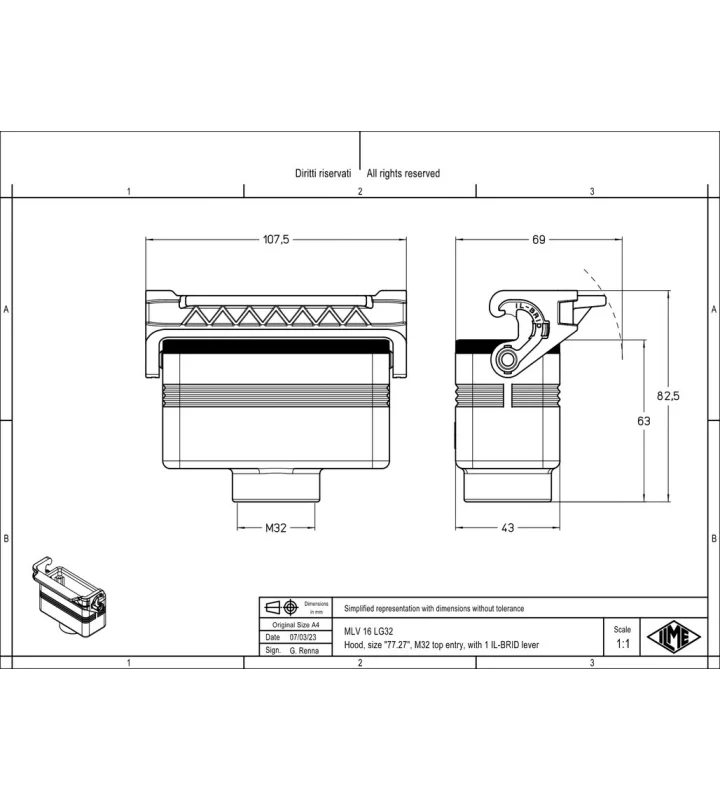

hood, size 77.27, IL-BRID stainless steel, 1 lever, 1xM32 top
MLV 16 LG32
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 77.27 |
| Enclosure series | IL-BRID |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry with adapter |
| Cable entry size | M32 |
| Position cable feed | Top entry |
| Height | 82.5 mm |
| Width | 43 mm |
| Length | 107.5 mm |
Material
| Material housing | Stainless steel |
|---|
