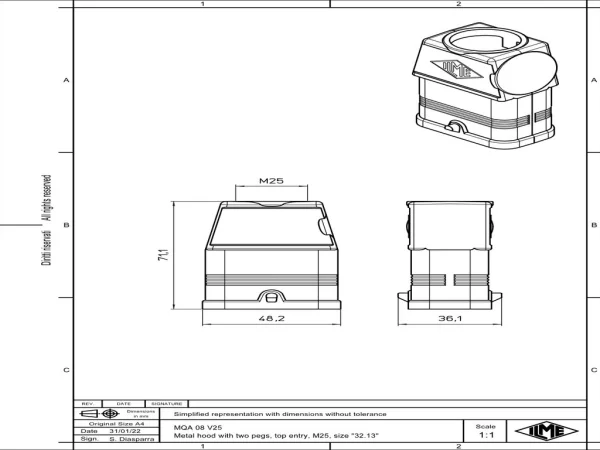

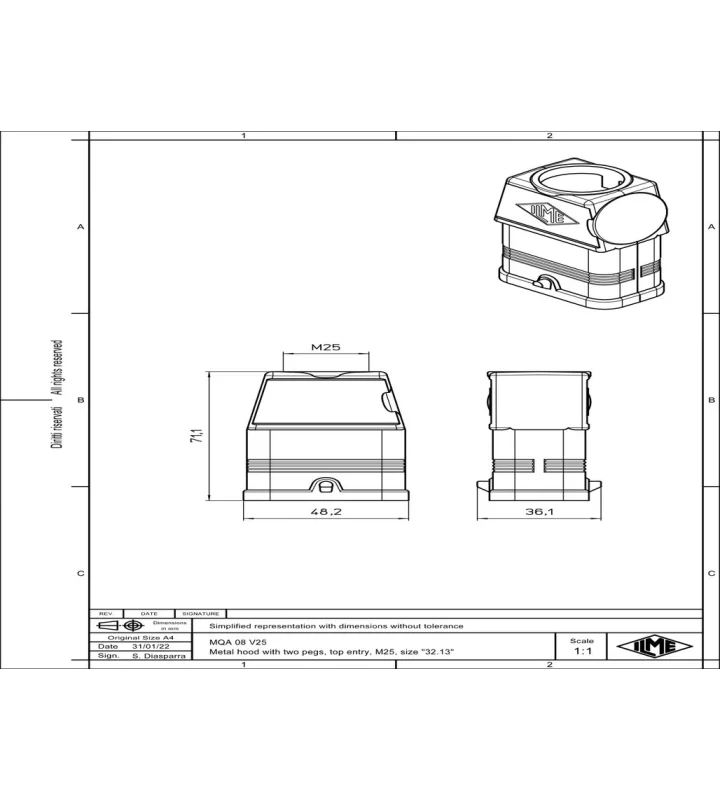

hood, size 32.13, CQ zinc, 2 pegs, 1xM25 top
MQA 08 V25
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 32.13 |
| Enclosure series | CQ |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP66 / IP67 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M25 |
| Position cable feed | Top entry |
| Height | 71.1 mm |
| Width | 36.1 mm |
| Length | 48.2 mm |
Material
| Material housing | Zinc die-cast |
|---|
