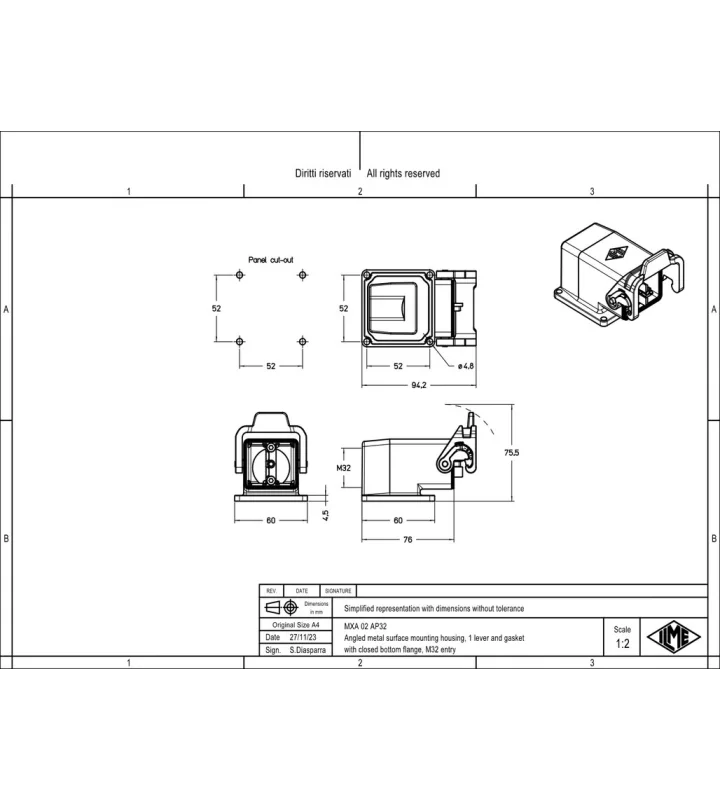

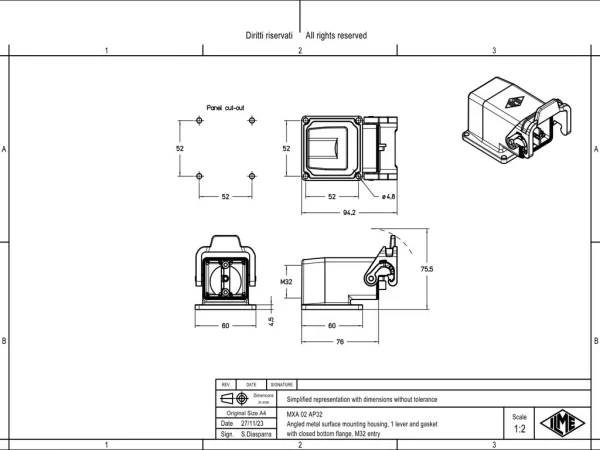

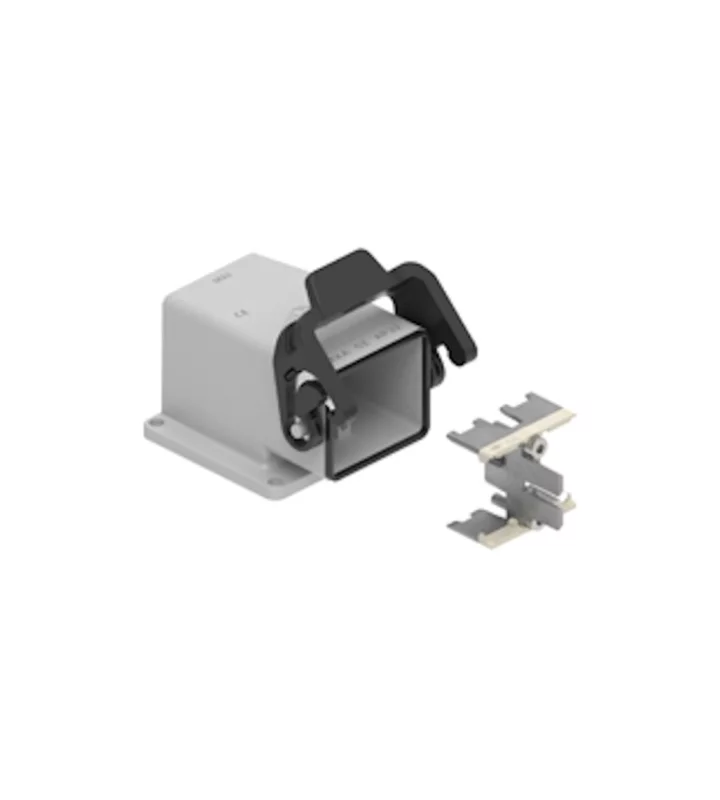

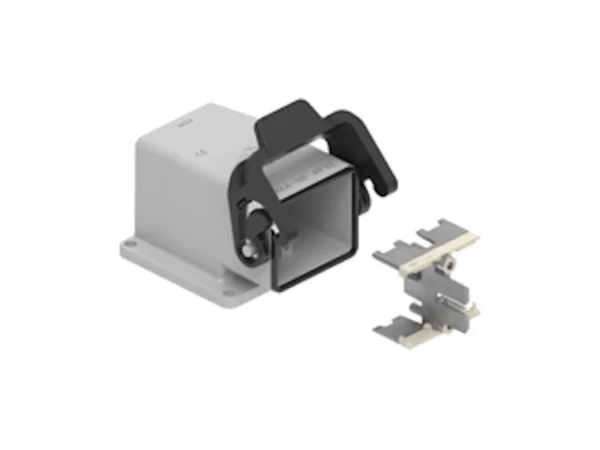

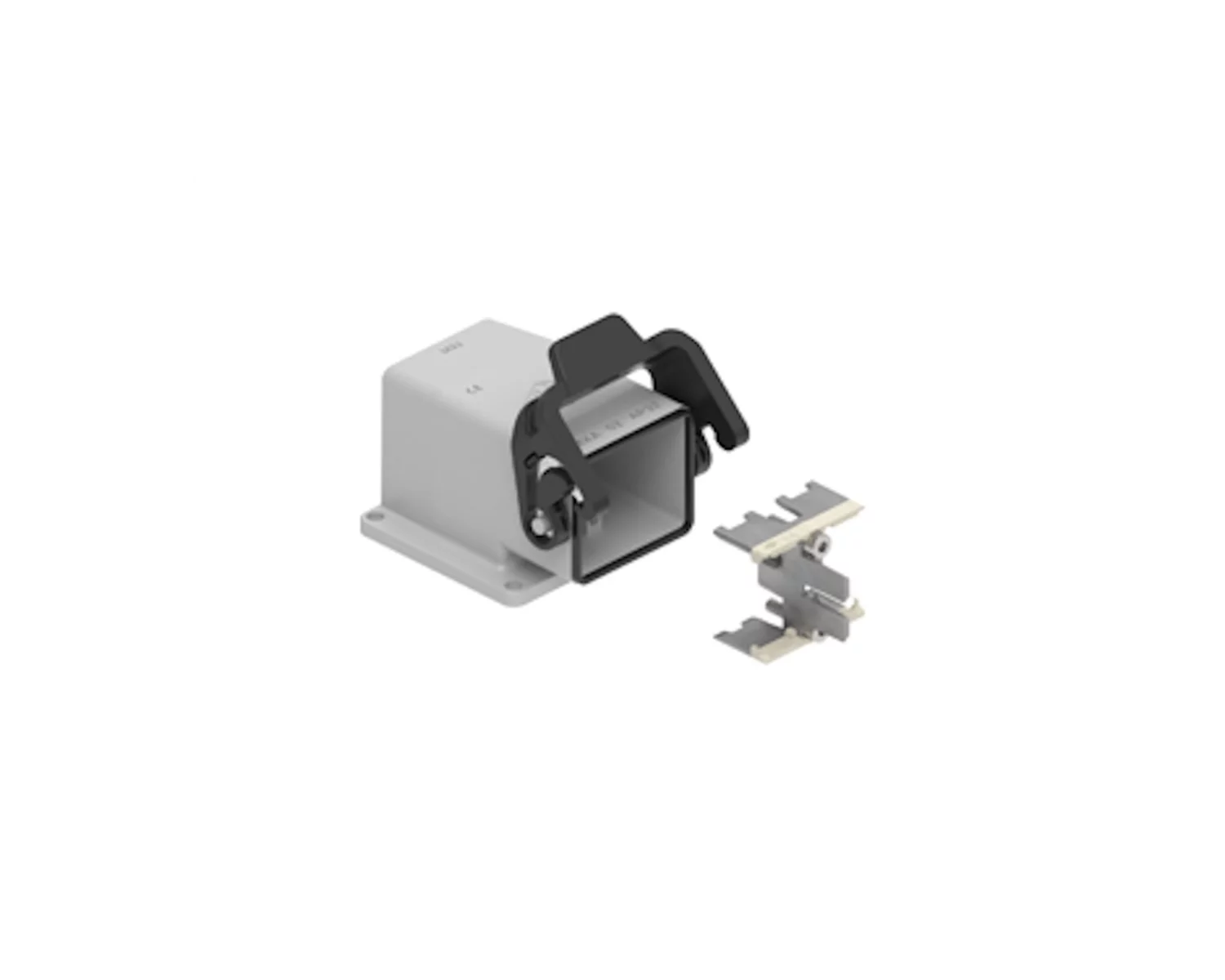

surface mounting housing, angled, 2 modules, MIXO TWO zinc, 1 lever, 1xM32 top
MIXO TWO
MXA 02 AP32
Stel je connector verder samen
Voeg de gewenste accessories en mixo modular inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Number of slots | 2 |
|---|---|
| Frame type | Enclosure with build-in frame |
| Enclosure series | MIXO TWO |
| Enclosure type | Angled surface mounting housing |
| Closing type | With 1 lever |
| Cable entry type | top cable entry |
| Cable entry size | M32 |
| Protection degree | IP65 |
| Locking mechanism | Single locking lever |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Height | 75.3 mm |
| Length | 76 mm |
| Width | 60 mm |
| Position cable feed | Top entry |
Material
| Material housing | Zinc die-cast |
|---|
