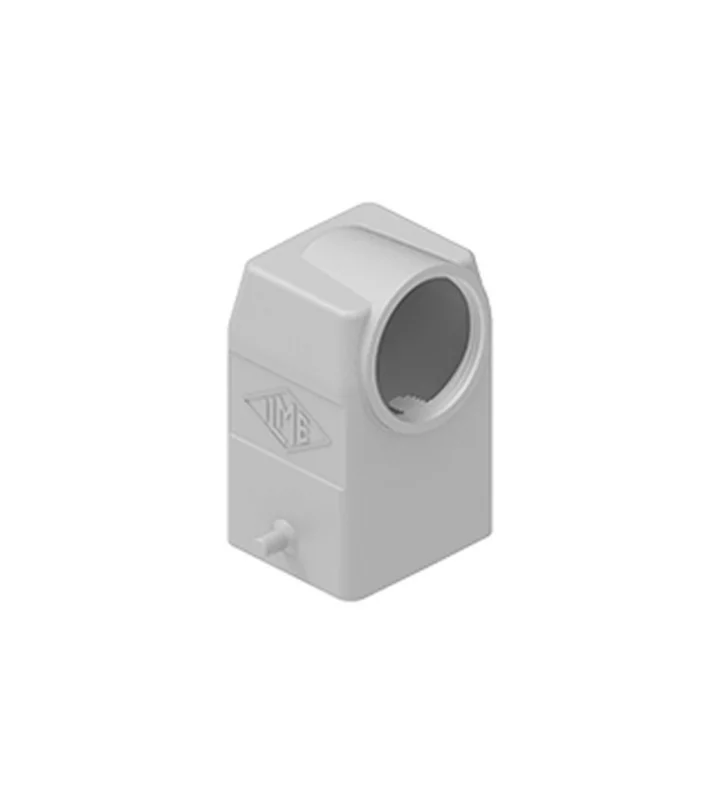

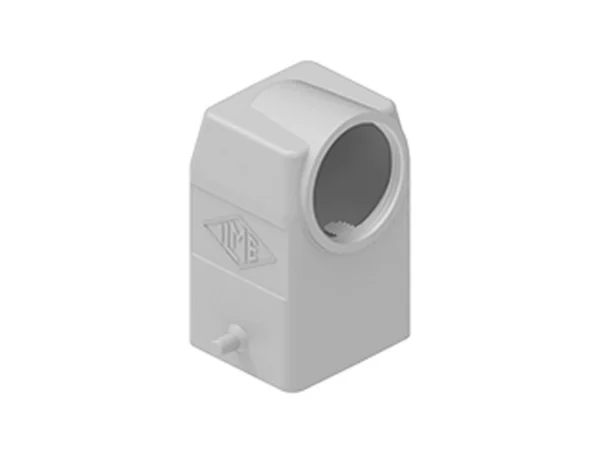

hood, 2 modules, MIXO TWO zinc, 2 pegs, 1xM32 side
MIXO TWO
MXA 02 O32
Stel je connector verder samen
Voeg de gewenste accessories en mixo modular inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Number of slots | 2 |
|---|---|
| Frame type | Enclosure with build-in frame |
| Enclosure series | MIXO TWO |
| Enclosure type | Hood |
| Closing type | With 2 pegs |
| Cable entry type | side cable entry |
| Cable entry size | M32 |
| Protection degree | IP65 |
| Locking mechanism | Single locking lever |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Height | 72 mm |
| Length | 59.5 mm |
| Width | 39 mm |
| Position cable feed | Side entry |
Material
| Material housing | Zinc die-cast |
|---|
