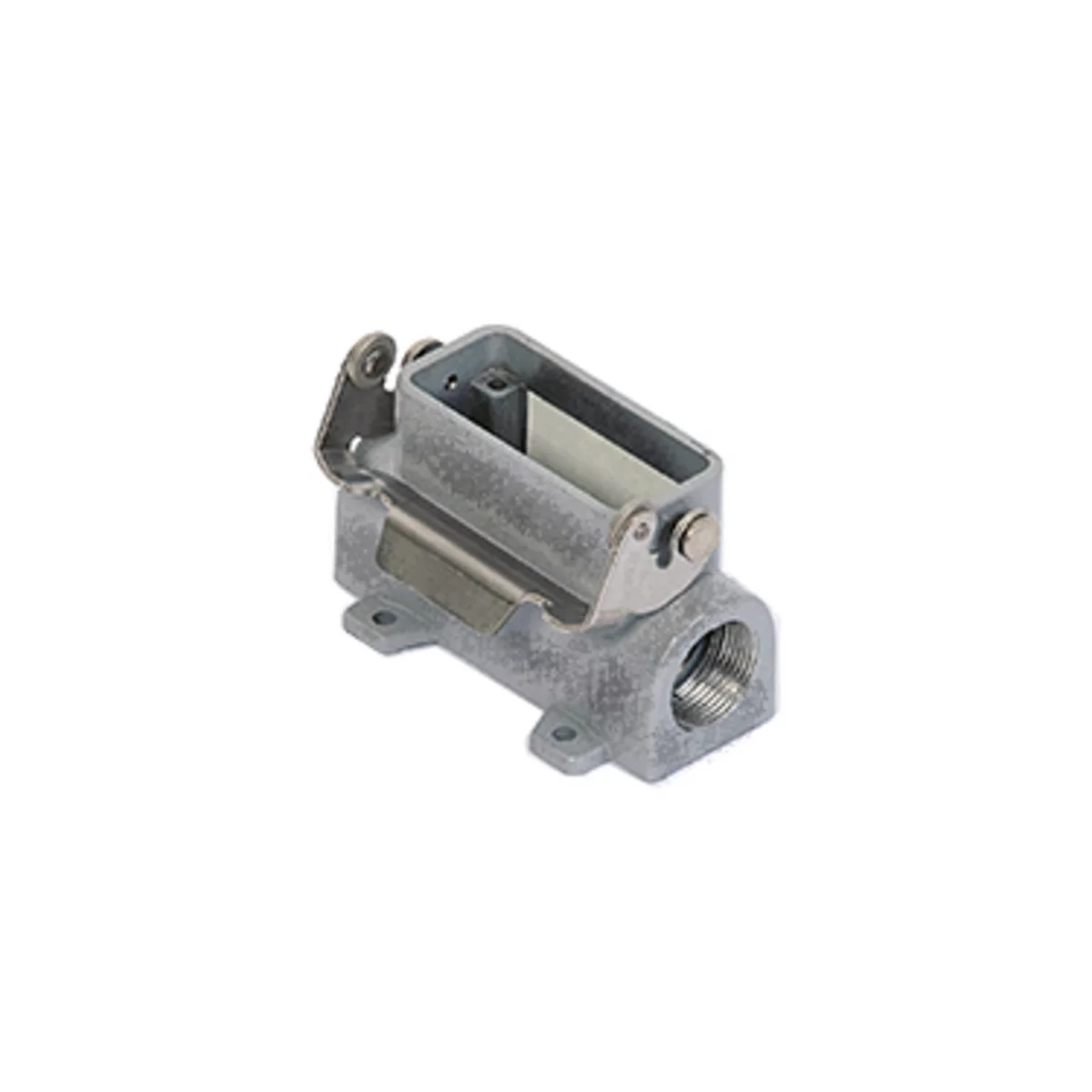

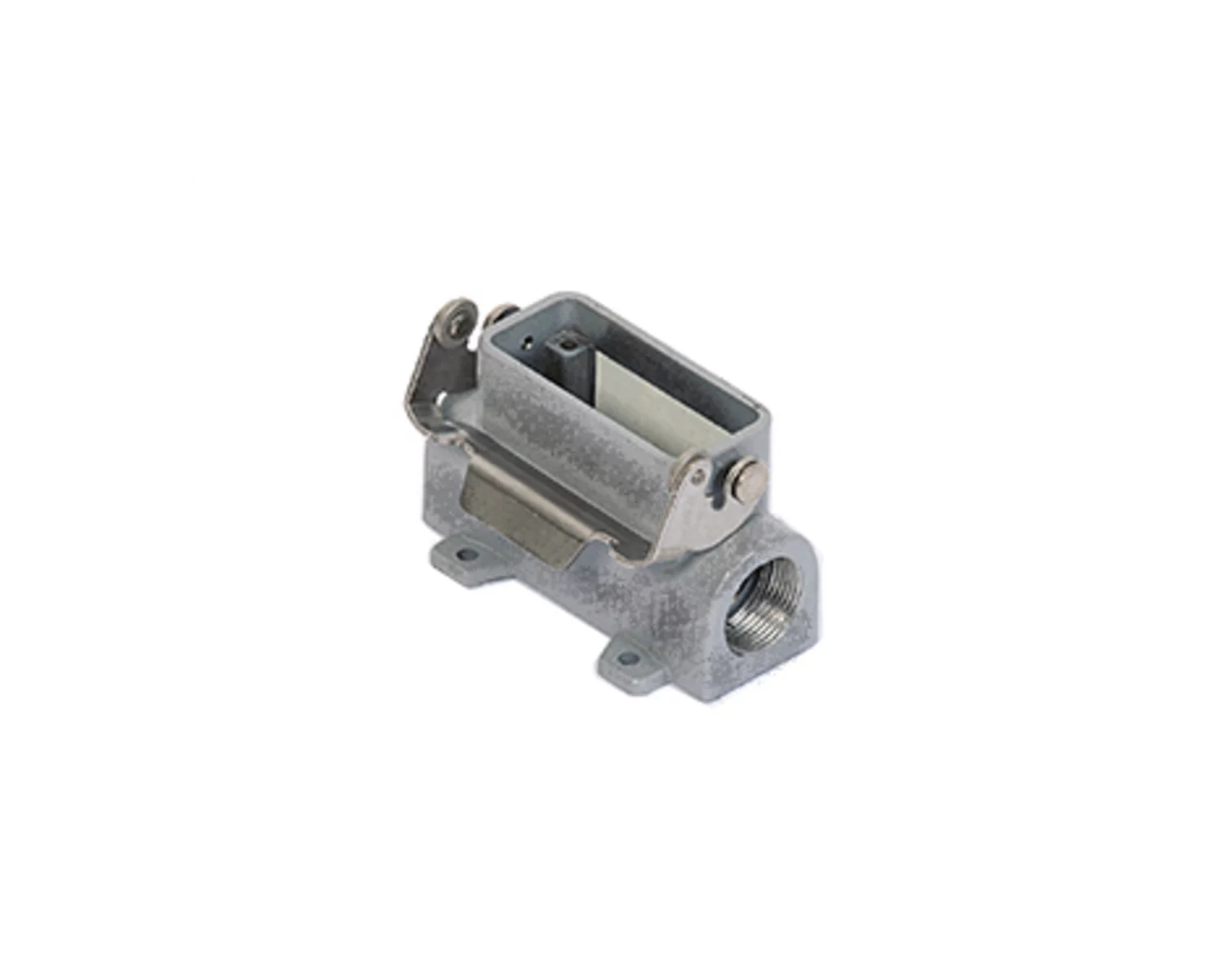

surface mounting housing, size 49.16, EMC alu, 1 rigid lever, 2xM25 side
MZ7PS 15L225
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 49.16 |
| Enclosure series | EMC |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP66 / IP67 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M25 x 2 |
| Position cable feed | Side entry |
| Height | 52 mm |
| Width | 40 mm |
| Length | 48 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | Chromate conversion coating |
