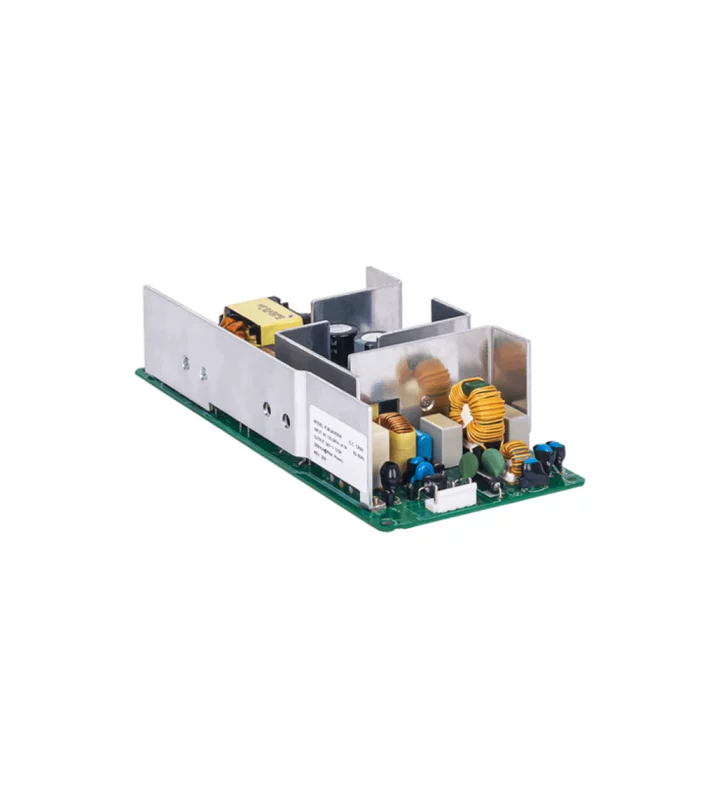

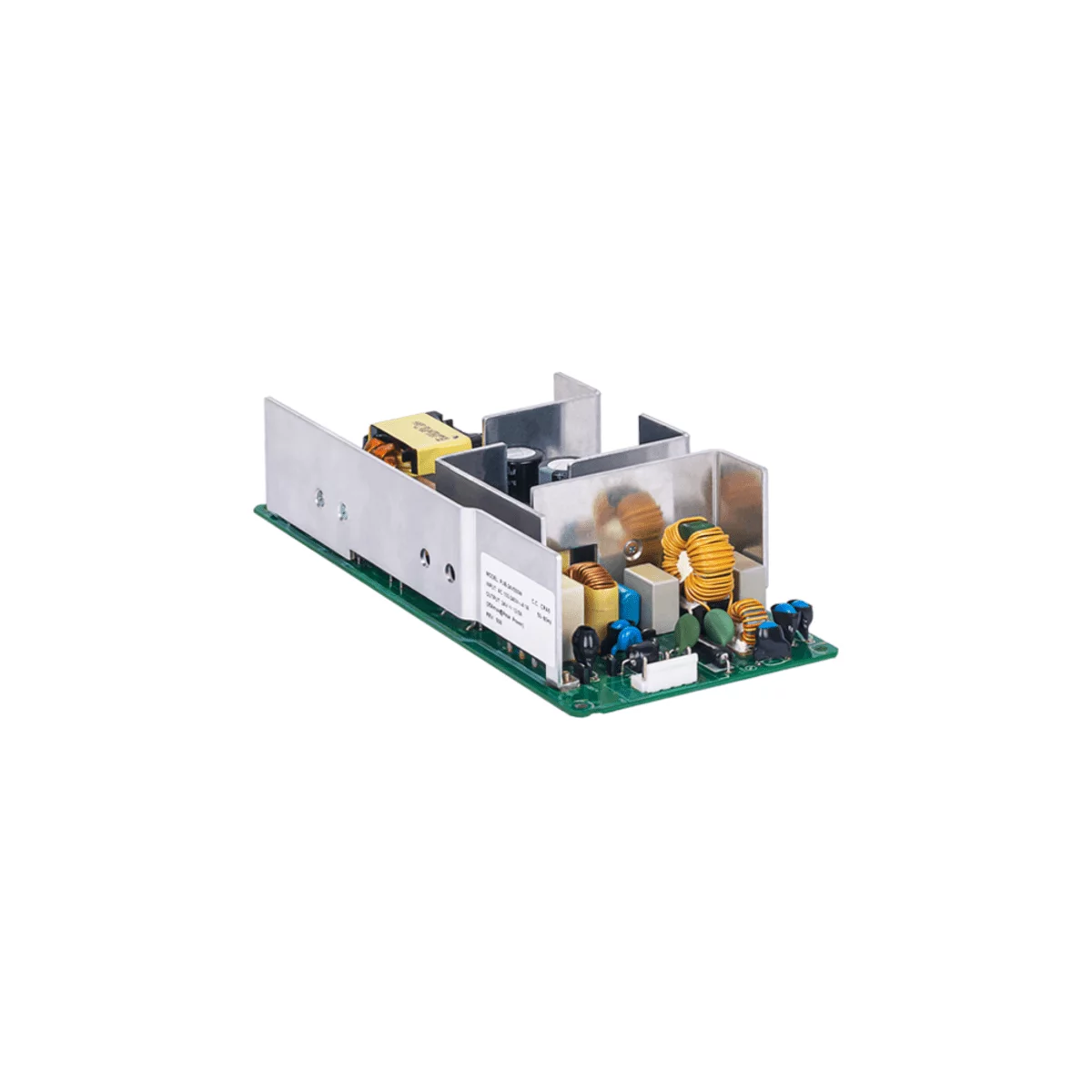

Power Supply, 1Ph, 300W, DIN Rail, Open Frame, AC/DC, 24 Vdc, 12,5 A
PJB-24V300WBNA
Specificaties
General Characteristics
| Power supply series | PJB |
|---|---|
| Type power supplies | AC/DC |
| Dimensions (WxHxD) | 95 x 222 x 53,6 |
| Special characteristics | Open frame package type, No remote ON/OFF, JST |
| Applications | Industrial |
Electrical Parameters
| Adjustable Output Voltage | 21,6…26,4 Vdc |
|---|---|
| Output Power | 300 W |
| Output Current | 12.5 A |
| Phases | 1 |
| Input Voltage | 85…264 Vac |
