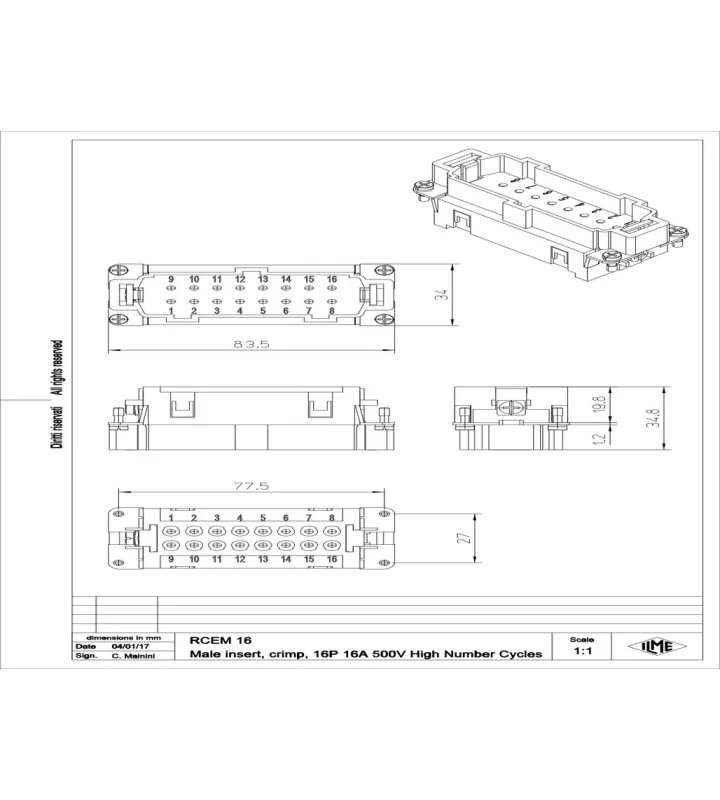

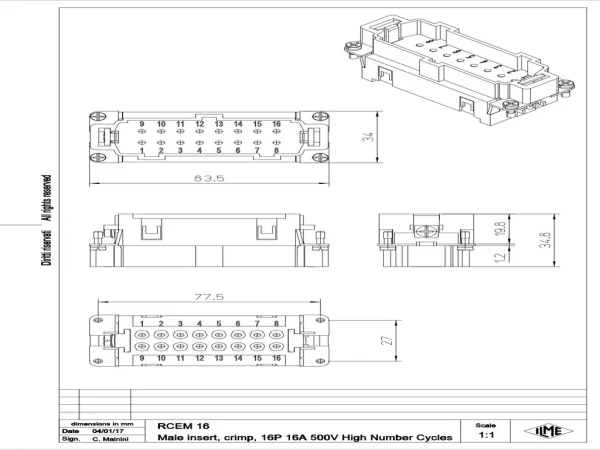

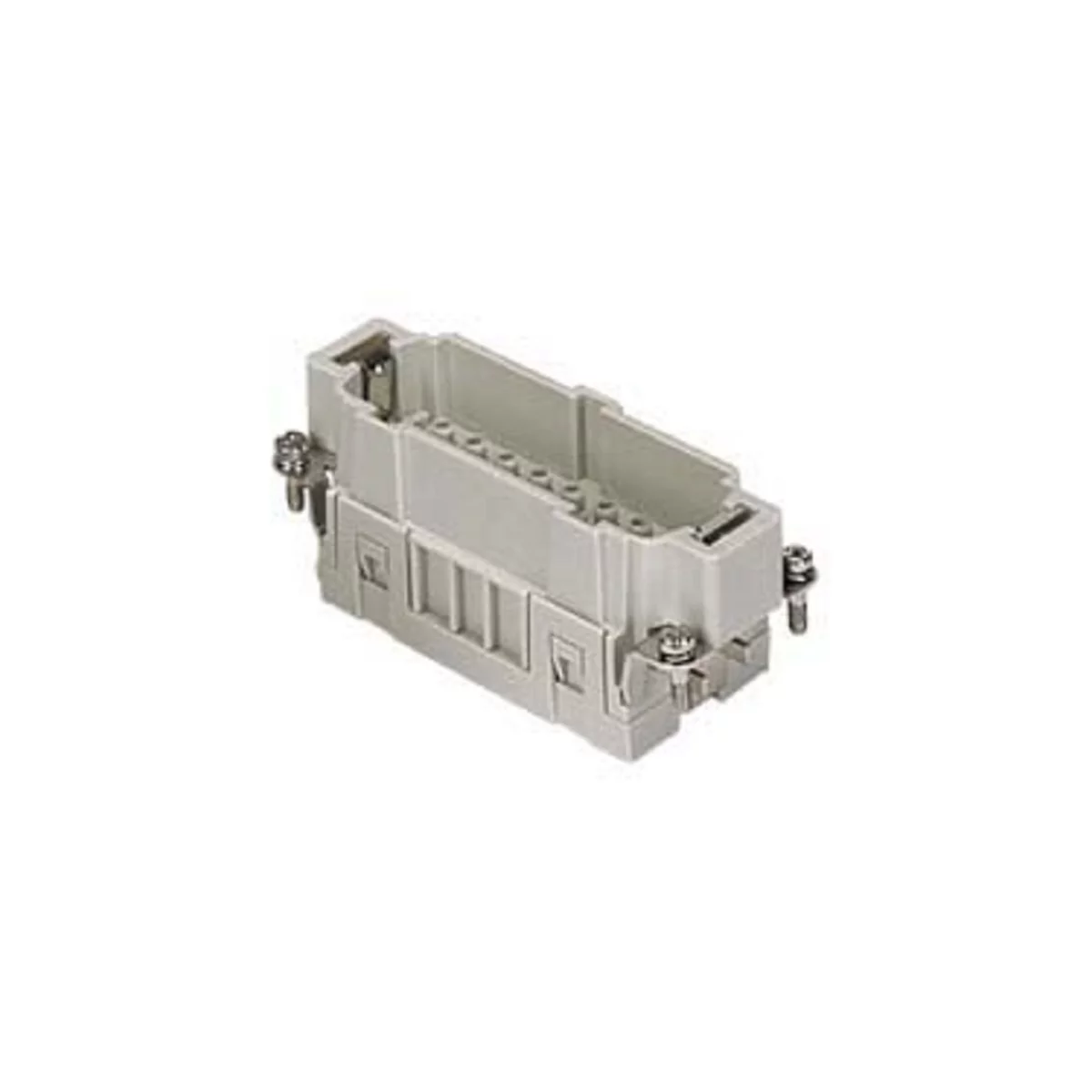

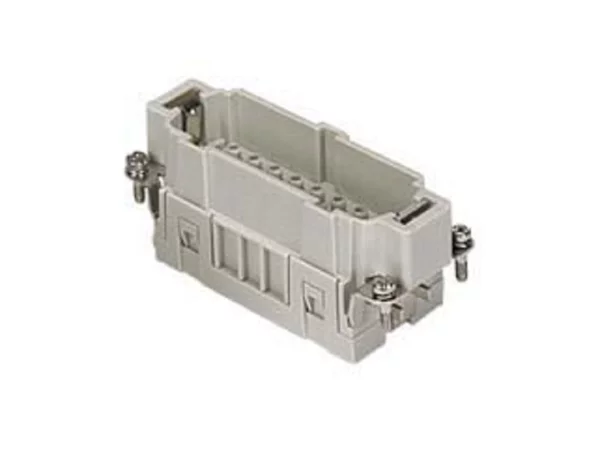

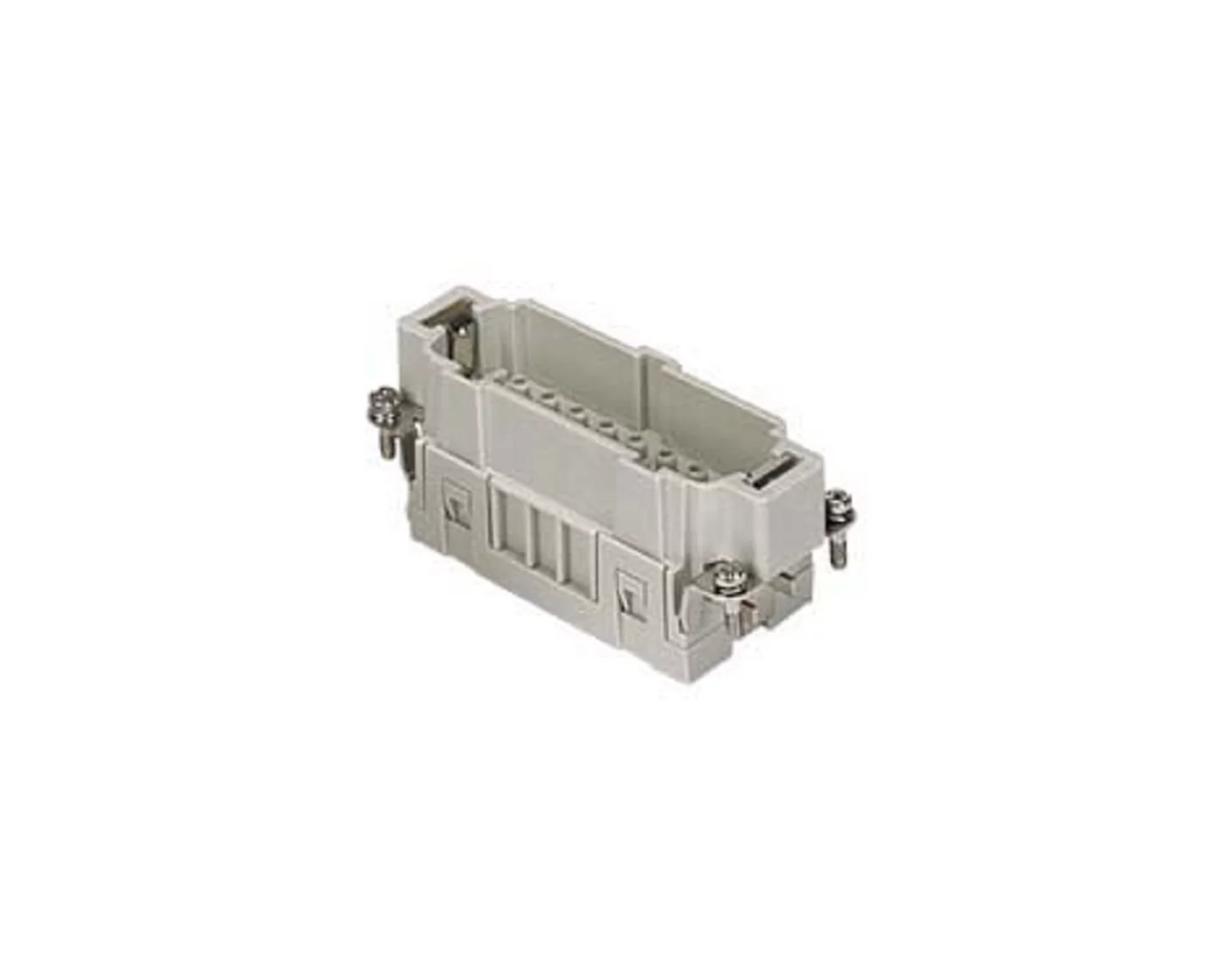

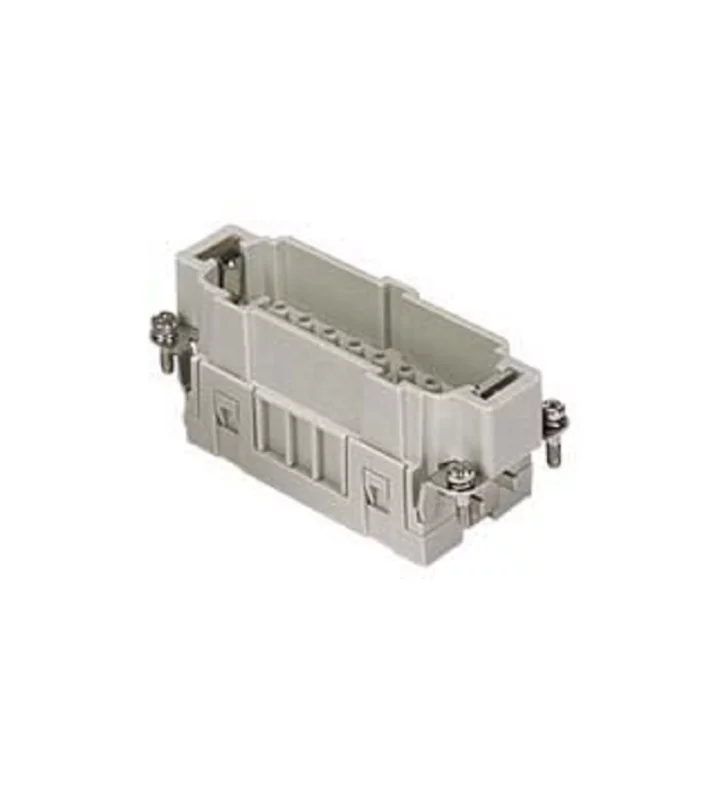

male insert, size 77.27, 16p+PE, crimp, 16A, 500V, HNM
RCEM 16
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | RCE |
| Number of contacts | 16 + PE |
| Number of poles | 16 |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 77.27 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 12 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 4 mm² |
| Diameter male contact | 2.5 mm |
| Colour | Grey |
| Extra information | Contact inserts without contacts |
| Remark | 10.000 matings with HNM enclosures / 5.000 matings with standard enclosures, single lever |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 500 V |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
