male contact, 0,08-0,21mm², stampt, crimp, 5A, for 50 cycle of connector, on reel

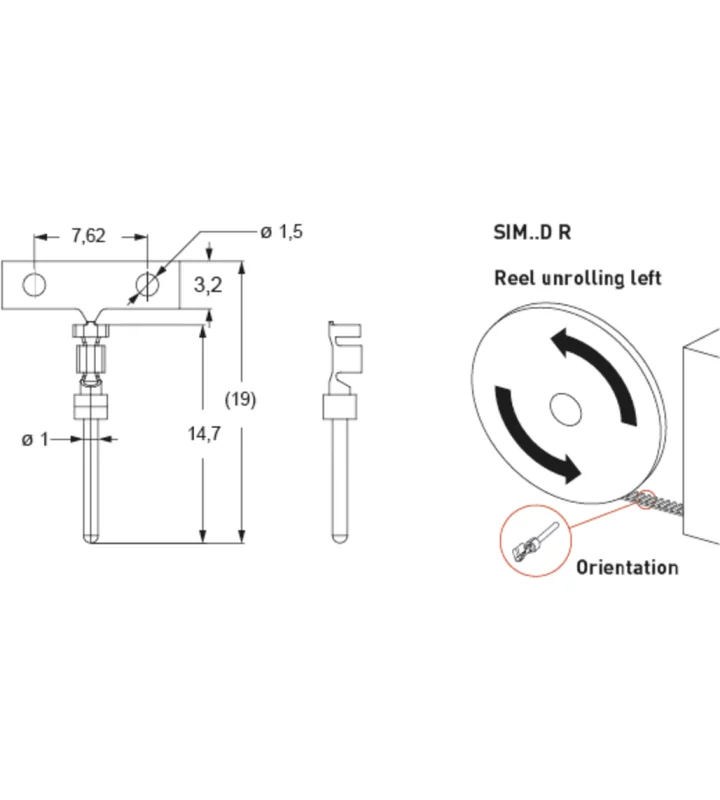

SIM3D 0.2R
Specificaties
General characteristics
| Connection type | Stamped crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 0.08 mm² |
| Max. Cross section | 0.21 mm² |
| AWG size | 28 - 24 |
| Diameter male contact | 1 mm |
Electrical parameters
| Max. rated current | 5 A |
|---|
Material
| Material contact | Brass (leadfree) |
|---|---|
| Plating of contact | Partial gold |
