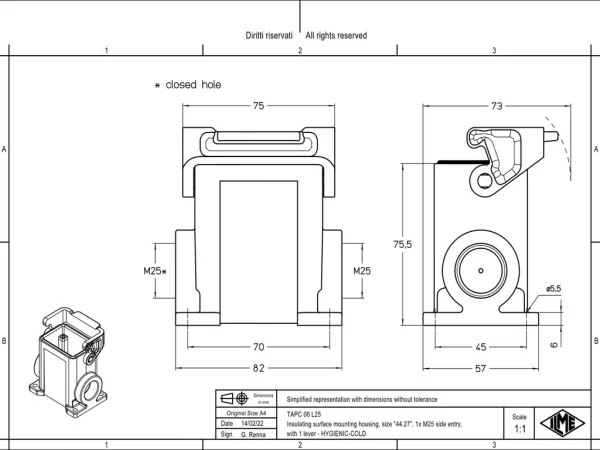

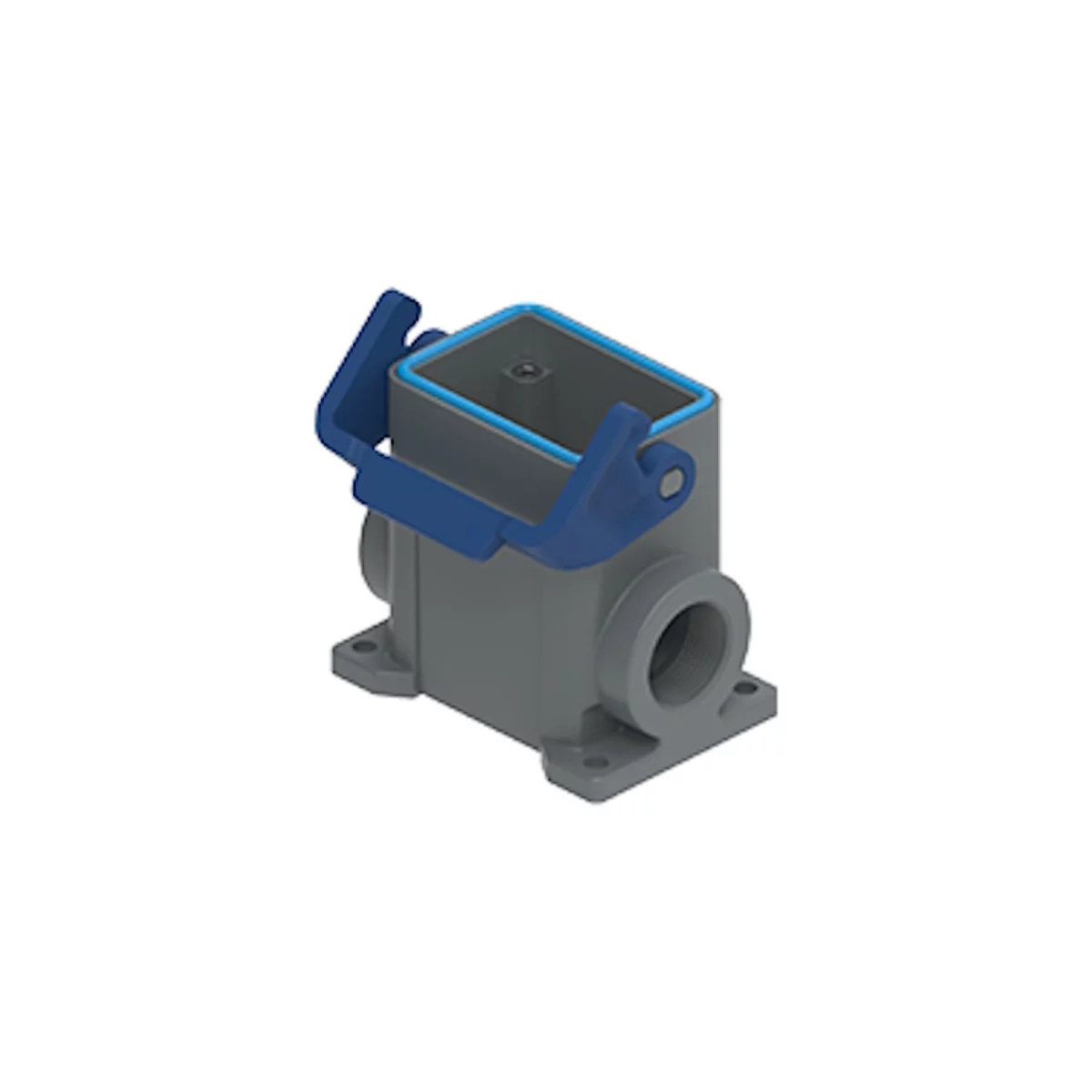

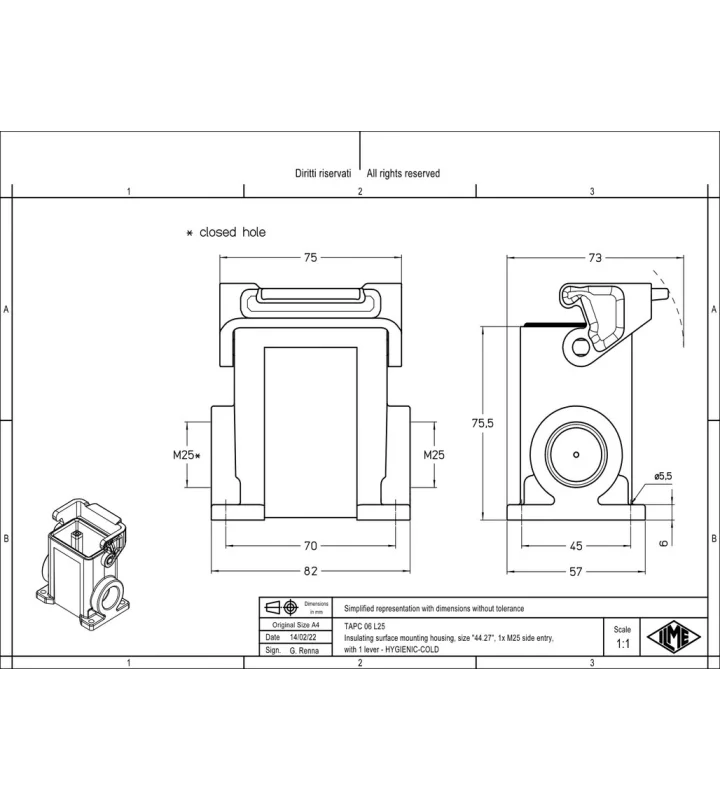

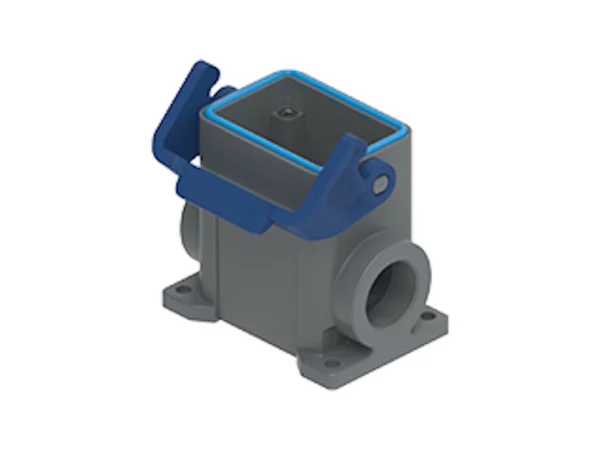

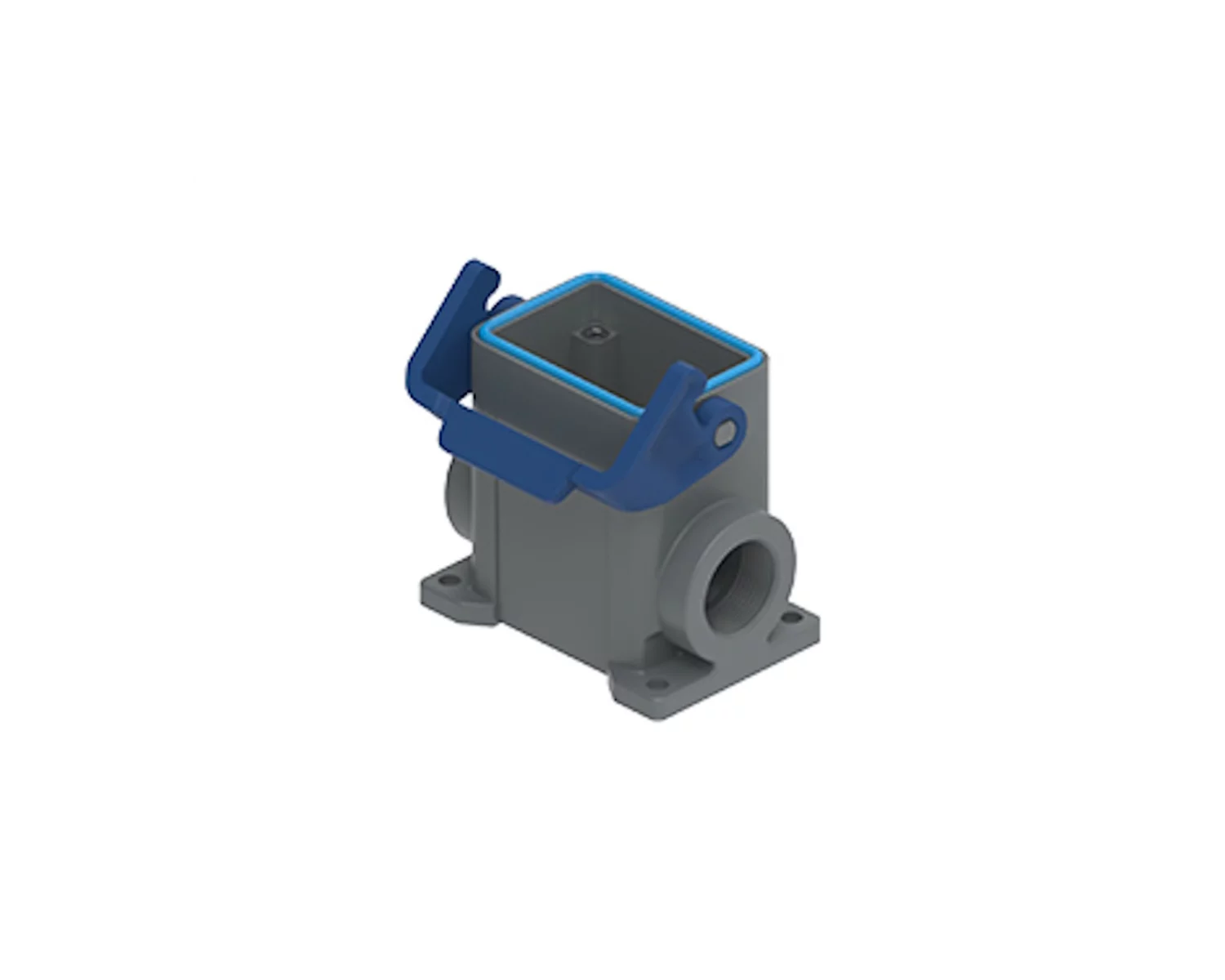

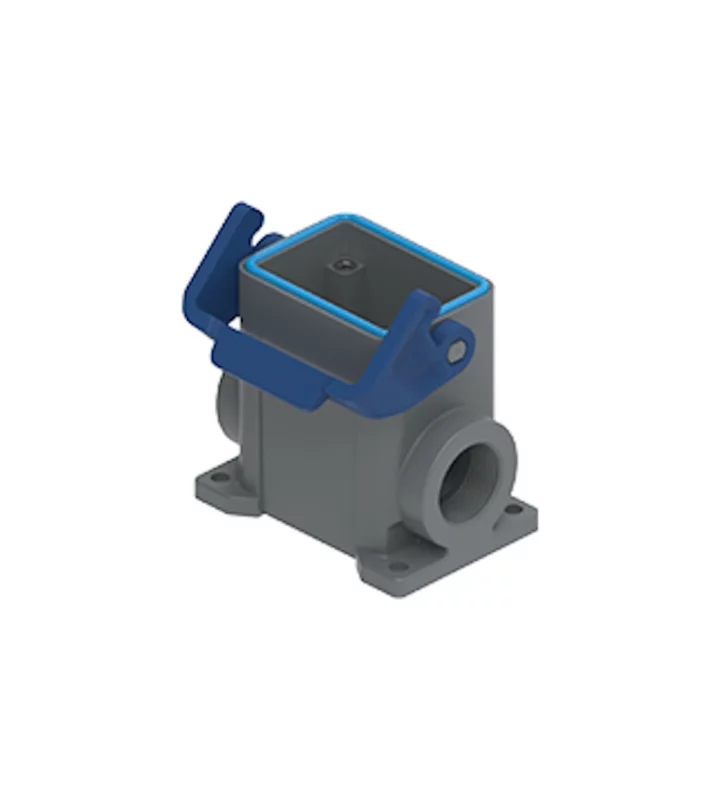

surface mounting housing, high, size 44.27, T-TYPE C plastic, 1 lever, 1xM25 side
TAPC 06 L25
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 44.27 |
| Enclosure series | T-TYPE /C |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP66 / IP69 |
| Ambient lower temperature | -50 °C |
| Ambient upper temperature | 70 °C |
| Operation lower temperature | -50 °C |
| Operation upper temperature | 70 °C |
| Cable entry type | side cable entry |
| Cable entry size | M25 |
| Position cable feed | Side entry |
| Height | 73 mm |
| Width | 57 mm |
| Length | 82 mm |
Material
| Material housing | Thermoplastic |
|---|---|
| Coating housing | Uncoated |
| Inflammability class of insulation material acc. with UL94 | V0 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
