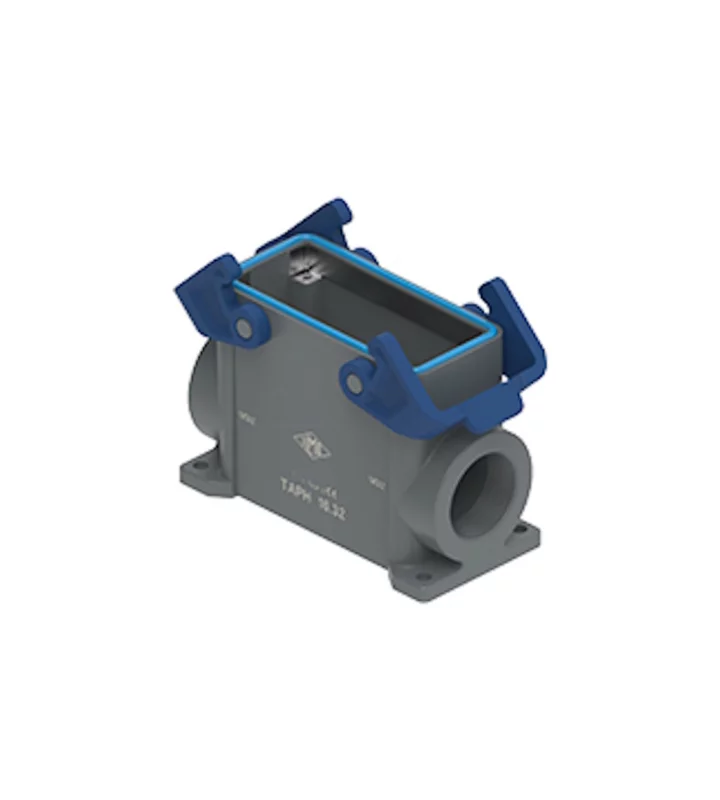

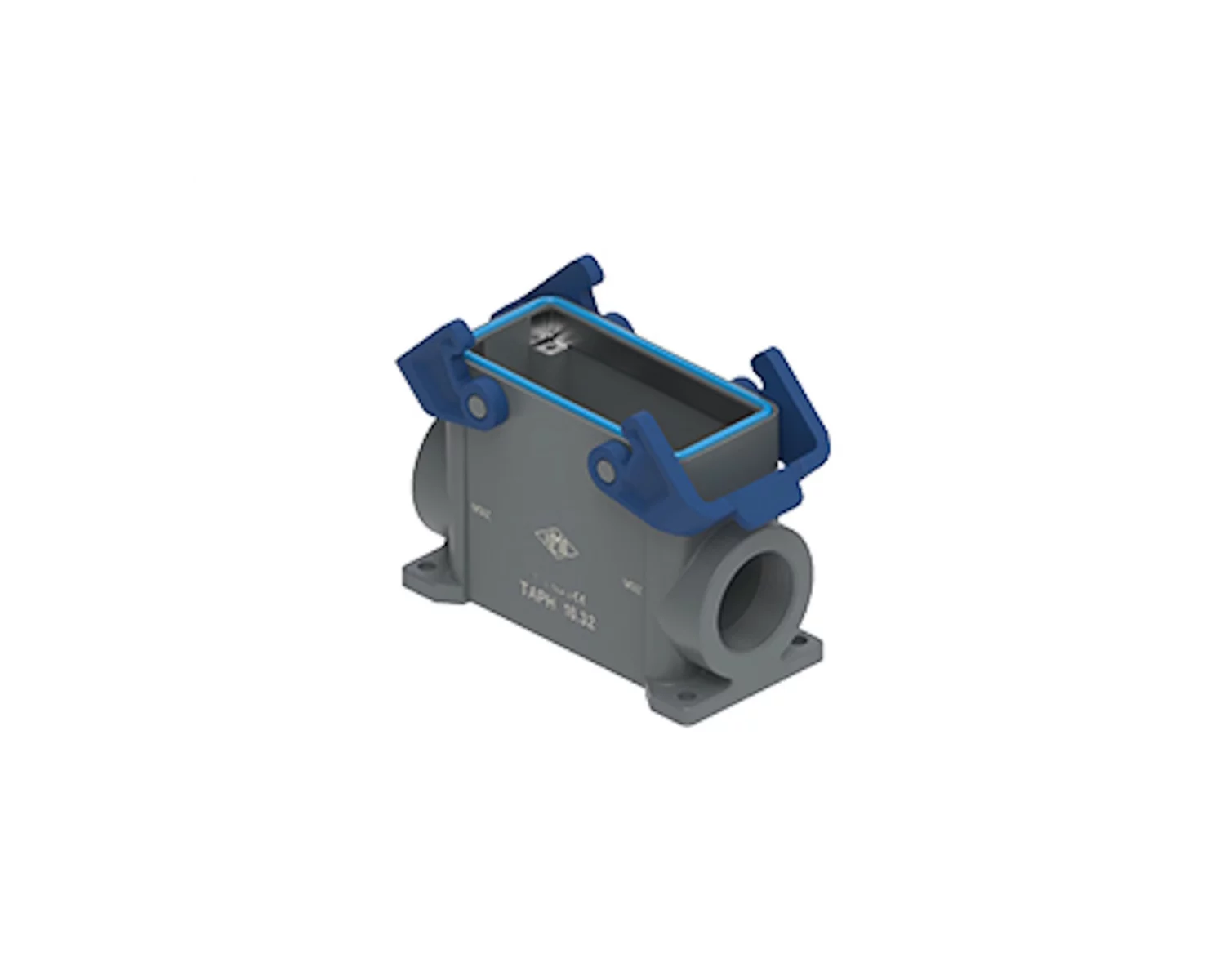

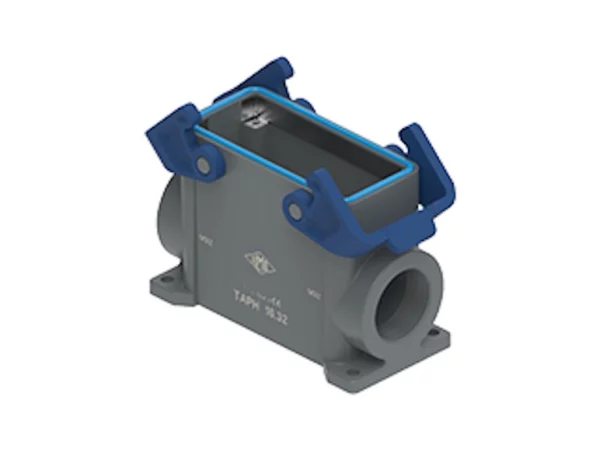

surface mounting housing, high, size 77.27, T-TYPE H plastic, 2 levers, 1xM40 side, PE-jumper
TAPH 16.40B
Stel je connector verder samen
Voeg de gewenste standard inserts toe om je connector volledig samen te stellen.
Specificaties
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 77.27 |
| Enclosure series | T-TYPE /H |
| Closing type | With 2 levers |
| Locking mechanism | Double locking levers |
| Protection degree | IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 70 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| Cable entry type | side cable entry |
| Cable entry size | M40 |
| Position cable feed | Side entry |

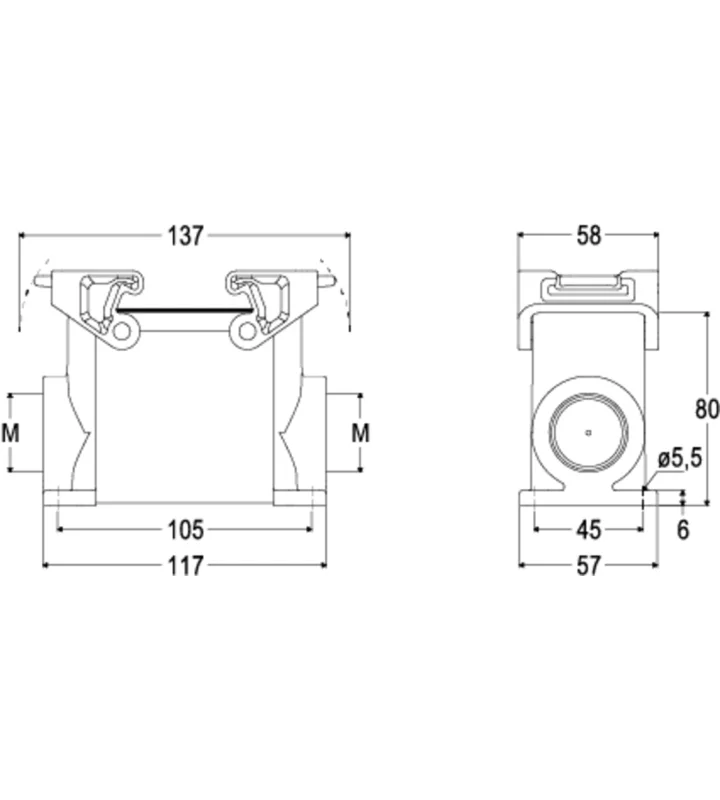

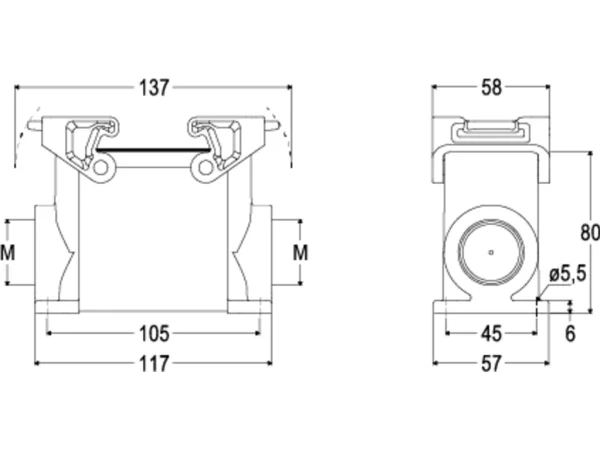

| Height | 80 mm |
| Width | 45 mm |
| Length | 105 mm |
Material
| Material housing | Thermoplastic |
|---|---|
| Coating housing | Uncoated |
| Inflammability class of insulation material acc. with UL94 | V0 |
