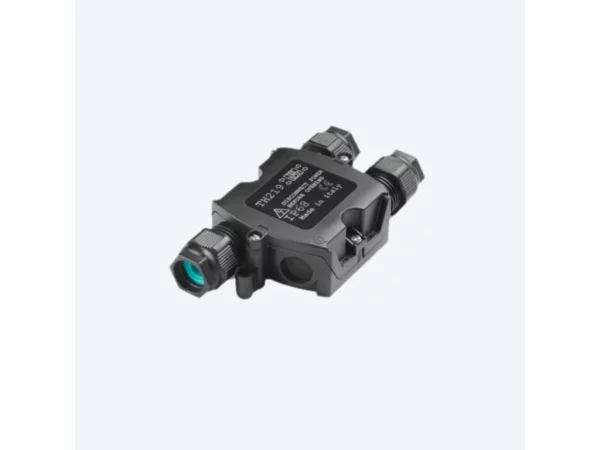

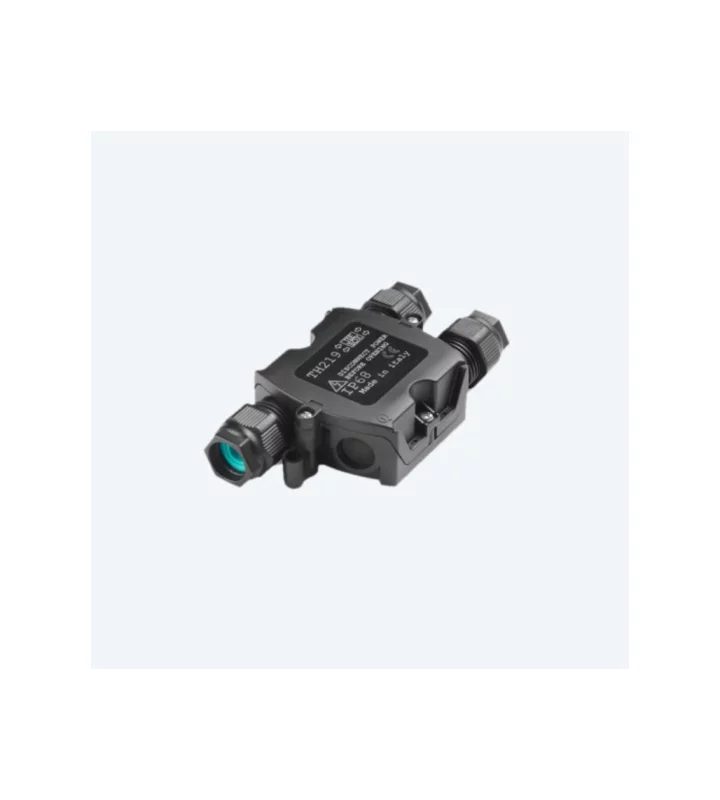

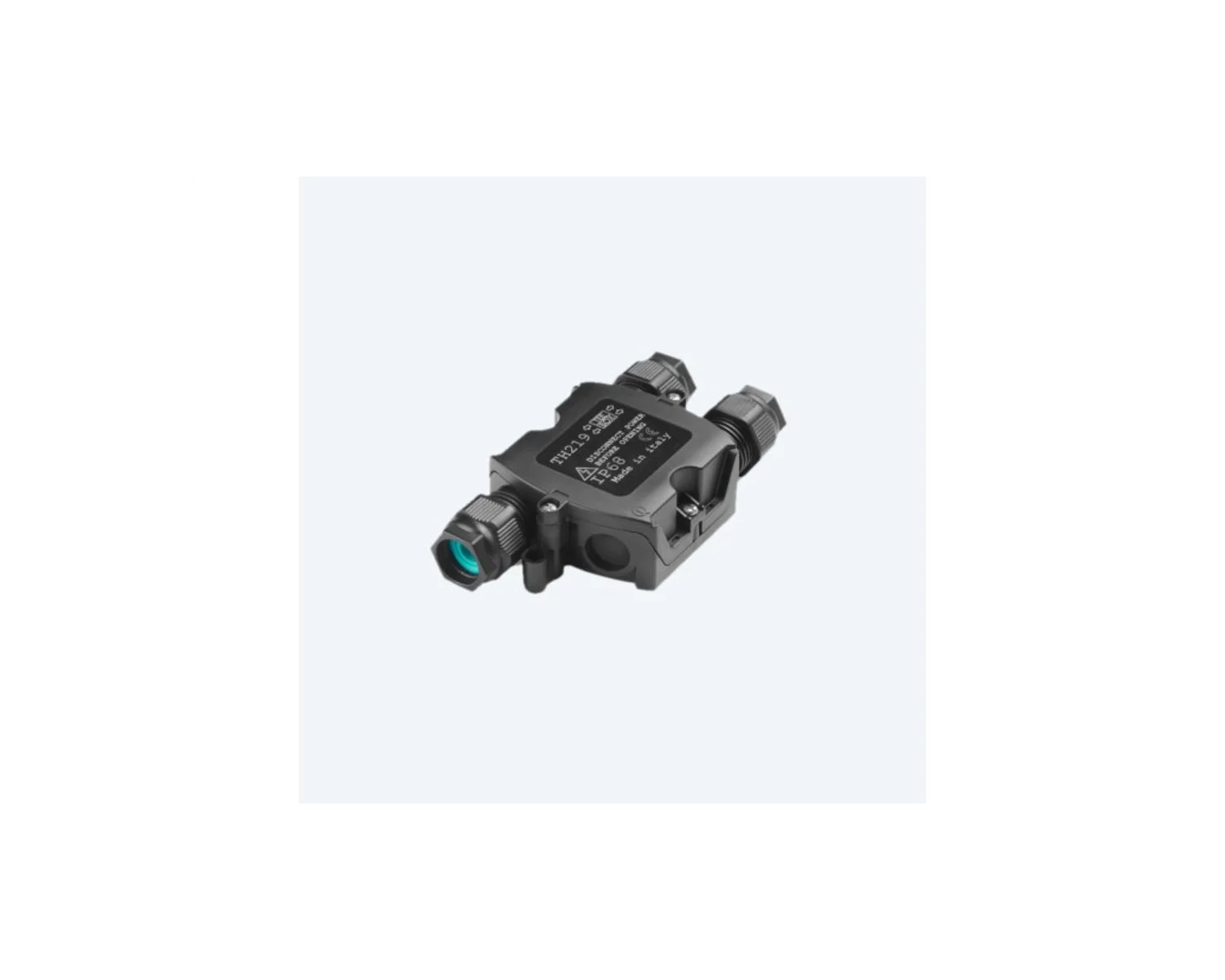

Junction box for resin filling 3 ways D7-13,5
IP66/IP68
THA.219.D1A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEBOX |
|---|---|
| Subseries | TH219 |

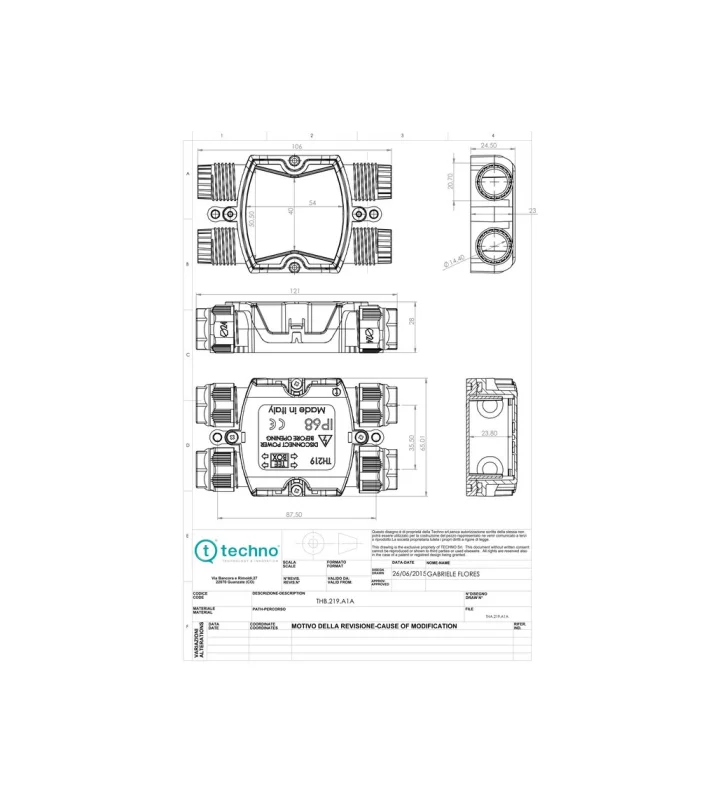

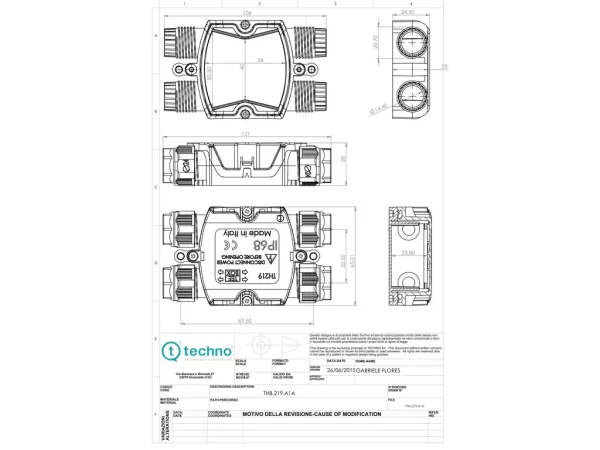

| Inner dimensions | 54 mm x 40 mm x 24 mm |
| Cable diameter min-max A | 7,0 -13,5 mm |
| Cable diameter min-max B | 7,0 -13,5 mm |
| Cable entries/exits | 3 ways |
| Protection degree | IP66/IP68 |
| Protection degree details | 0,5 bar (5m/3h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Note | ∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 13,5 mm CH 24,0 mm |
| Standards | TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance |
Material
| Body | PA66 UL94 V2 GWT 850°C black - grey RAL 7035 |
|---|---|
| Lock nuts | PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE-V |
| Co-moulded seal of lid | SEBS |
| Fixing screws of lid | M3 x 12,0 mm inox stainless steel |
