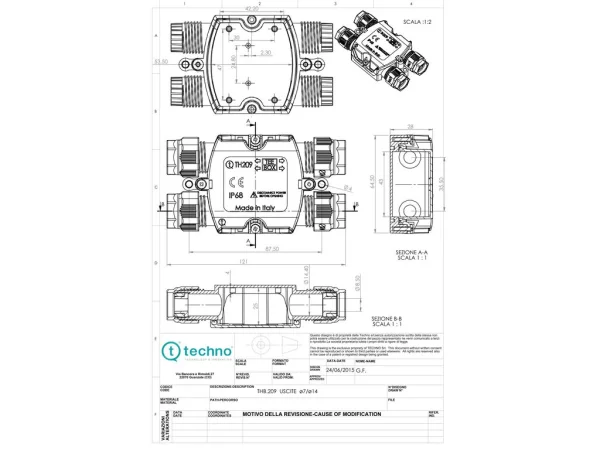

Junction box 4 ways
Screw IP66/IP68
4 connected cables
THB.209.A5A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEBOX |
|---|---|
| Subseries | TH209 |
| Number of contacts | 5 |
| Contact terminals | Screw |
| Cable section | 0,50 - 1,50 mm² |
| Min-max cable diameter | 7,0 - 13,50 mm |
| Cable entries/exits | 4ways |
| Protection degree | IP66/IP68 |
| Protection degree details | IP68 (5m/3h) |
| Max. temperature | T85 |
Electrical parameters
| Rated current | 16 A |
|---|---|
| Rated voltage | 450 V |
Material
| Body | PA66 GF UL94 V2 |
|---|---|
| Distributor and connector housing | PA66 GF UL94 V0 |
| Seals | TPE |
| Contact screw terminals | Brass |
| Screw | Steel |
| Fixing screws of lid | Steel |
Varianten
| Art. number | Rated current | Number of contacts | Nominal current (A) | Cable section |
|---|---|---|---|---|
| THB.209.A3A | 24 A | 3 | >30 - ≤40 A | 0,50 - 4,0 mm² |
| THB.209.A4A | 24 A | 4 | >30 - ≤40 A | 0,50 - 4,0 mm² |
