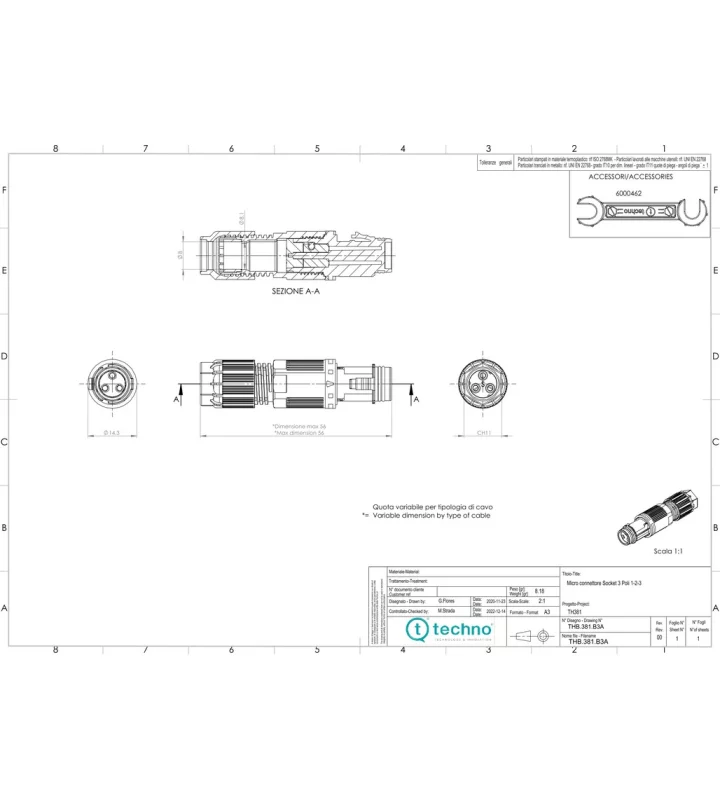

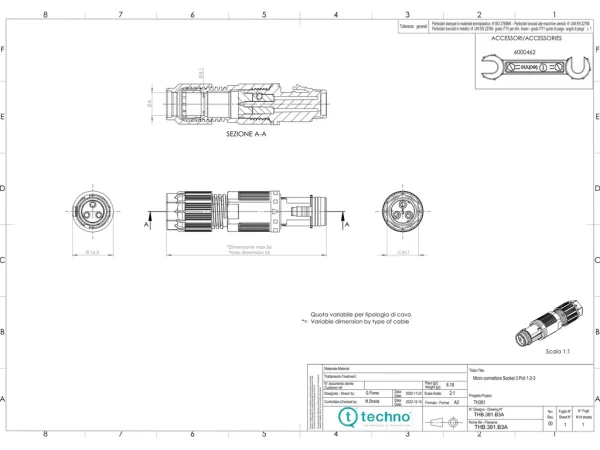

Micro socket connector screw
IP66/ IP68/IP69
THB.381.B3A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH381 |
| Number of contacts | 3 |
| Gender | Female |
| Contact terminals | Contact screw terminals for cable section < 1,0 mm² |
| Cable section | 0,25 - 1,0 mm² |
| Min-max cable diameter | 5,4 - 7,9 mm |
| Protection degree | IP66/IP68/IP69 |
| Protection degree details | IP68 30m/1h |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Distributor and connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 GF UL94 V2 |
| Co-moulded seals | TPE-S |
| Contact screw terminals | Silver plated brass |
| Screw | Steel |
Varianten
| Art. number | Rated voltage | Number of contacts | Distributor and connector housing | Cable glands | Nominal voltage (V) | Min-max cable diameter | Screw |
|---|---|---|---|---|---|---|---|
| THB.381.B2A | 400 V | 2 | PA66 GF UL94 V2 - GWT 850°C | >200 - ≤400 V | 4,5 - 5,5 mm | zinc-plated | |
| THB.381.B2A.L | 400 V | 2 | PA66 GF UL94 V2 - GWT 850°C | >200 - ≤400 V | 5,4 - 7,9 mm | zinc-plated |
