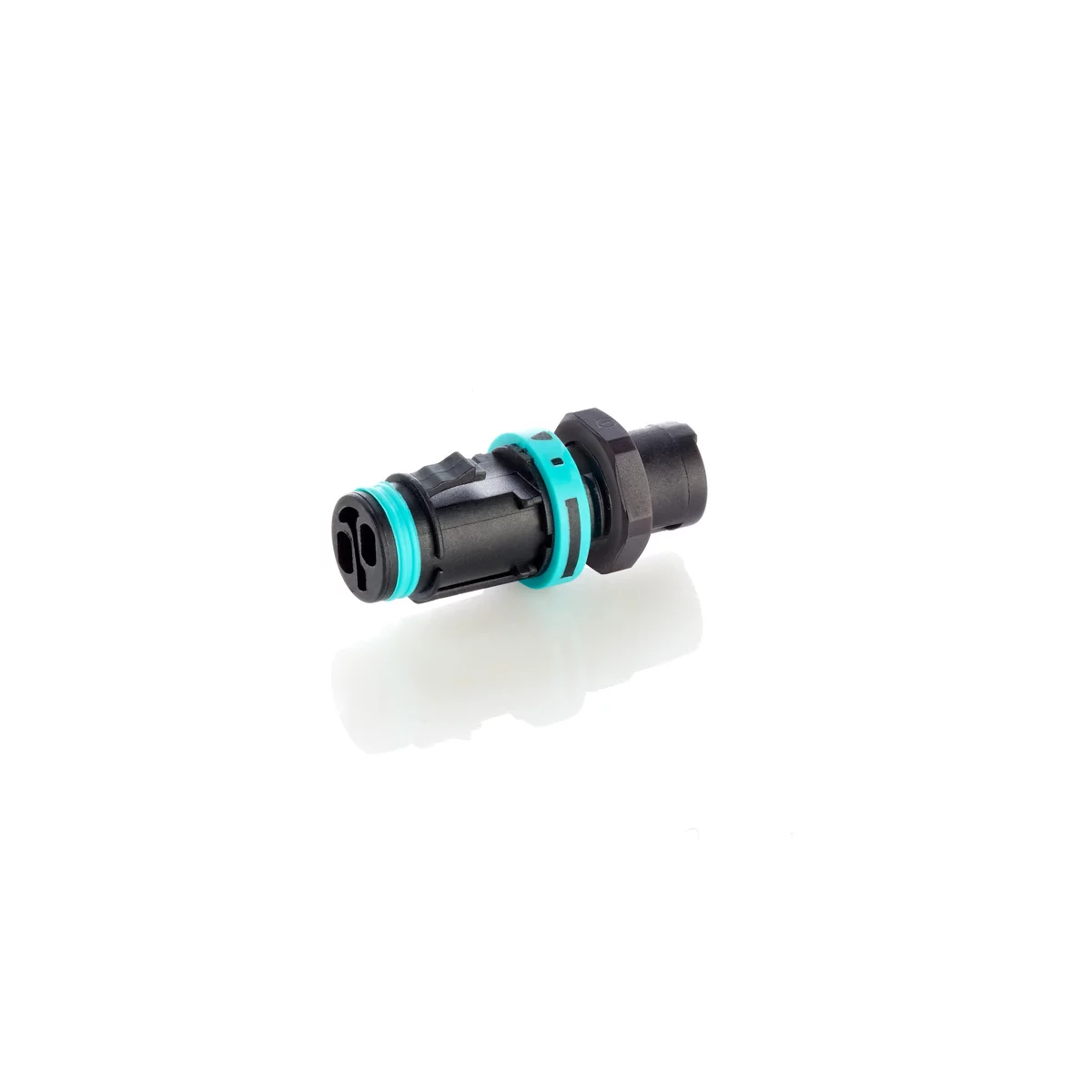

Micro socket connector panel-mounted screw M11
IP66/ IP68/IP69
THB.381.M2A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH381 |
| Number of contacts | 2 |
| Gender | Female |
| Contact terminals | Contact screw terminals for cable section < 1,0 mm² |
| Cable section | 0,25 - 1,0 mm² |
| Protection degree | IP66/IP68/IP69 |
| Protection degree details | IP68 30m/1h |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Cable glands | PA66 GF UL94 V2 - GWT 850°C |
| Co-moulded seals | TPE-S |
| Contact screw terminals | Silver plated brass |
| Screw | zinc-plated |
Varianten
| Art. number | Rated voltage | Number of contacts | Cable glands | Nominal voltage (V) | Screw | Distributor and connector housing |
|---|---|---|---|---|---|---|
| THB.381.M3A | 500 V | 3 | PA66 GF UL94 V2 | >400 - ≤600 V | Steel | PA66 GF UL94 V0 |
