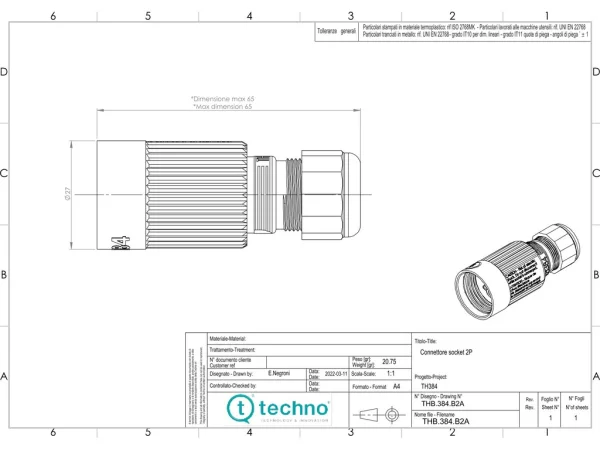

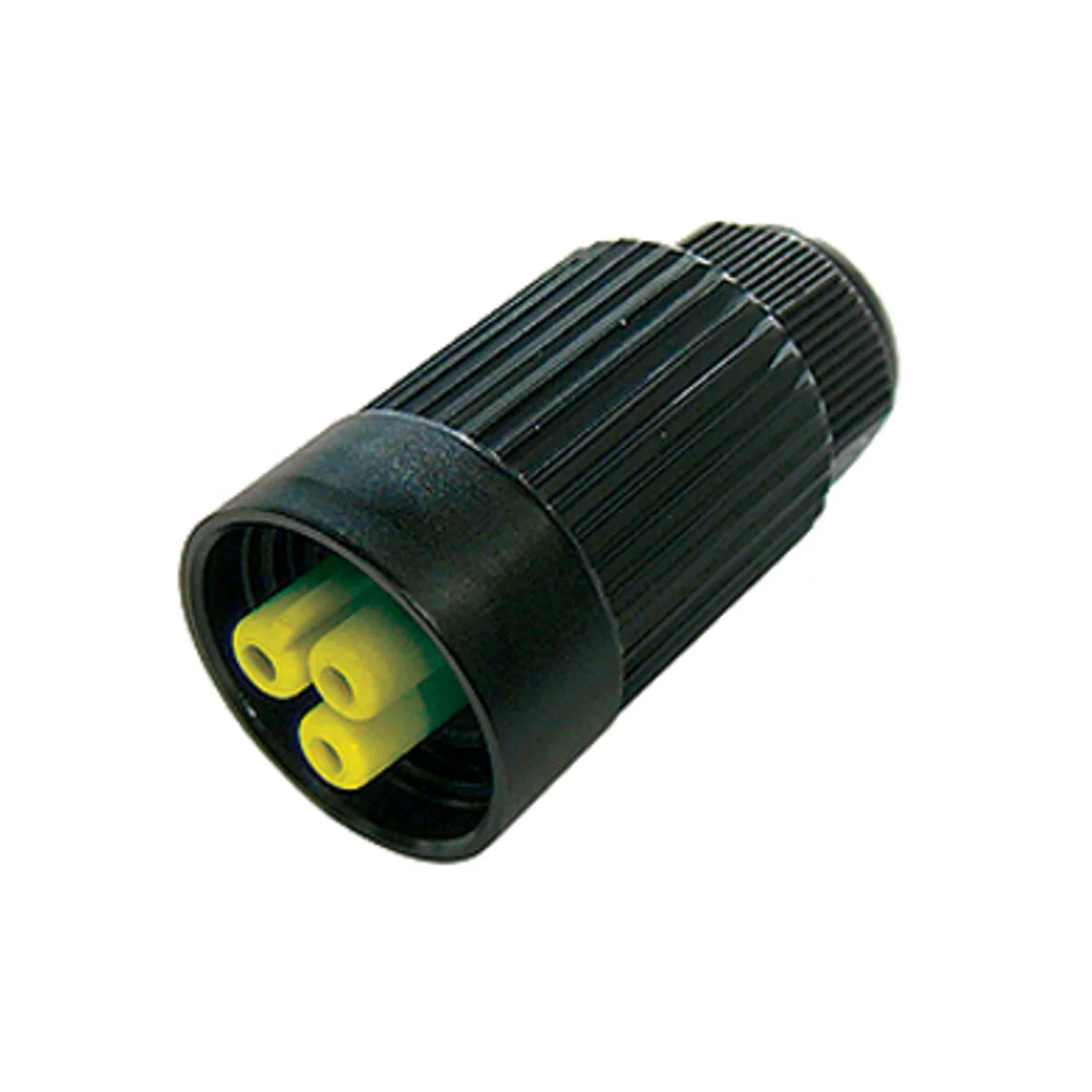

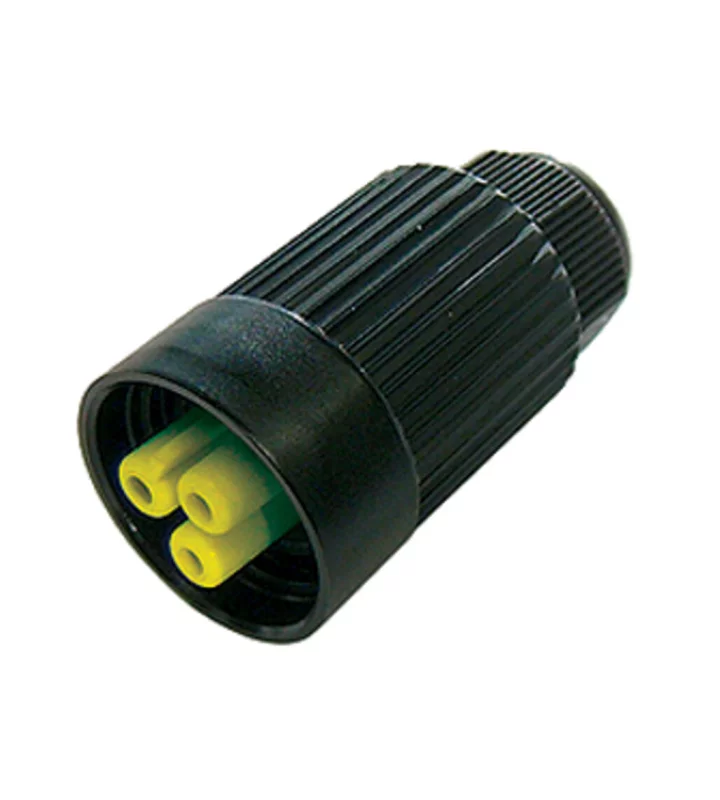

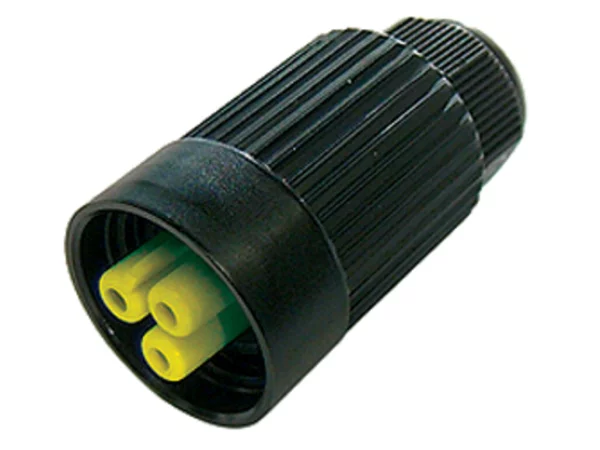

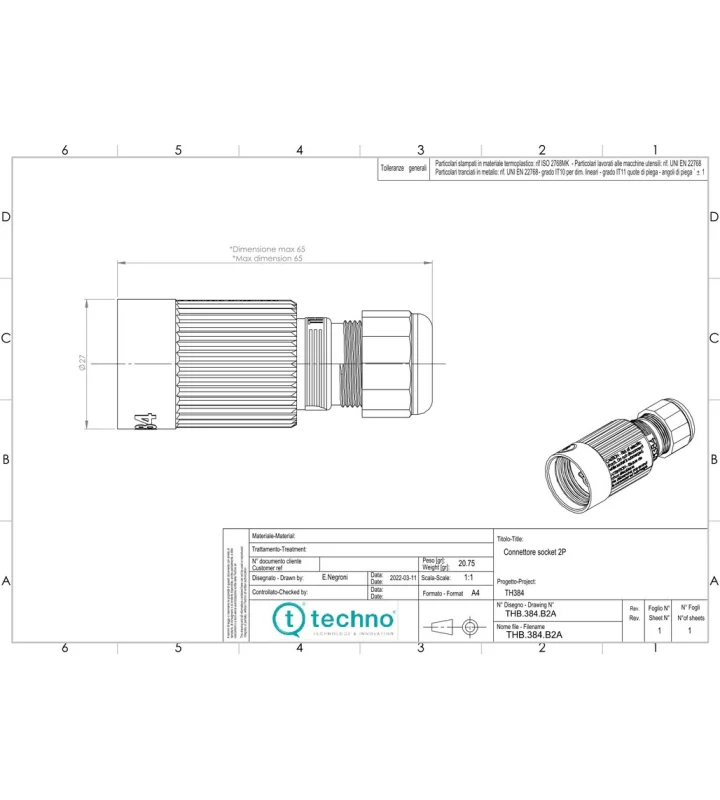

mini socket connector
IP66/IP68
THB.384.B2A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH384 |
| Number of contacts | 2 |
| Gender | Female |
| Contact terminals | For universal cylindric pin ∅ 2 mm (not supplied). |
| Cable section | max 4,0 |
| Min-max cable diameter | 7,0 - 12,0 mm |
| Protection degree | IP66/IP68 |
| Protection degree details | 5 bar (50 m / 24 h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Note | Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector. |
| Max. temperature | T85 |
| Standards | EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h) |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Lock nuts | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Connector housing | PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035 |
| Terminal block housing | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE |
| Seals | SEBS |
| Contact screw terminals | Brass nickel plated OR Brass silver plated (THX.384.XXX.AG) |
| Standard/Piercing screws | M3 steel zinc plated |
Varianten
| Art. number | Rated current | Number of contacts | Contact terminals |
|---|---|---|---|
| THB.384.B1A | 16 A | 3 | Contact screw terminals. For cable section < 1.0 mm² |
