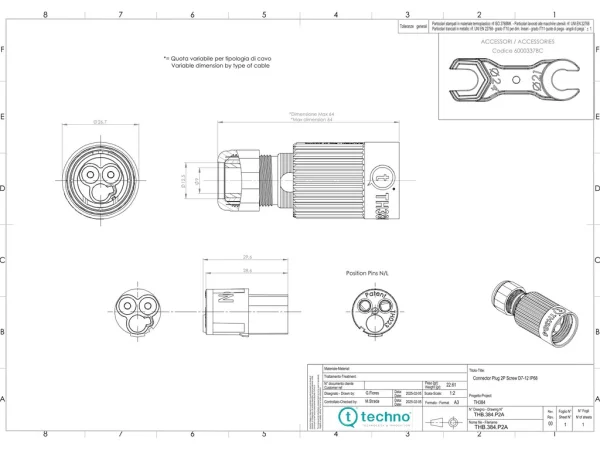

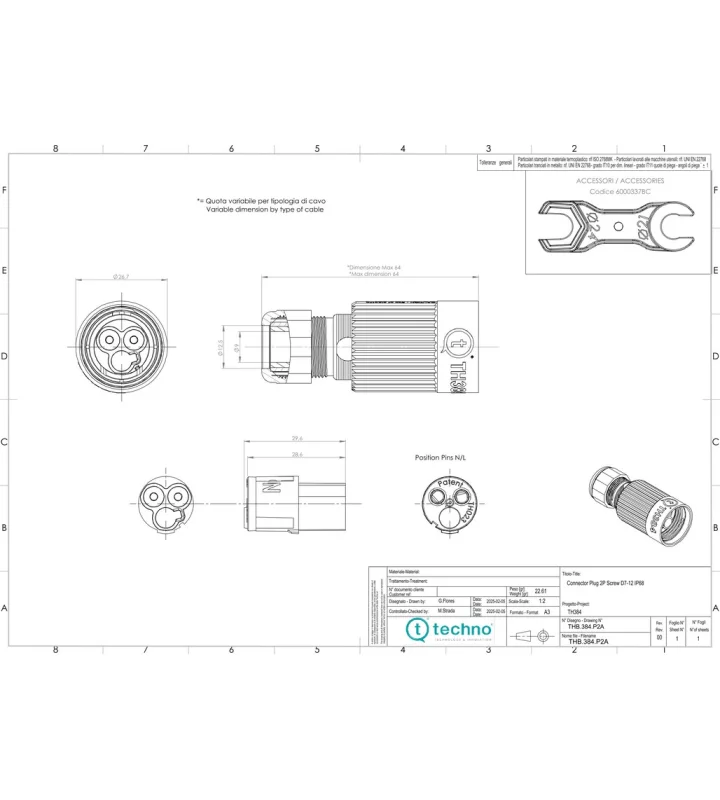

Mini plug connector
IP66/IP68
THB.384.P2A
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH384 |
| Number of contacts | 2 |
| Gender | Male |
| Contact terminals | Contact screw terminals. For cable section < 1.0 mm² |
| Cable section | 0,5 - 2,5 mm² |
| Min-max cable diameter | 7,0 - 12,0 mm |
| Protection degree | IP66/IP68 |
| Protection degree details | IP68 (5m/3h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Max. temperature | T85 |
| Standards | EN60998-1:2004 EN61984:2001 EN60529:1991+A1:2000 (IP6X - X8, 5 m / 3 h) EN60529:1991 (IPX8, 50 m / 24 h) |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 16 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Body | PA66 UL94 V2 |
|---|---|
| Impulse withstand category | II |
| Lock nuts | PA66 GF UL94 V0 |
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Ring closure | TPE |
| Contact screw terminals | Brass |
| Screw | Steel |
Varianten
| Art. number | Number of contacts |
|---|---|
| THB.384.P1A | 3 |
