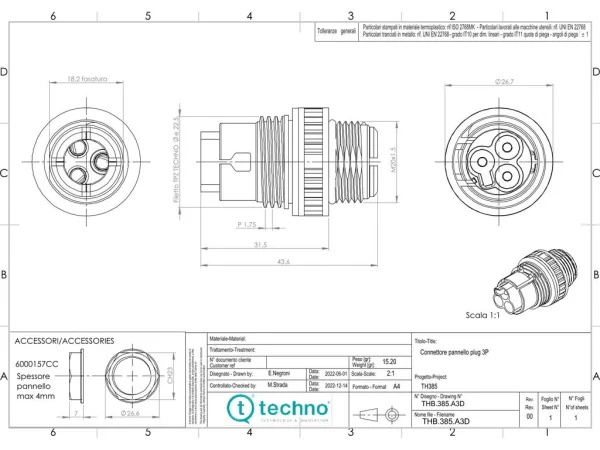

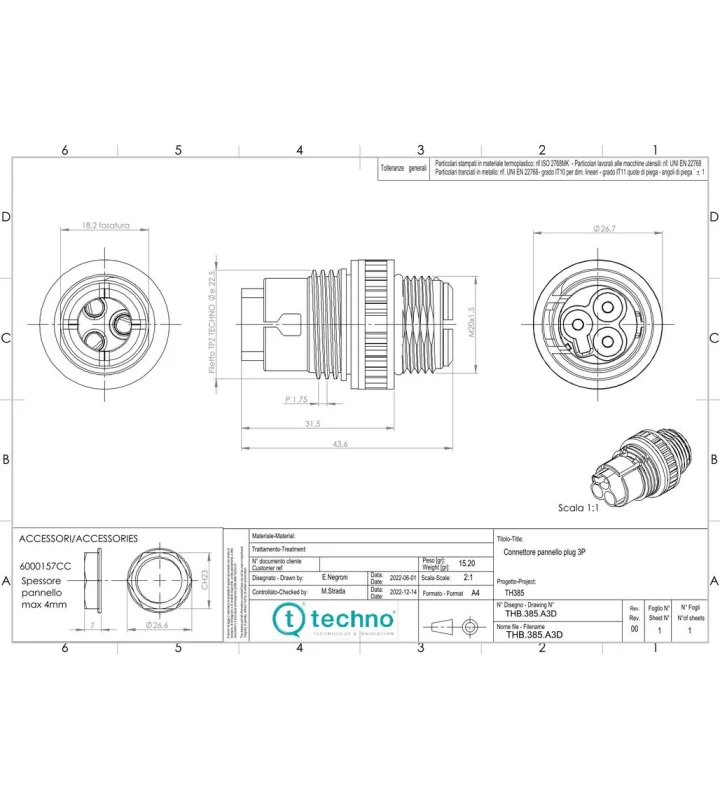

Mini plug connector panel-mounted
IP68, M20
THB.385.A3D
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH385 |
| Number of contacts | 3 |
| Gender | Male |
| Contact terminals | Screw |
| Cable section | 0,5 - 2,5 mm² |
| Protection degree | IP68 |
| Protection degree details | IP68 (5m/3h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Max. temperature | T85 |
| Standards | EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 EN61984:2001 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 16 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Body | PA66 UL94 V2 |
|---|---|
| Impulse withstand category | II |
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Contact screw terminals | Brass |
| Screw | Steel |
Varianten
| Art. number | Number of contacts |
|---|---|
| THB.385.A2D | 2 |
